Model
PEP7036DTBB
Brand
GE
1YR MFG. Warranty
INCLUDED

Shipping & Returns

Ask us a Question

Summary

  • Power Boil on Tri- and Dual-Ring Elements
  • Precision Temperature Control
  • Guided Cooking
  • Glide Touch Controls
  • Easy Clean Surface
  • Synchronized Elements
  • Chef Connect
  • Built-in WiFi
  • Compatible Cooktop with Smart Cookware
  • Keep Warm Setting
  • Control Lock
  • Hot Surface Indicator Lights
  • Fit Guarantee
  • APPEARANCE
    • Color AppearanceBlack
  • FEATURES
    • Control LocationFront Center

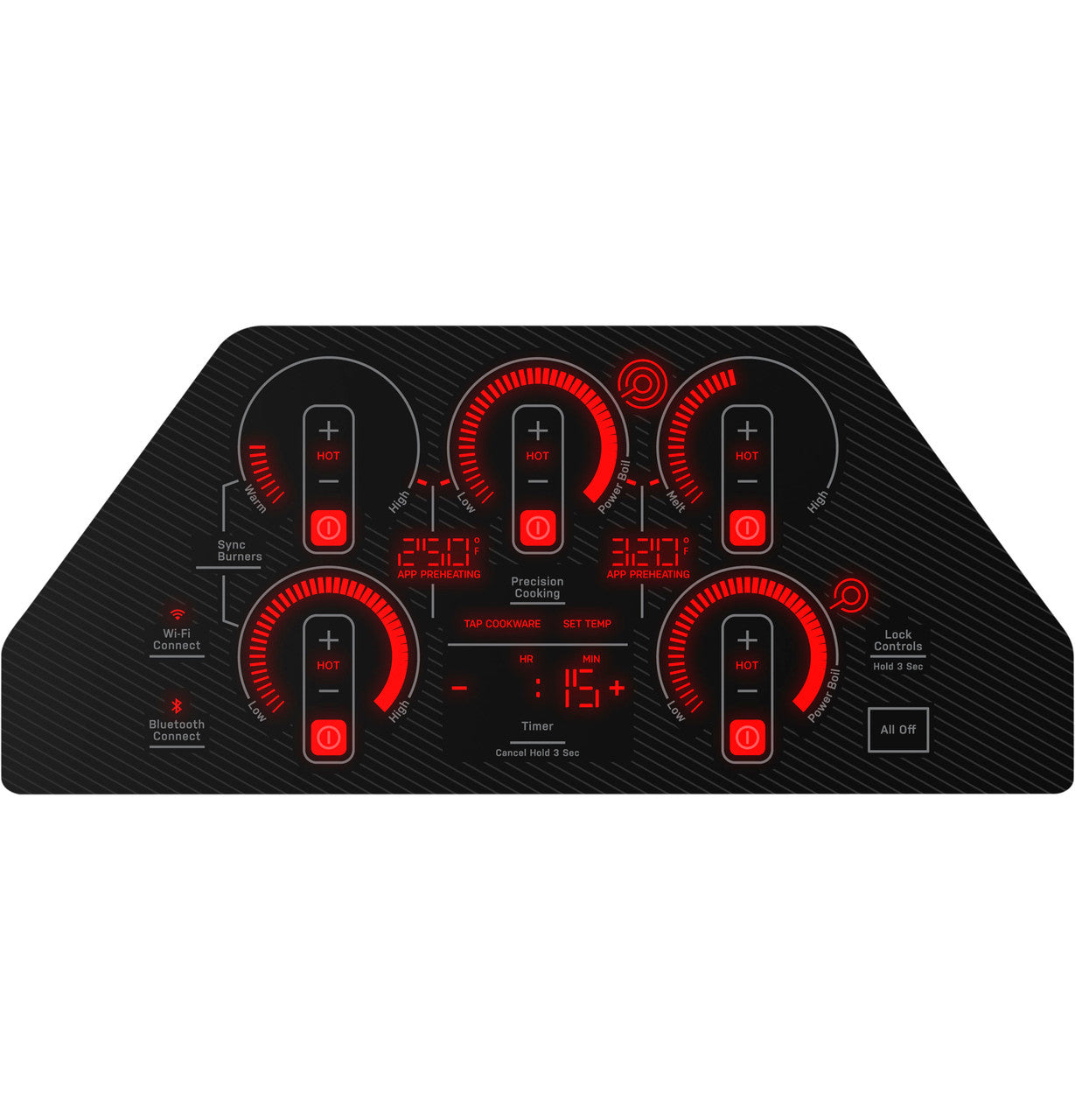

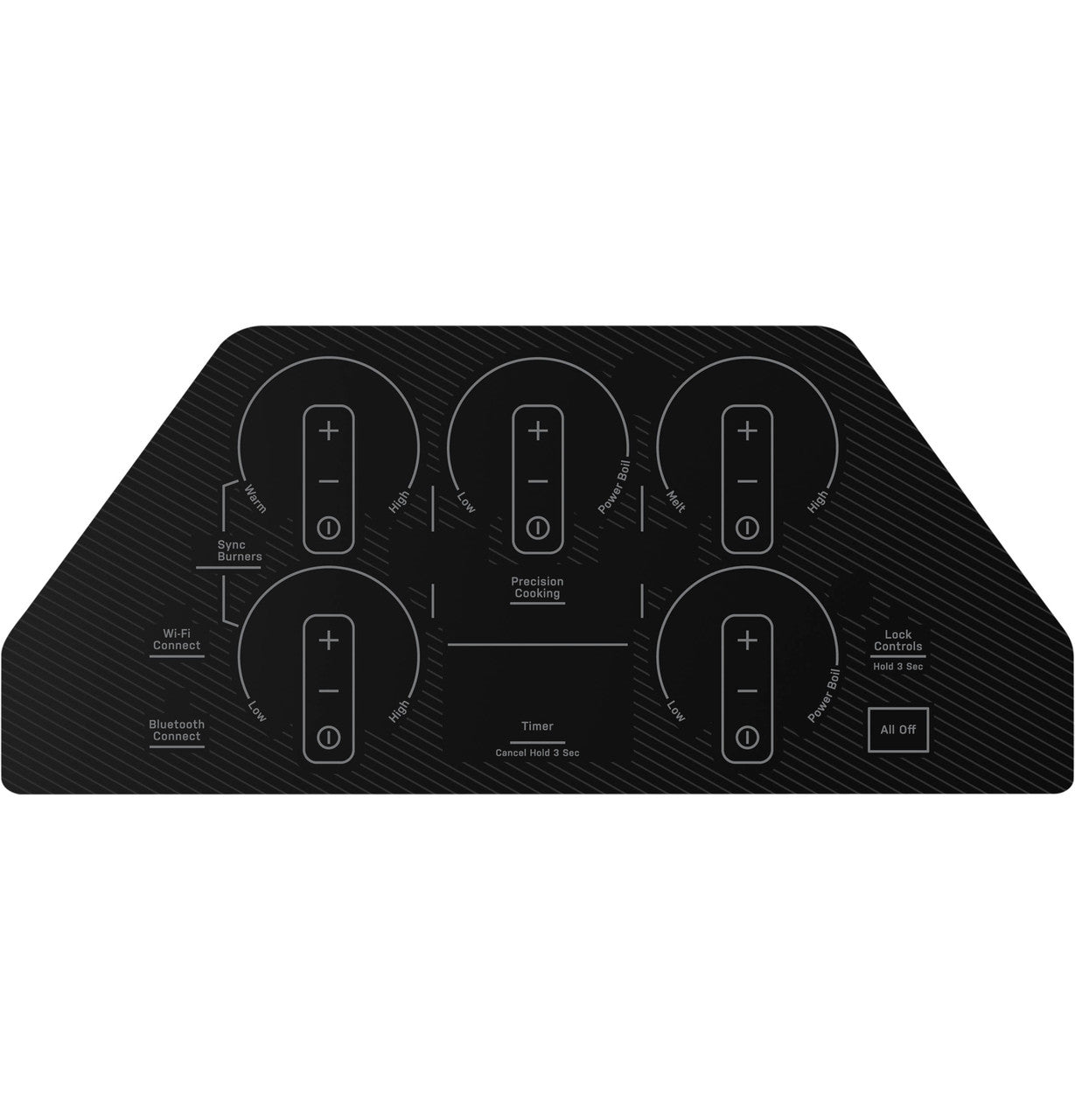

    • Control TypeElectronic Touch Controls
    • Cooktop Burner Type5 RibbonSmoothtop
    • Cooktop Control FeaturesAll-Off ControlControl Lock CapabilityKeep-Warm SettingMelt SettingKitchen timer
    • Cooktop SurfaceBlack Ceramic Glass
    • Cooktop TypeRadiant Smoothtop
    • Element - Center12"/9"/6" 3000W Tri-ring Power Boil
    • Element - Left Front7" 1500W
    • Element - Left Rear7" 1500W (Keep Warm)
    • Element - Right Front8"/5" 2400W Power Boil
    • Element - Right Rear6" 1200W (Melt)
    • Filler trim kitJXTR32B (not included)
    • Fuel TypeElectric
    • Indicator Lights5 Hot SurfaceRedSurface Element "ON"
    • Melt SettingYes
    • Product TypeCooktop
    • WiFi ConnectBuilt-In
    • WiFi Enabled FeaturesInterfaces with SmartHQ AppBluetooth Pairing - Chef Connect with Hoods/OTRs and HestenCue Pans (HMI)Precision cooking with HestanCue Pans (HMI and App)Guided cooking with HestanCue Pans (App)
  • POWER / RATINGS
    • Max. Connected Load (kW) at 208V7.3
    • Max. Connected Load (kW) at 240V9.7
    • Max. Current Draw (Amps) at 208V35.1
    • Max. Current Draw (Amps) at 240V40.4
    • Recommended Circuit Breaker (Amps) at 208V40
    • Recommended Circuit Breaker (Amps) at 240V50
  • WARRANTY
    • Labor WarrantyLimited 1-year entire appliance
    • Parts WarrantyLimited 1-year entire appliance
    • Warranty NotesSee written warranty for full details
  • WEIGHTS & DIMENSIONS
    • Approximate Shipping Weight48 lb
    • Cabinet Width36 in
    • Cooktop Size36 in
    • Cutout Depth (in)19-1/8
    • Cutout Width (in)33-7/8
    • Net Weight42 lb
    • Overall Depth20 3/8 in
    • Overall Height3 3/8 in
    • Overall Width36 1/4 in
