ITEM IS BEING TESTED

This unit is sold. Check for related models on the bottom of the page, or find another Range appliance.

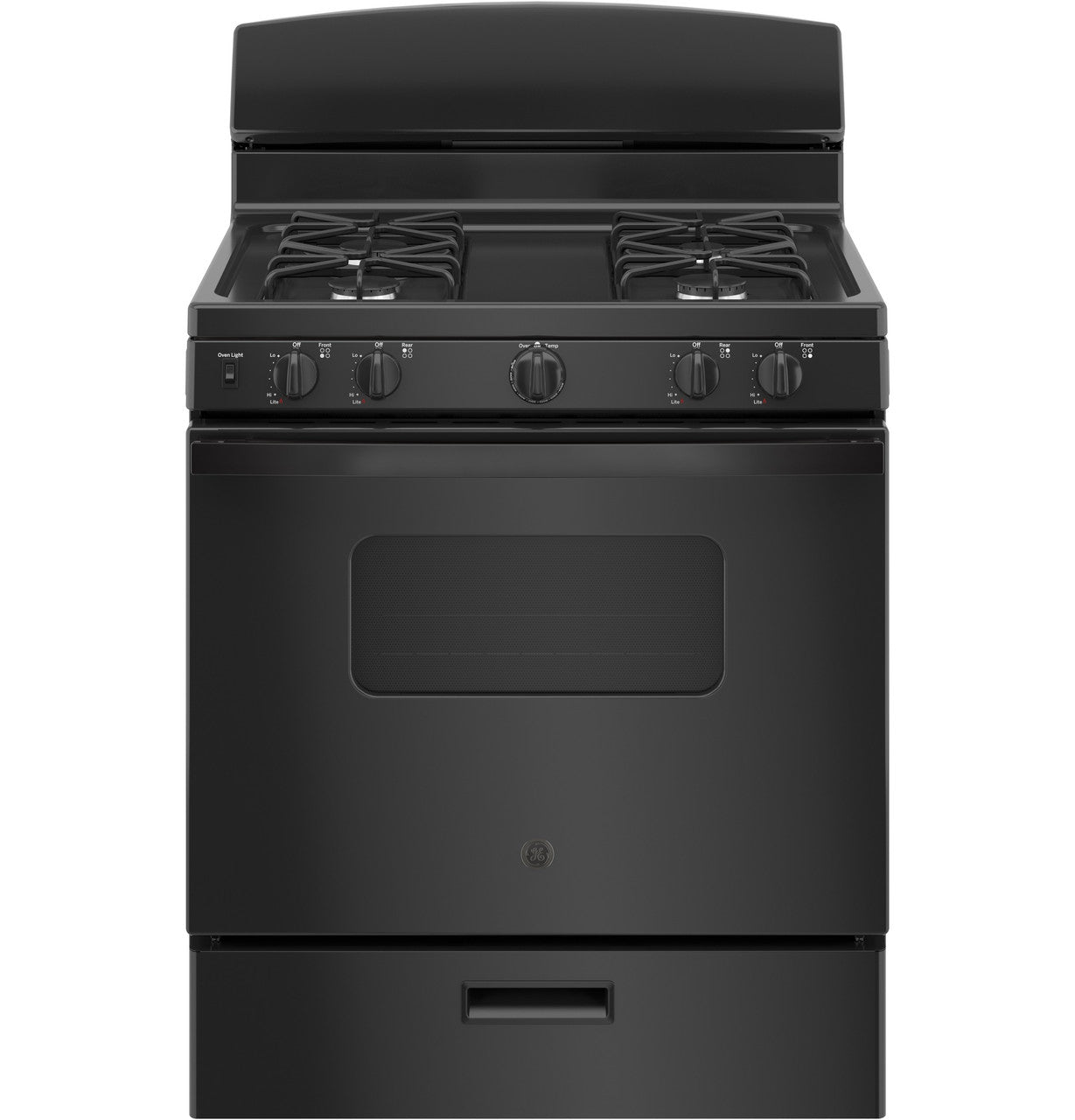

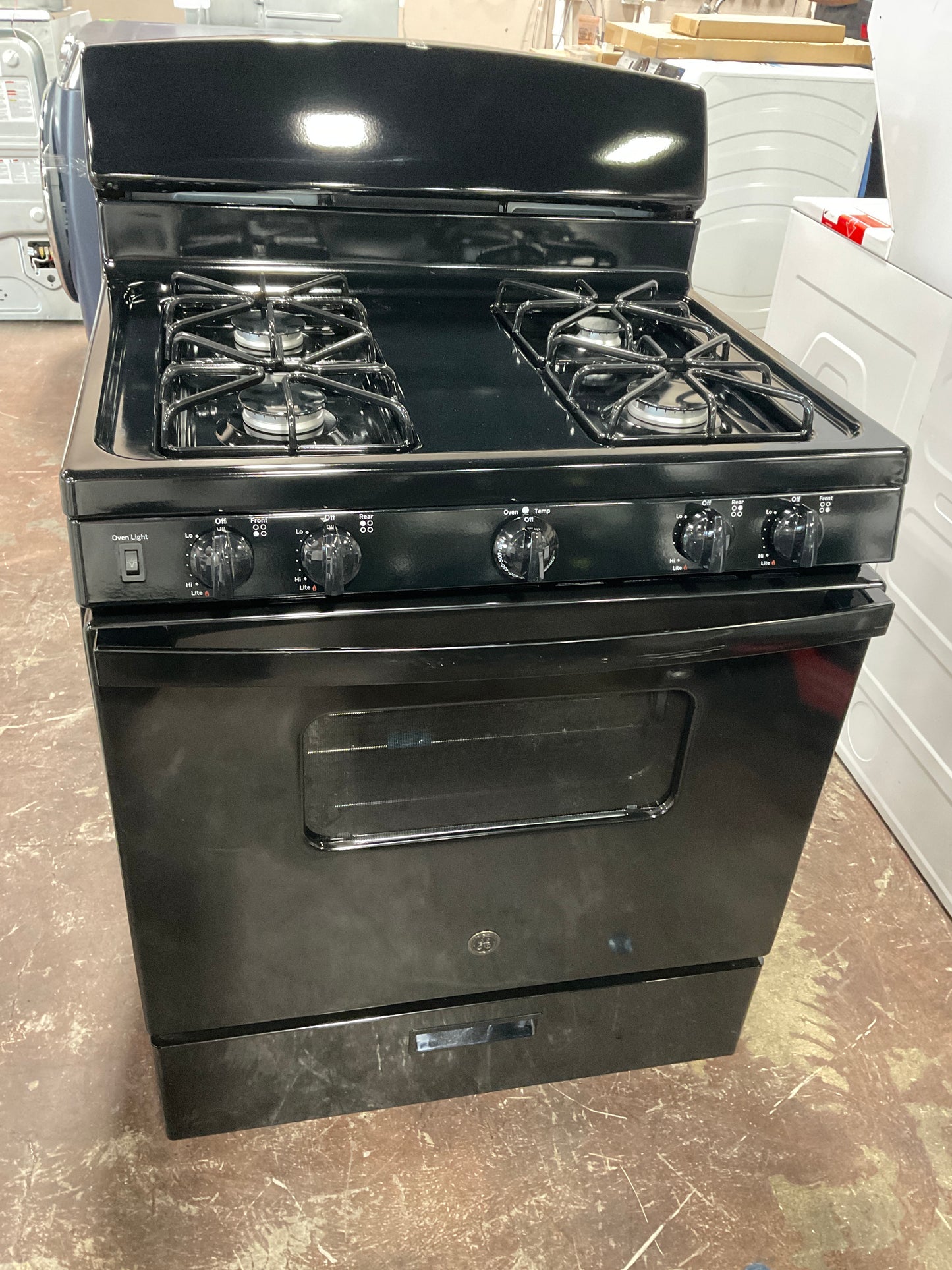

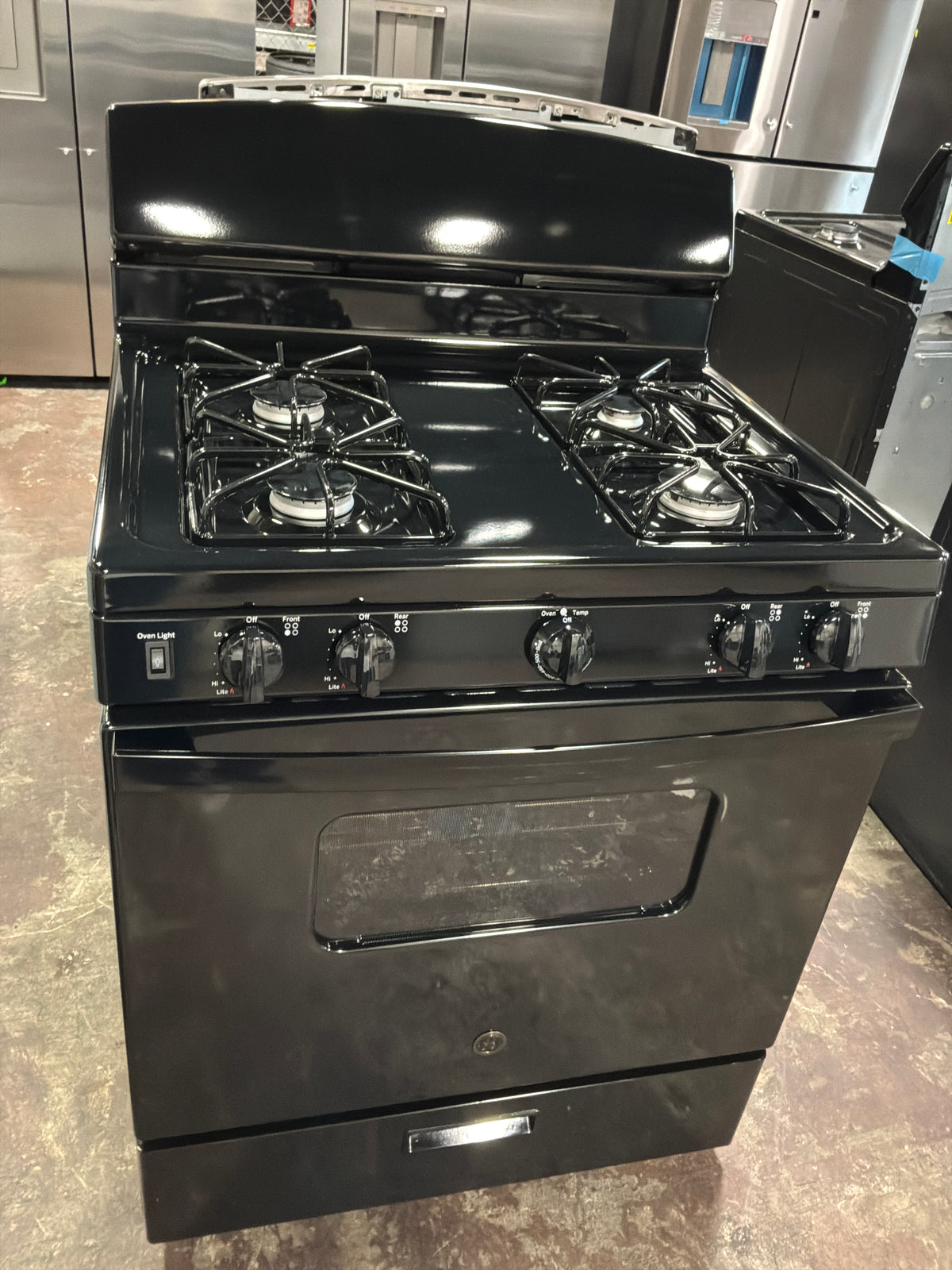

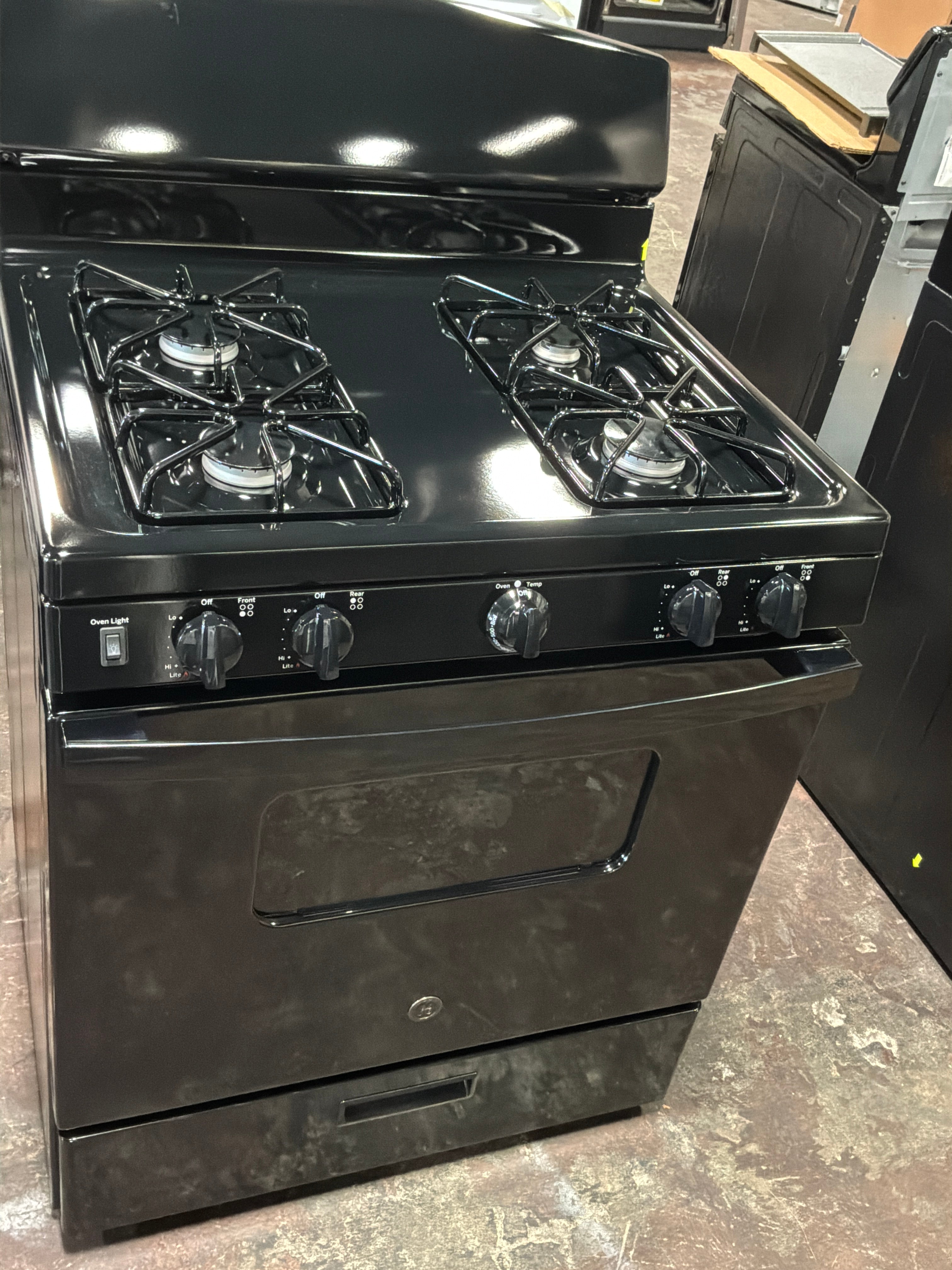

Model
JGBS10DEMBB
Brand
GE
1YR MFG. Warranty
INCLUDED

Shipping & Returns

Ask us a Question

Summary

  • 4.8 cu. ft. oven capacity
  • Sealed cooktop burners
  • Heavy-duty grates
  • Broil option
  • Standard clean oven
  • ACCESSORIES
    • LP Conversion KitIncluded
  • APPEARANCE
    • Color AppearanceBlack
    • Control KnobsGloss Black
    • Cooktop Burner Grate ColorBlack Gloss
    • HandleDesigner Style
    • Oven Door FeaturesOven Window
  • CAPACITY
    • Total Capacity (cubic feet)4.8 cu ft
  • FEATURES
    • ConfigurationRange with Broiler Drawer
    • Ignition SystemElectronic
    • Oven Cleaning TypeStandard Clean

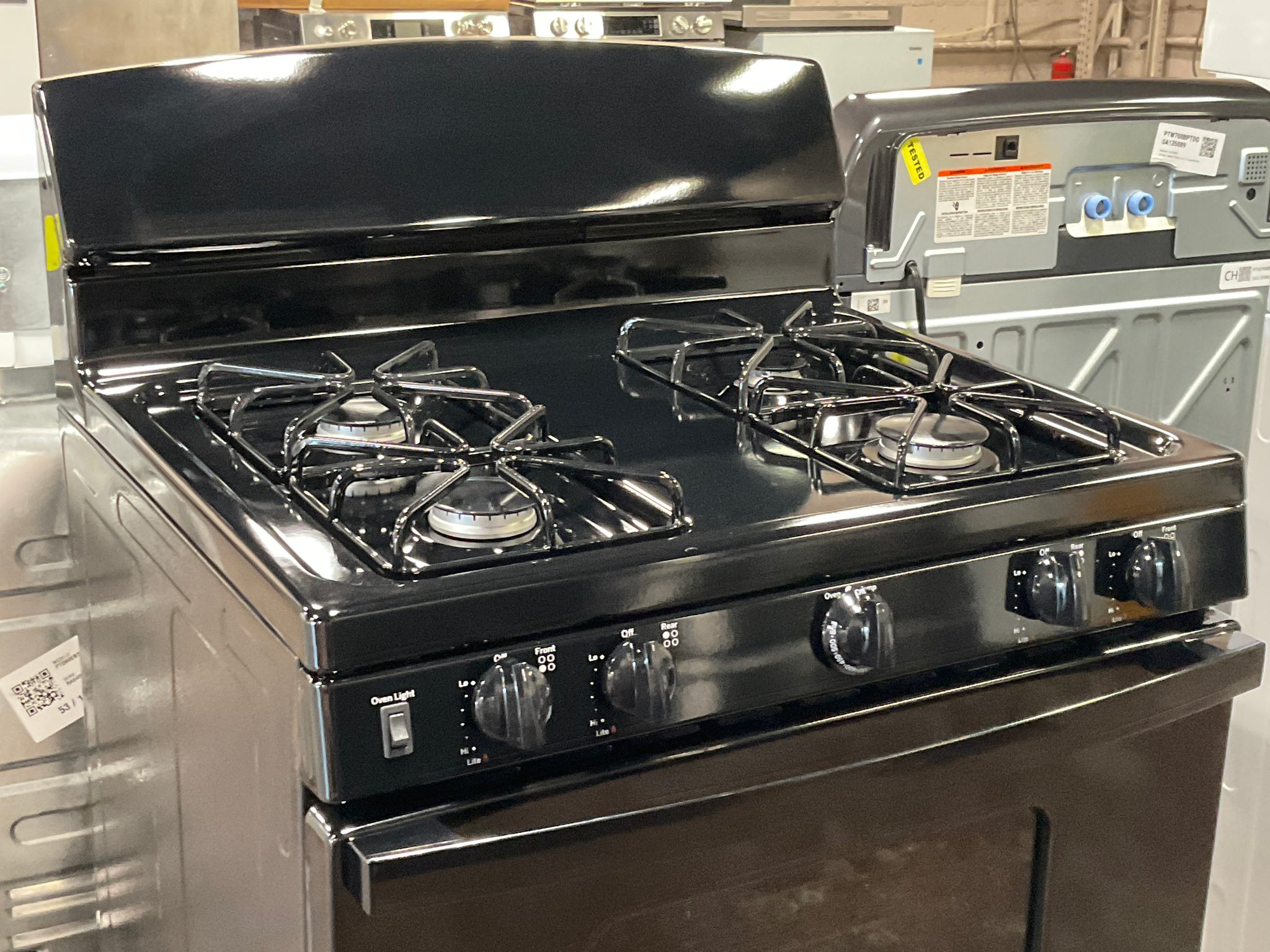

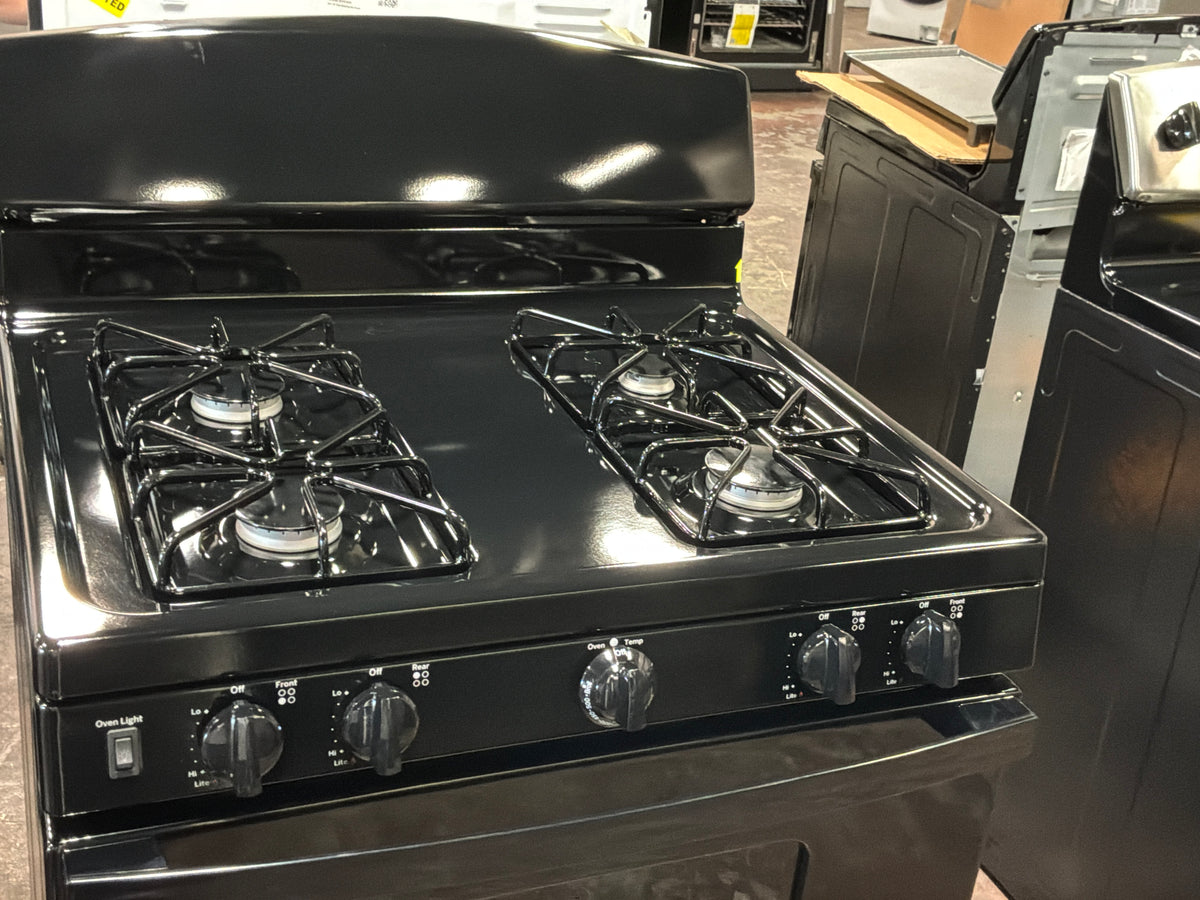

    • Cooktop Burner TypeSealed
    • Cooktop SurfacePorcelain-Enamel
    • Burner - Left Front9,500 BTU
    • Burner - Left Rear9,500 BTU
    • Burner - Right Front13,000 BTU
    • Burner - Right Rear5,000 BTU Precise Simmer
    • Cooktop Burner Grate MaterialHeavy Steel
    • Valves (Degree of Turn)140

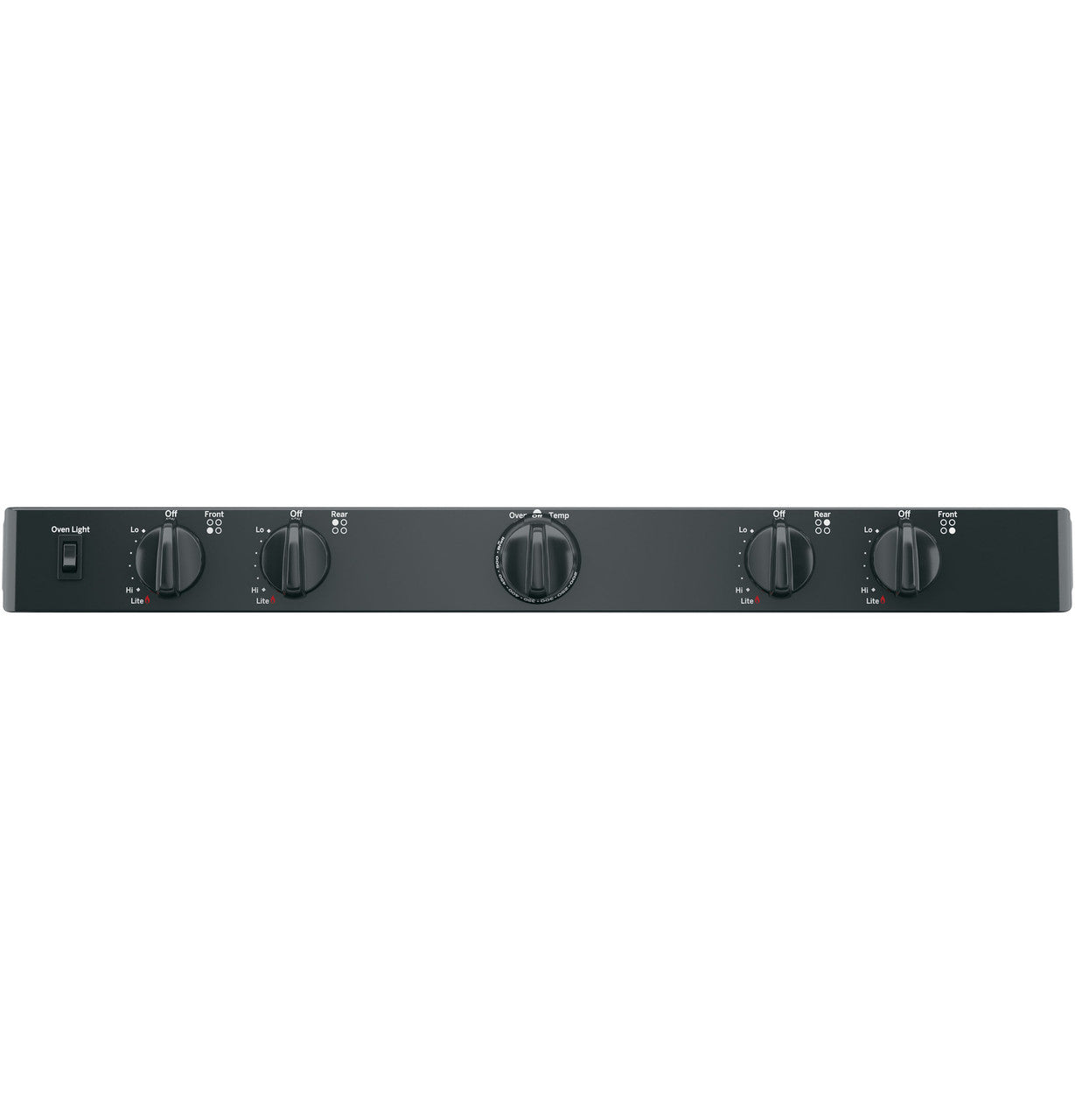

    • Control LocationFront
    • Cooking TechnologyTraditional
    • Product TypeFree-Standing Single Oven
    • Fuel TypeNatural Gas (factory set)

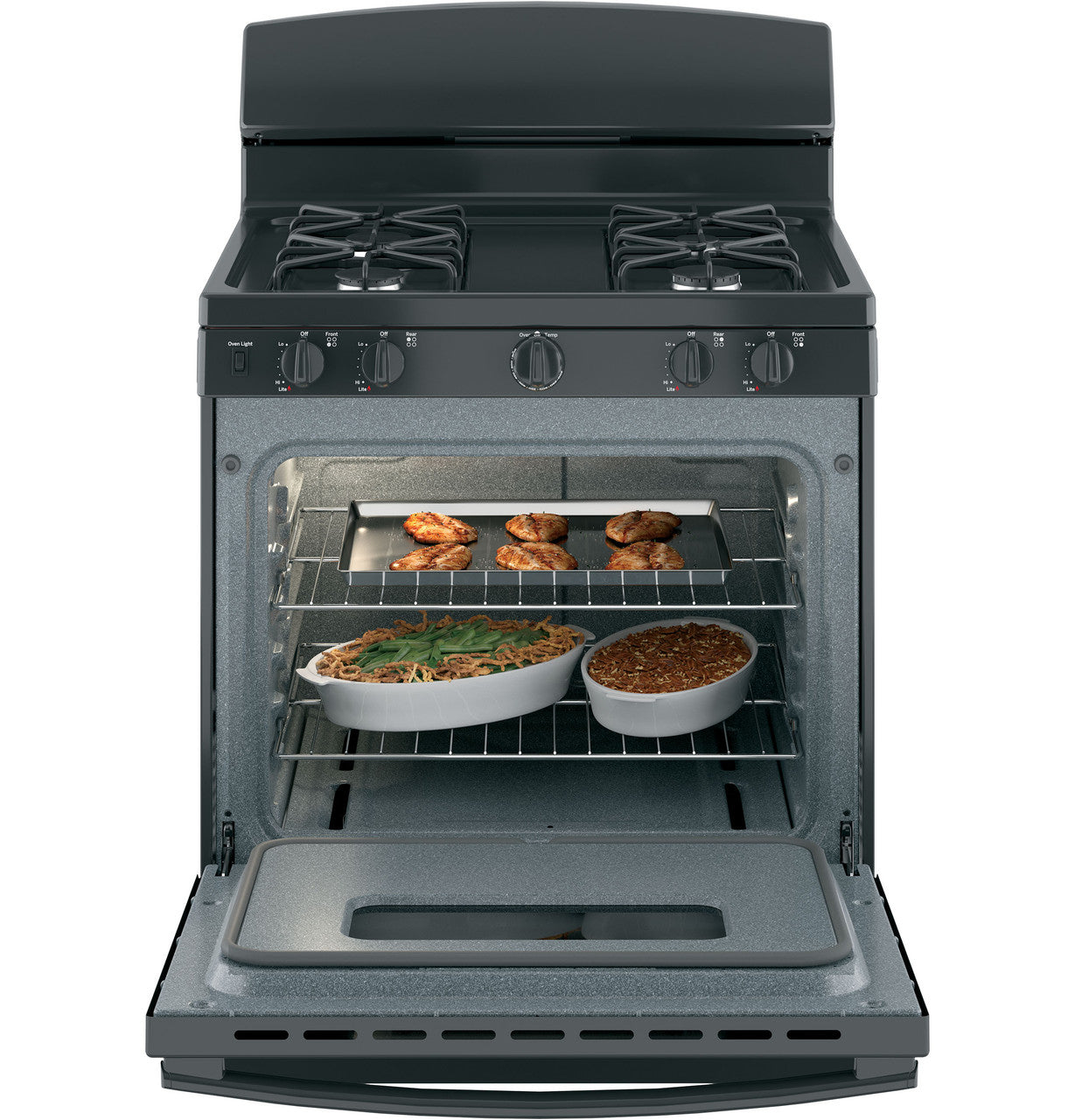

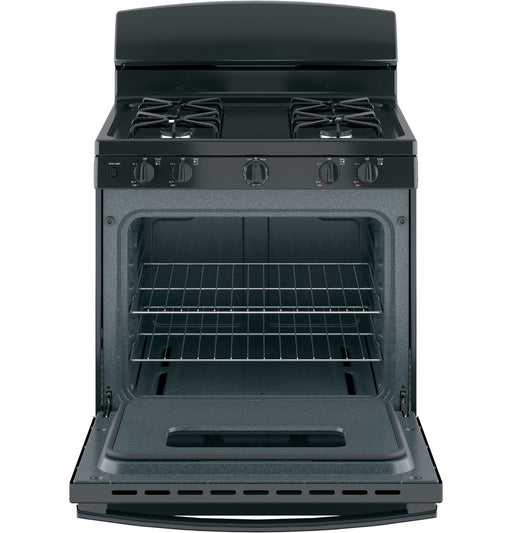

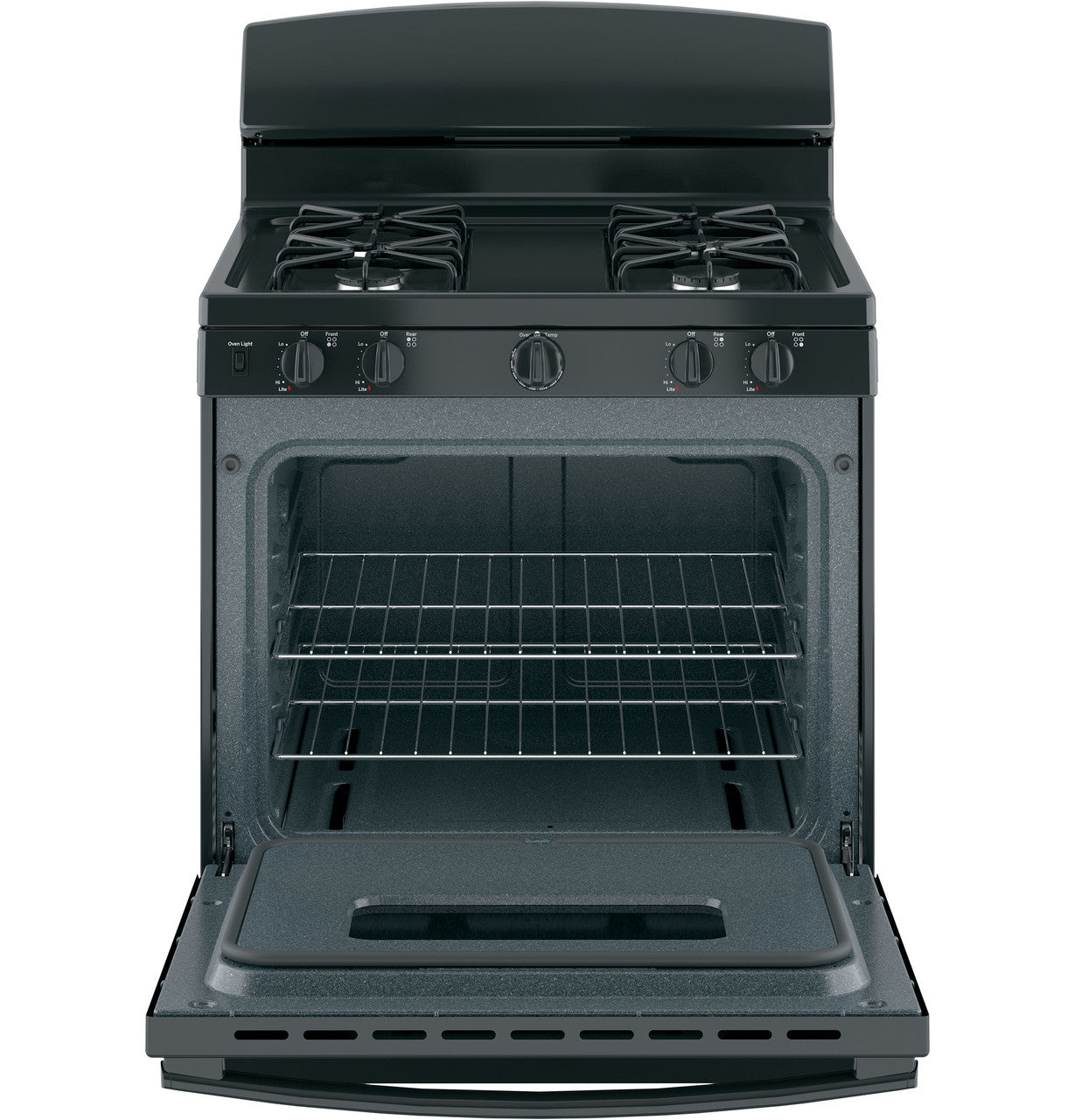

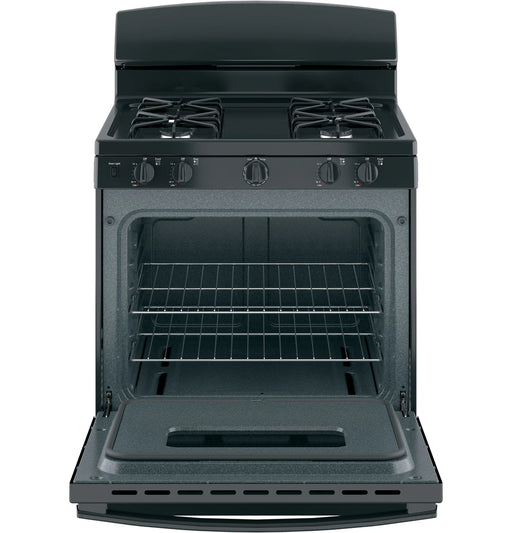

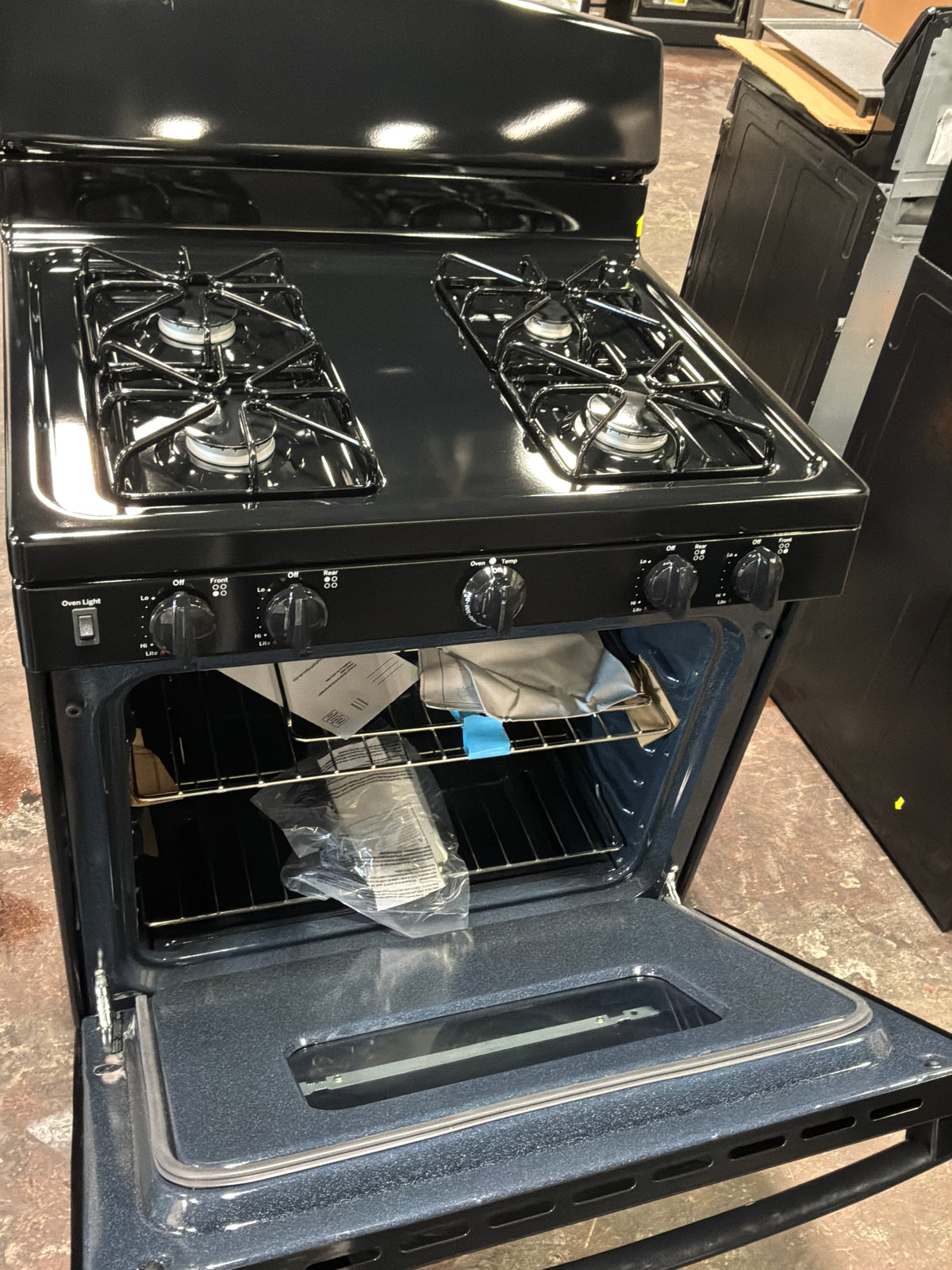

    • Oven Rack Features2 Flat Nickel Racks6 Rack Positions
    • Slide - Out Broiler DrawerDrop Down Door
    • Cooktop TypeStandard Grates
    • Drawer TypeBroiler
    • Oven Interior1 Incandescent Light
    • Sabbath ModeYes
  • POWER / RATINGS
    • Bake/Broiler BTU Rating - LP (000's BTU's)16.0 Bake / 16.0 Broiler
    • Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)18.0 Bake / 18.0 Broiler
    • Top Burner BTU Rating - LP (000's BTU's)(2) 9.5; (1) 12.0; (1) 5.0
    • Top Burner BTU Rating - Nat. Gas (000's BTU's)(1) 12.5; (2) 9.5, (1) 5.0
    • Volts/Hertz/Amps120v; 60Hz; 15A
  • WARRANTY
    • Parts WarrantyLimited 1-year entire appliance
    • Labor WarrantyLimited 1-year entire appliance
    • Warranty NotesSee written warranty for full details
  • WEIGHTS & DIMENSIONS
    • Depth Without Handle26.25 in
    • Cabinet Width30.0 in
    • Net Weight145.0 lb
    • Oven Interior Dimensions (W x H x D) (in.)24 x 18-1/2 x 19
    • Overall Depth28.75 in
    • Overall Height46.25 in
    • Height to Cooking Surface (in.)36 - 36 1/2
    • Overall Width30.0 in
    • Depth with Door Open46.25 in
