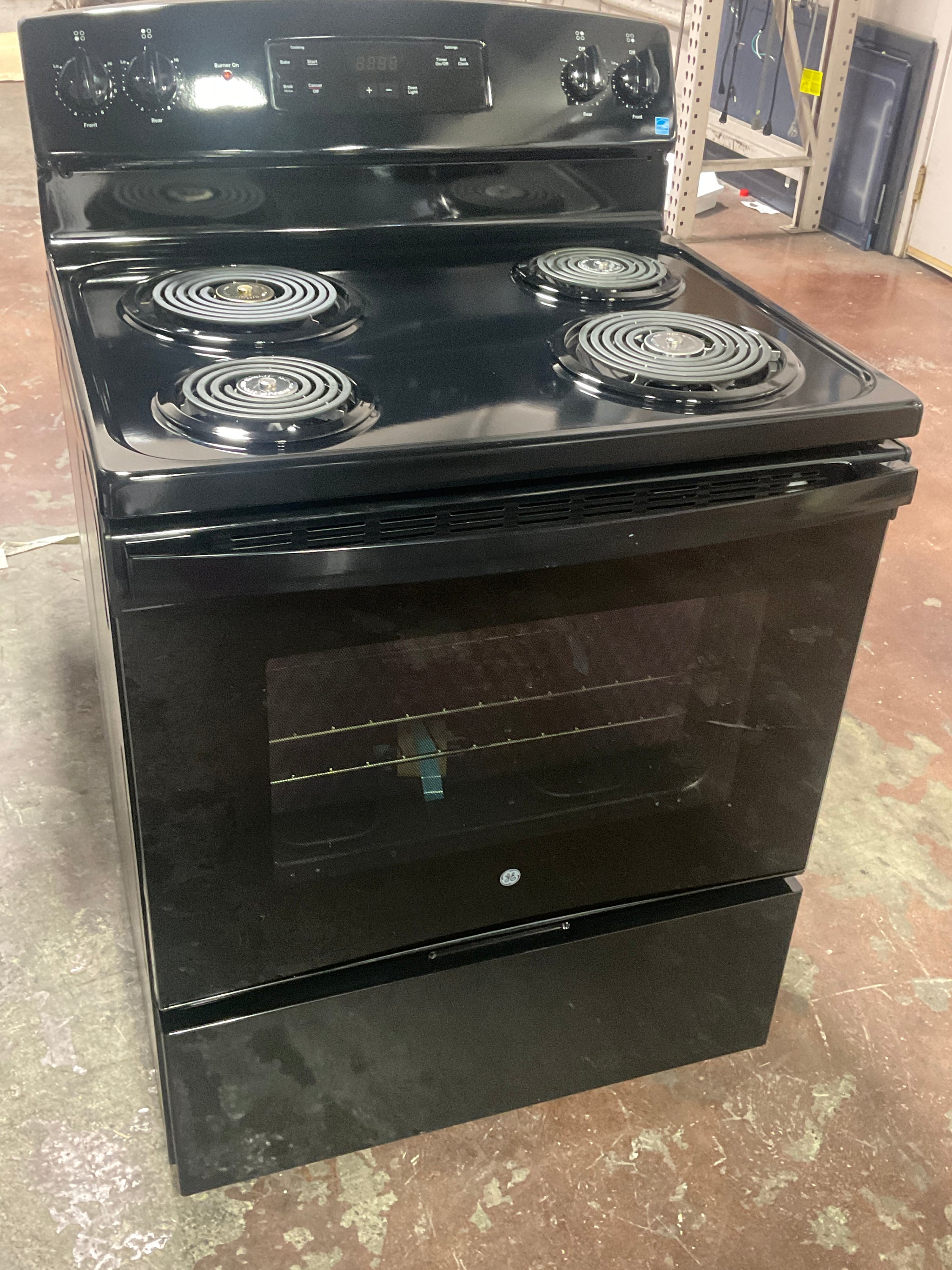

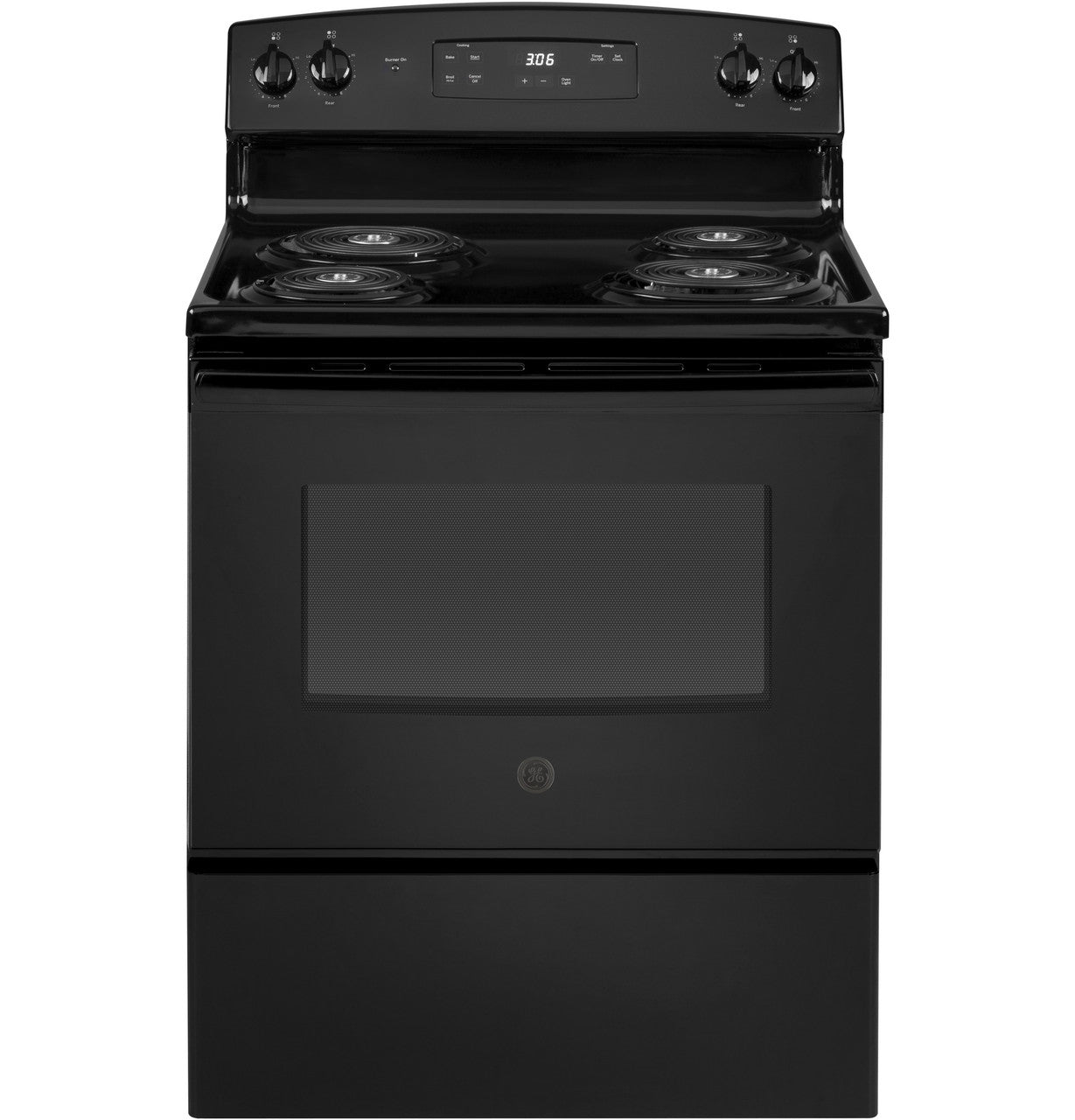

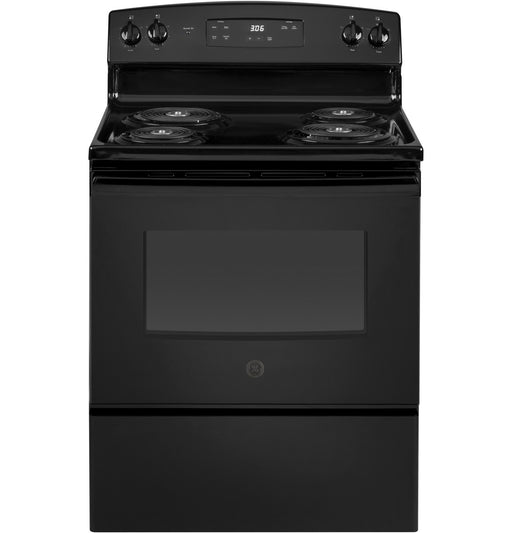

Model

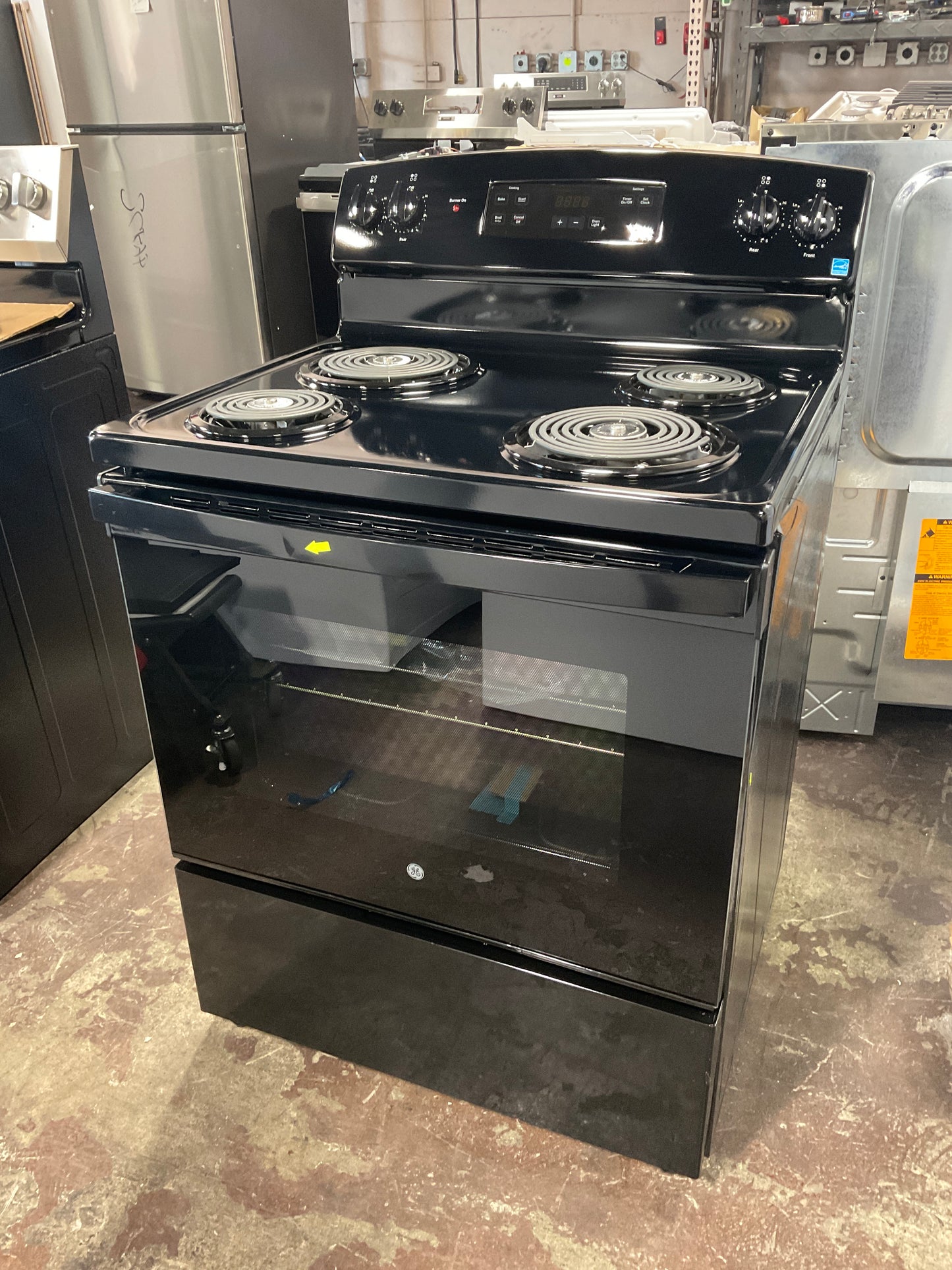

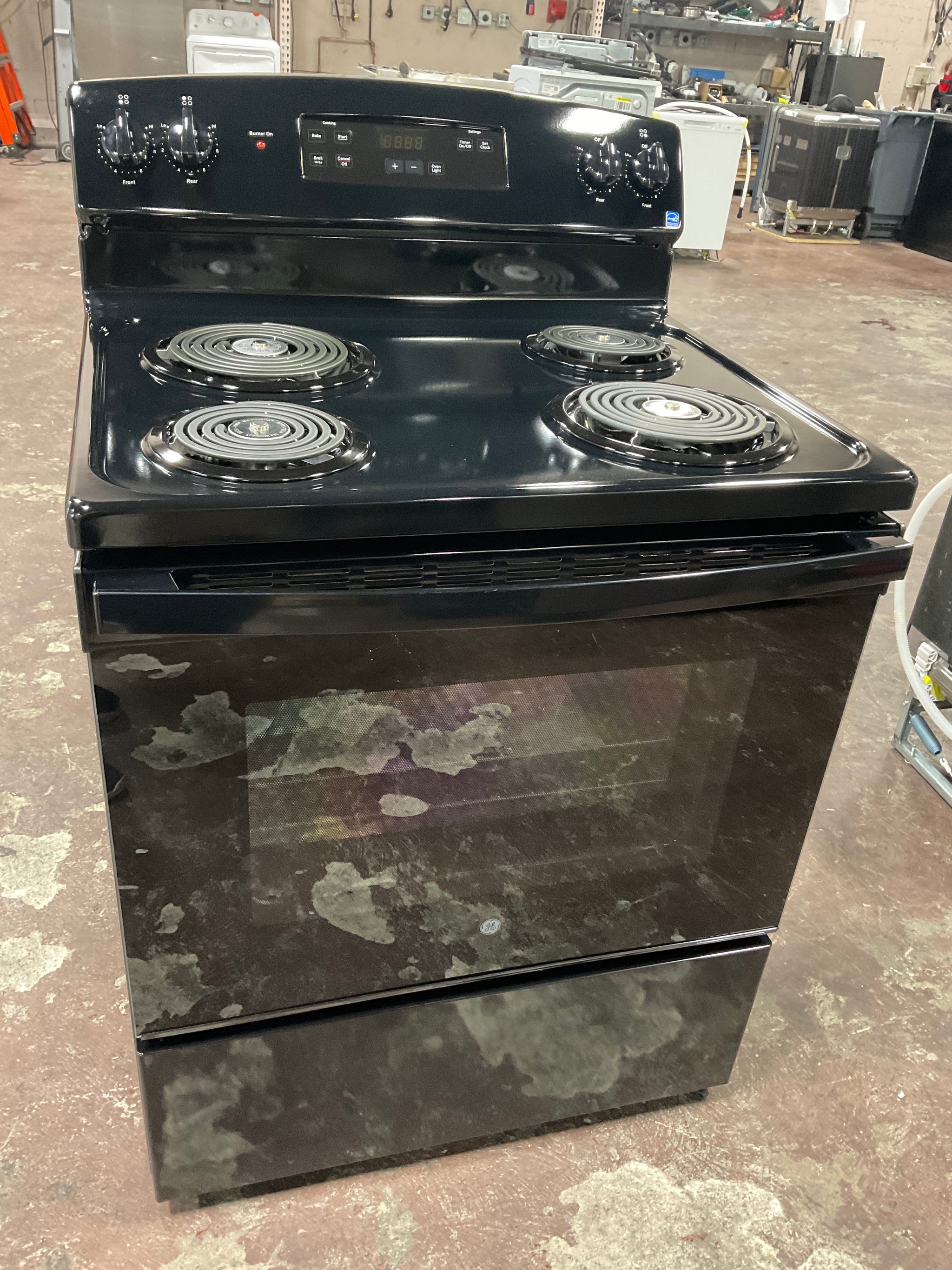

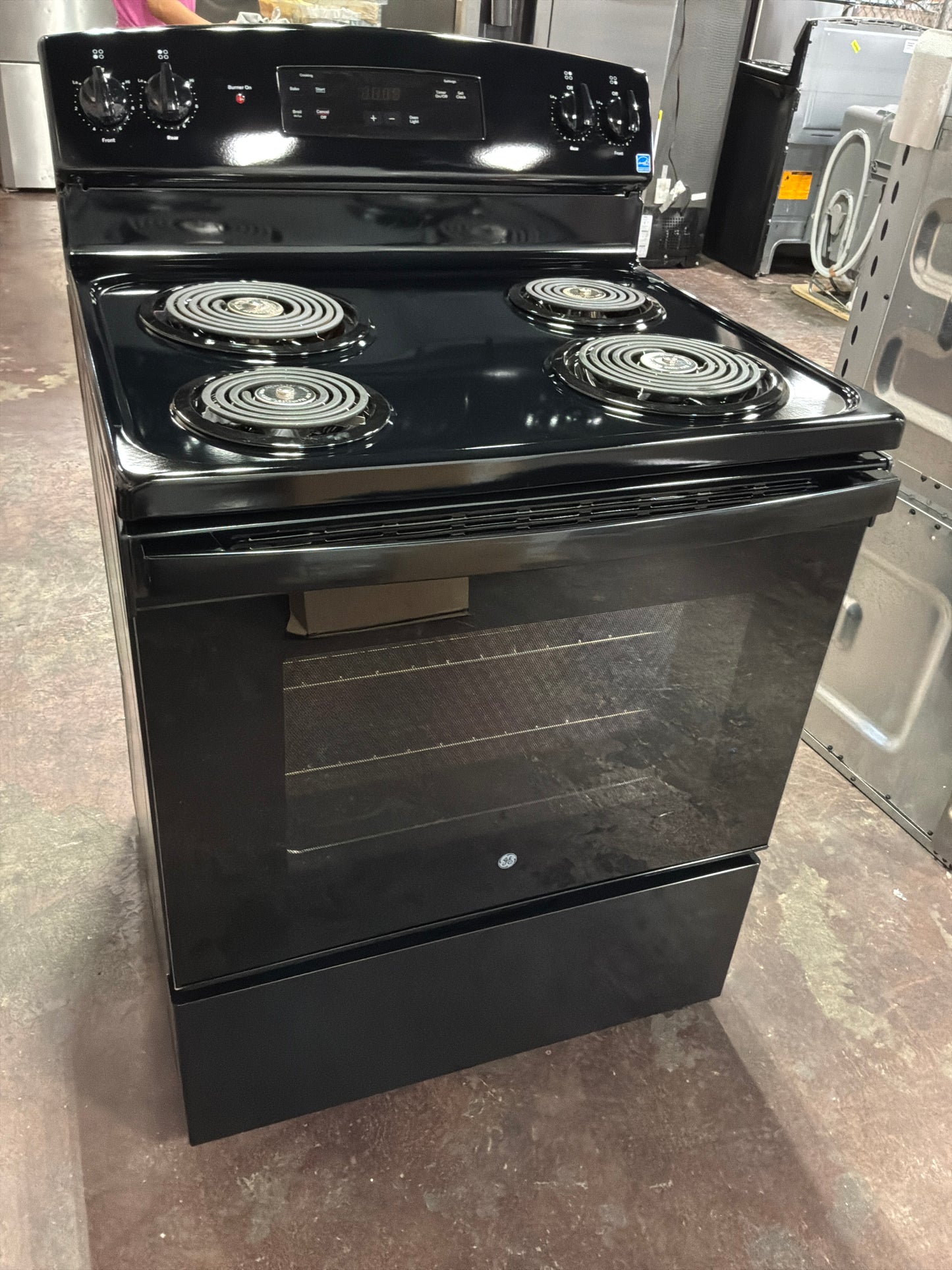

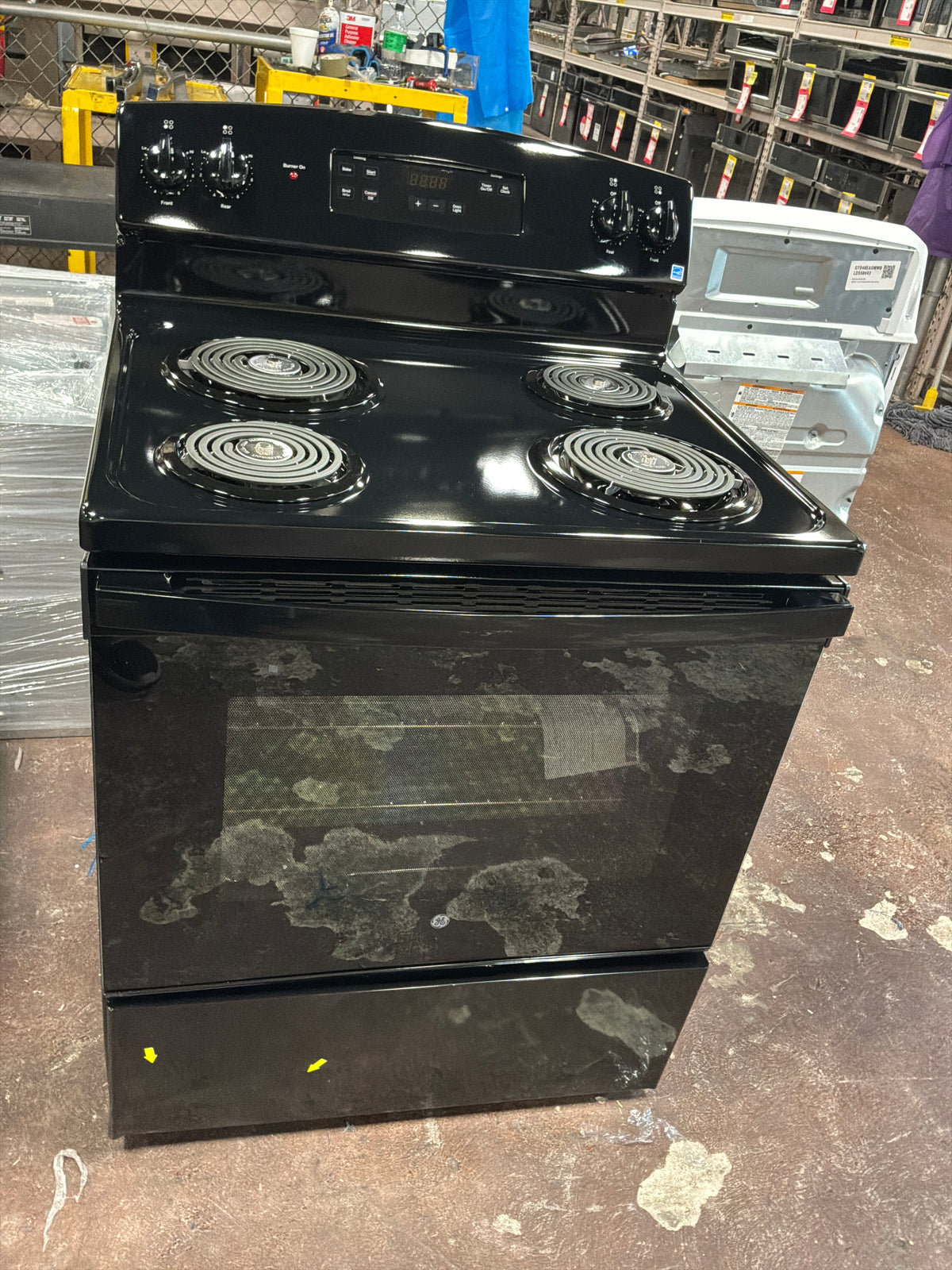

JBS360DMBB
Brand
GE
1YR MFG. Warranty
INCLUDED
YR Additional Warranty
Model Inventory Breakdown

Summary

  • 5.0 cu. ft. oven capacity
  • Standard clean oven
  • Sensi-temp technology
  • Dimensions: 47 H x 30 W x 28 3/4 D
  • APPEARANCE
    • Color AppearanceBlack
    • Control KnobsColor-Matched
    • HandleDesigner Style
    • Handle ColorBlack
    • Oven Door FeaturesBig View Oven WindowGlass Door
    • Textured Steel Side PanelsYes
  • CAPACITY
    • Total Capacity (cubic feet)5.00 cu ft
  • FEATURES
    • ConfigurationRange with Storage Drawer

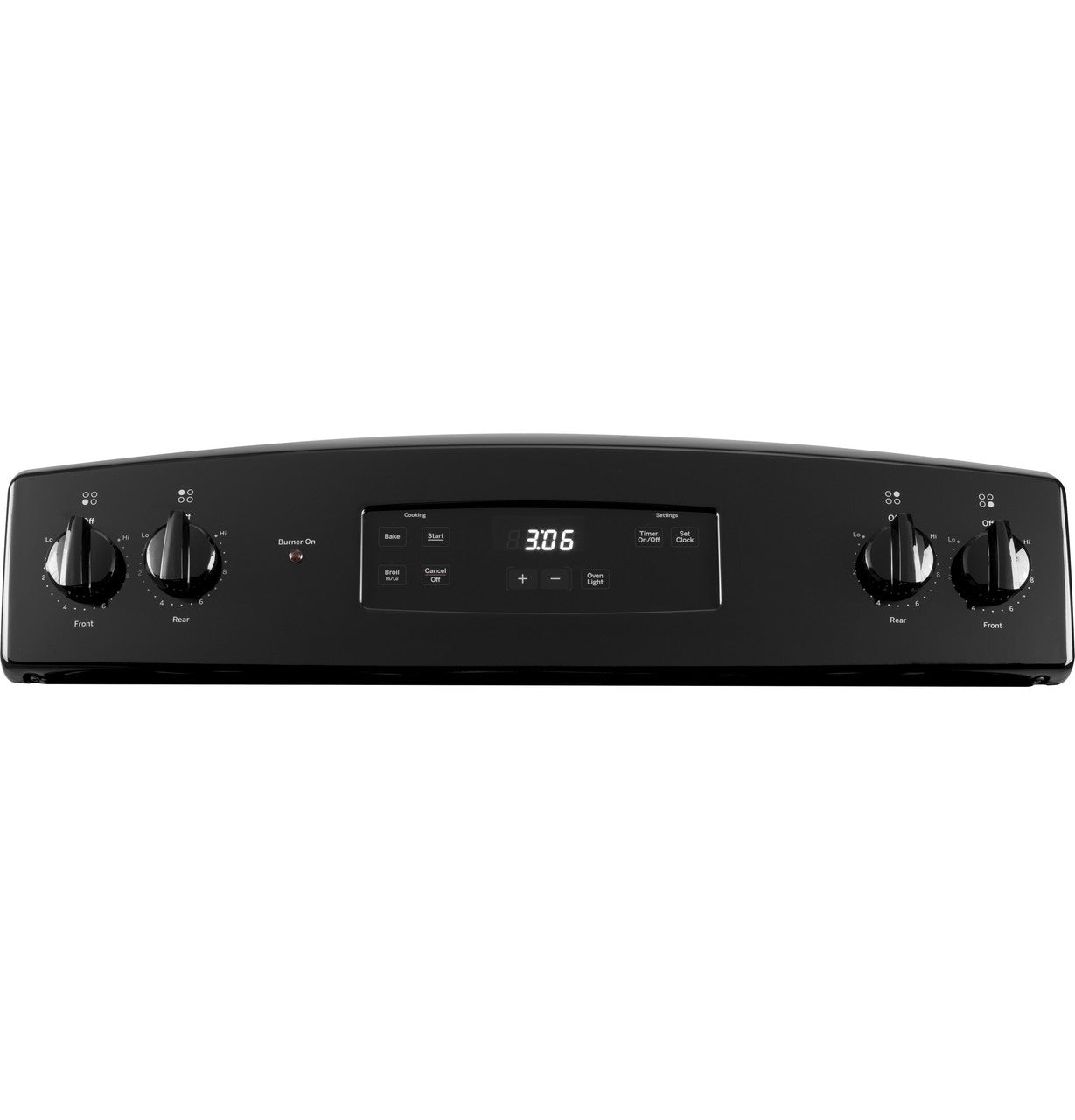

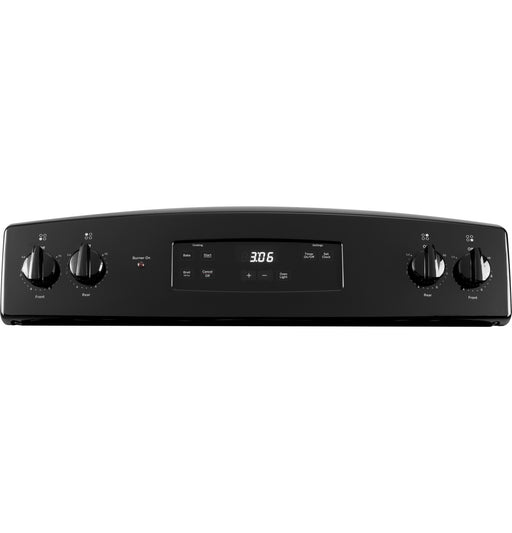

    • Control LocationBacksplash
    • Control TypeDigital Temperature DisplayElectronicTouchpads
    • Cooking SystemTraditional
    • Cooking TechnologyTraditional

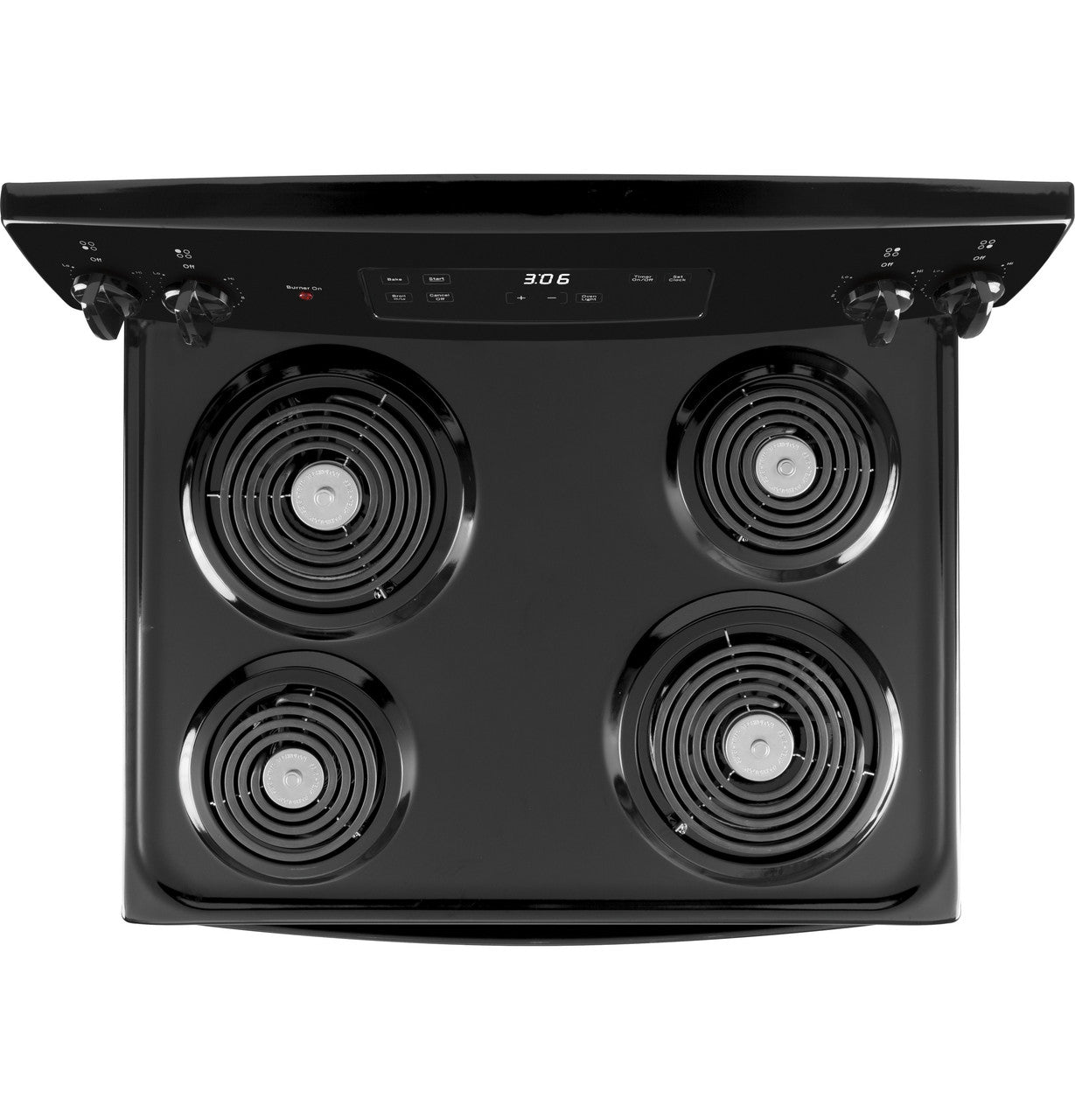

    • Cooktop Burner TypeCoil
    • Cooktop SurfaceOne-Piece UpsweptPorcelain-Enamel
    • Cooktop TypeCoil
    • Drawer TypeStorage
    • Element - Left Front6" 1250W Temp Limiting Coil
    • Element - Left Rear8" 2400W Temp Limiting Coil
    • Element - Right Front8" 2400W Temp Limiting Coil
    • Element - Right Rear6" 1250W Temp Limiting Coil
    • Fuel TypeElectric
    • Heating Element "ON" Indicator LightYes
    • Lift-Up Cooktop With Support RodsYes
    • OU CertifiedNo
    • Oven Cleaning TypeStandard Clean
    • Oven Control FeaturesAudible Preheat SignalAuto Oven Shut-Off with OverrideControl Lock CapabilityElectronic Clock & Kitchen TimerHi / Low BroilOven "ON" Light
    • Oven Features4-Pass Bake Element4-Pass Broil Element
    • Oven Interior1 Incandescent Light

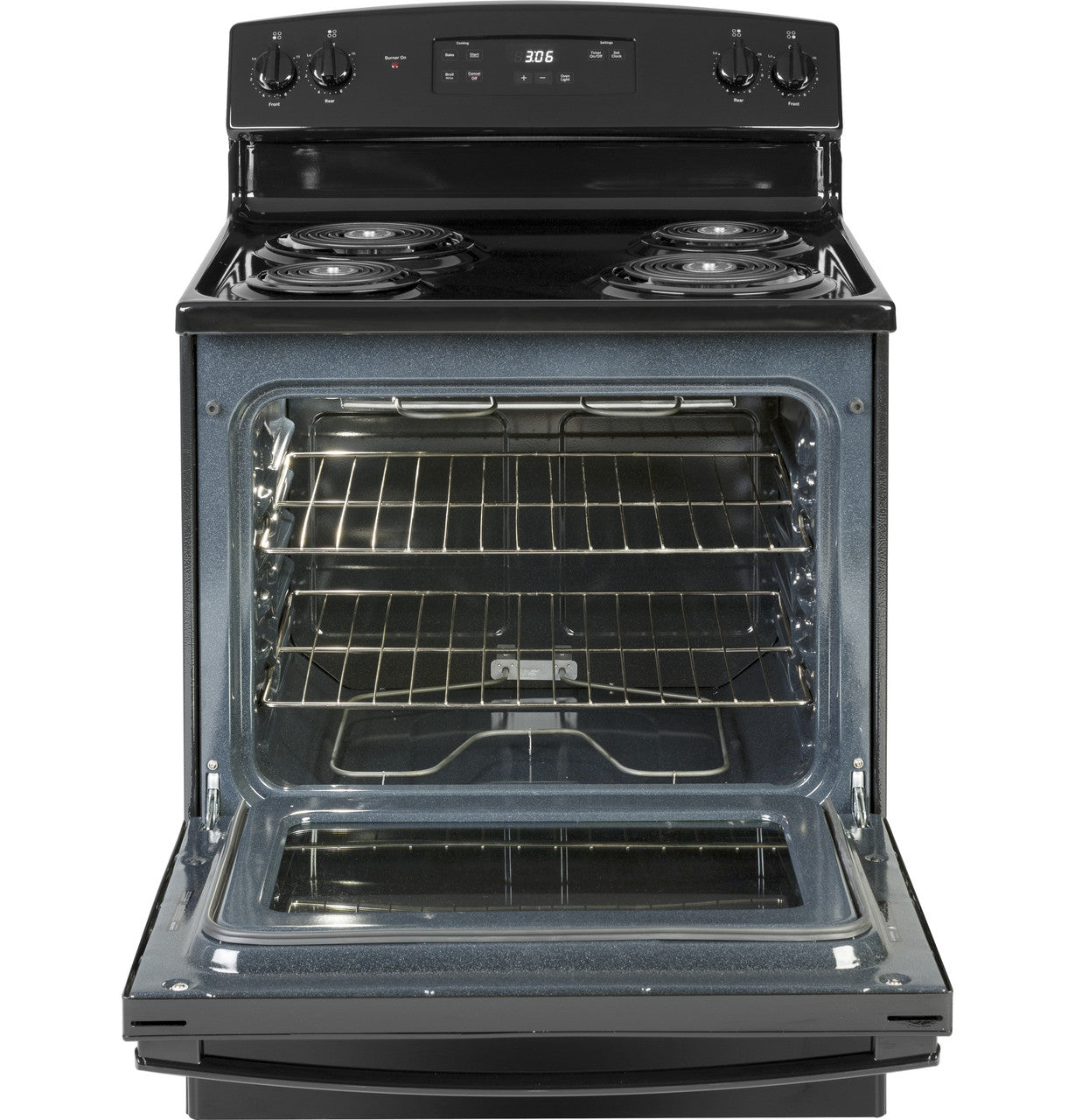

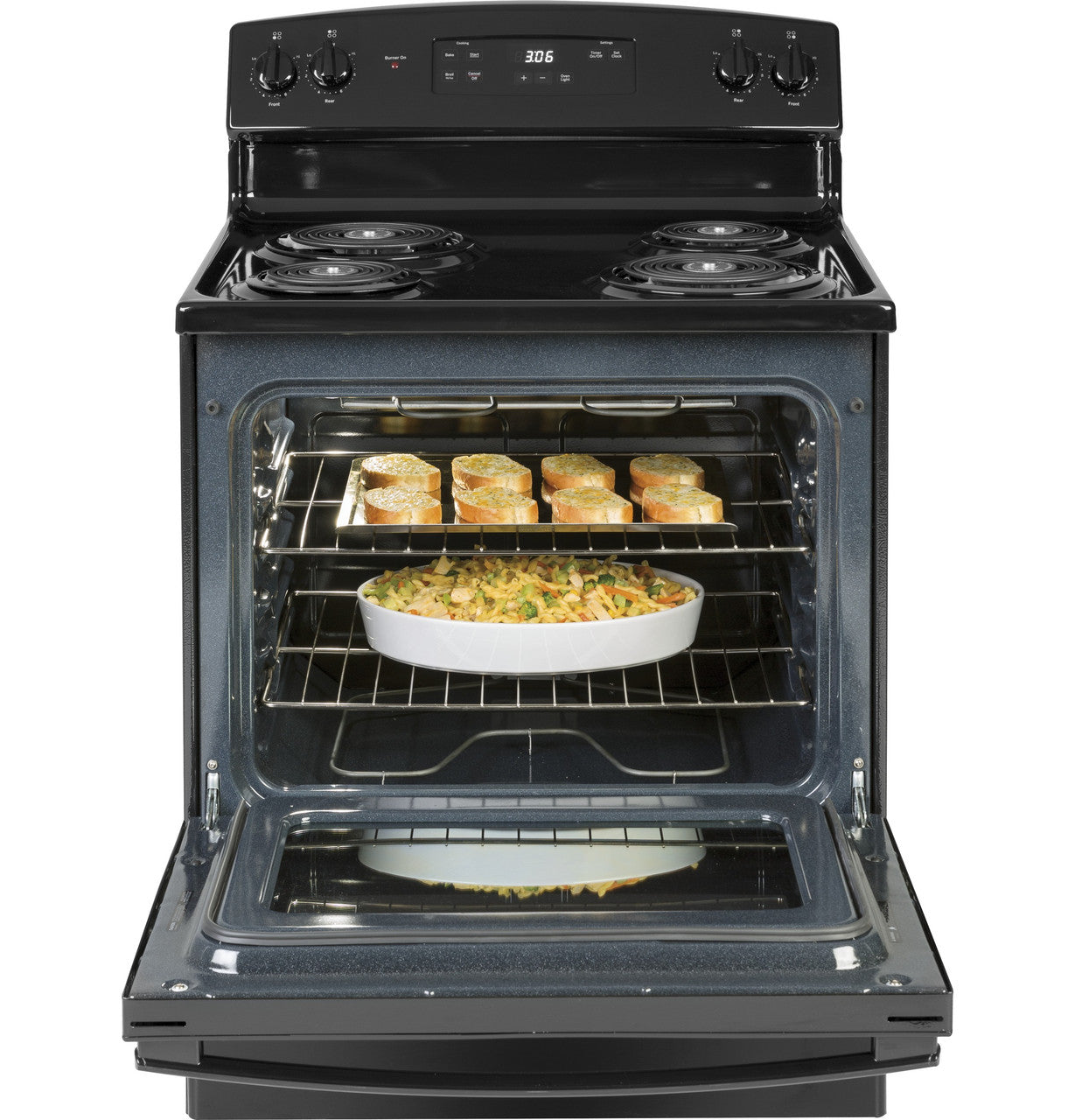

    • Oven Rack Features2 Oven Racks
    • Oven Rack Positions (Single or Upper/Lower)6
    • Product TypeFree-Standing Single Oven
    • Removable One-Piece Drip BowlsBlack Porcelain Enameled
    • Sabbath ModeYes
    • Storage Drawer FeaturesRemovable Full-Width
  • POWER / RATINGS
    • Amp Rating at 208V40
    • Amp Rating at 240V40
    • Bake Wattage2585W
    • Broiler Wattage3410W
    • KW Rating at 208V7.6
    • KW Rating at 240V10.2
  • WARRANTY
    • Labor WarrantyLimited 1-year entire appliance
    • Parts WarrantyLimited 1-year entire appliance
    • Warranty NotesSee written warranty for full details
  • WEIGHTS & DIMENSIONS
    • Approximate Shipping Weight162 lb
    • Cabinet Width30 in
    • Depth with Door Open46 1/4 in
    • Depth Without Handle26 1/4 in
    • Height to Cooking Surface (in.)36 - 36 1/2
    • Net Weight142 lb
    • Oven Interior Dimensions (W x H x D) (in.)23-3/4 x 19 x 18-1/2
    • Overall Depth28 3/4 in
    • Overall Height47 in
    • Overall Width30 in
