Dimensions and Volume
- Height2 5/8"
- Width30 5/8"
- Depth21 3/8"
Display
- Control LocationRight
General Specifications
- Frigidaire Fit PromiseYes
- Product Weight29.45 lbs
- Prop 65 LabelNo
- Warranty - Labor1 Year
- Warranty - Parts1 Year
Cooktop Performance
- Right Front Element Burner Size (Small)6"
- Right Front Element Burner Size (Large)9"
- Right Rear Element Burner Size6"
- Left Front Element Burner Size6"
- Left Rear Element Burner Size6"
- Right Front Element Burner (Small)1,600 Watts
- Right Front Element Burner (Large)3,000 Watts
- Right Rear Element Burner1,200 Watts
- Left Front Element Burner1,200 Watts
- Left Rear Element Burner2,500 Watts
Controls
- Sabbath ModeNo
Electrical Specifications
- Amps @ 240 Volts32.9 Amps
- Connected Load @ 240V7.9 kW
- Minimum Circuit Required40 Amps
- Voltage Rating240 V
Installation
- Installed Over a Wall OvenYes
- Power Supply Connection LocationRight Center
Cooktop
- Cooking Surface TypeSmooth
- Hot-Surface Indicator LightYes
Exterior

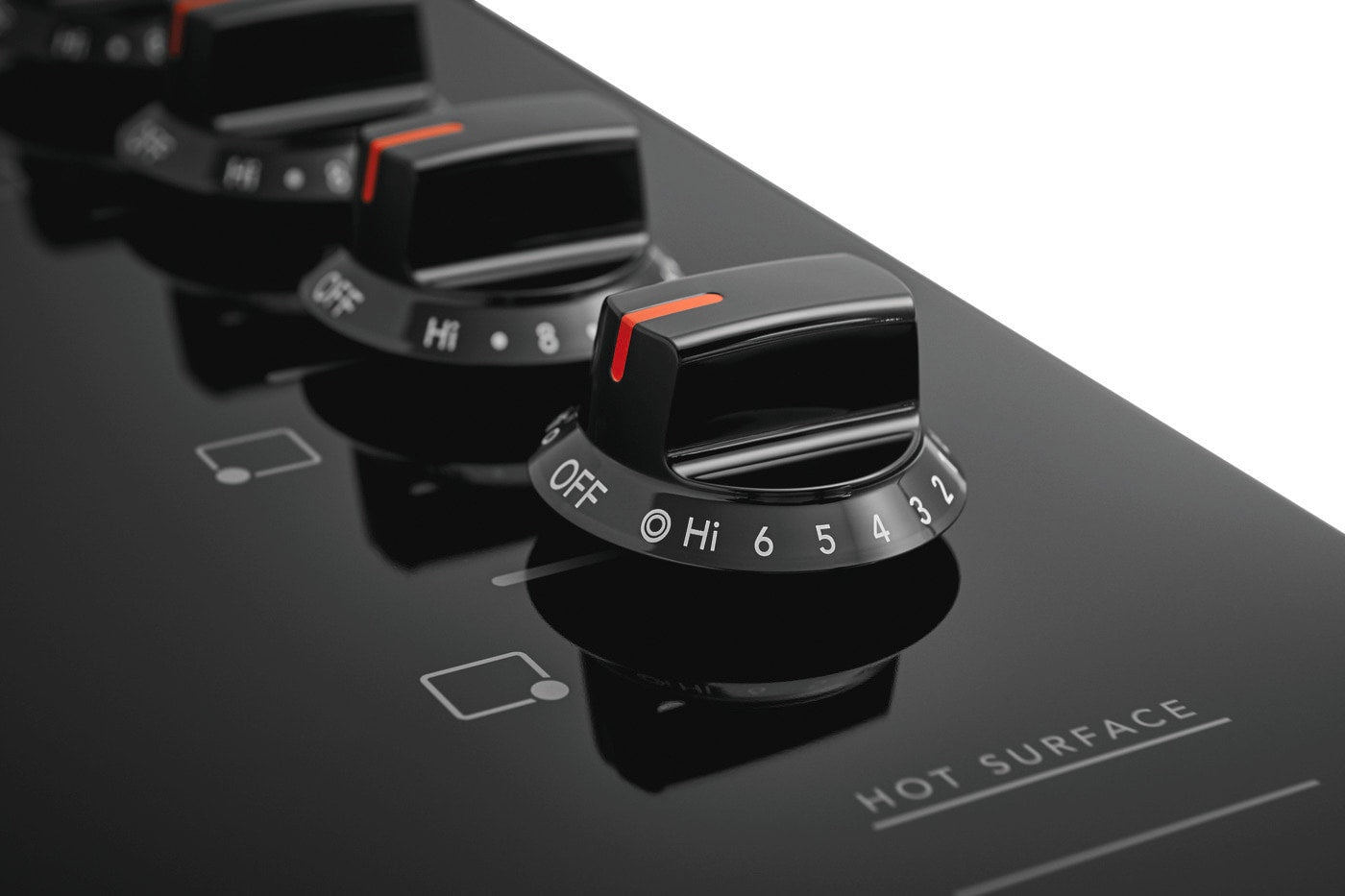

- Knob ColorBlack
- Knob MaterialPlastic
Certifications and Approvals
- ADA CompliantNo
- CSA ListedYes
- UL ListedYes
- ETL ListedNo
