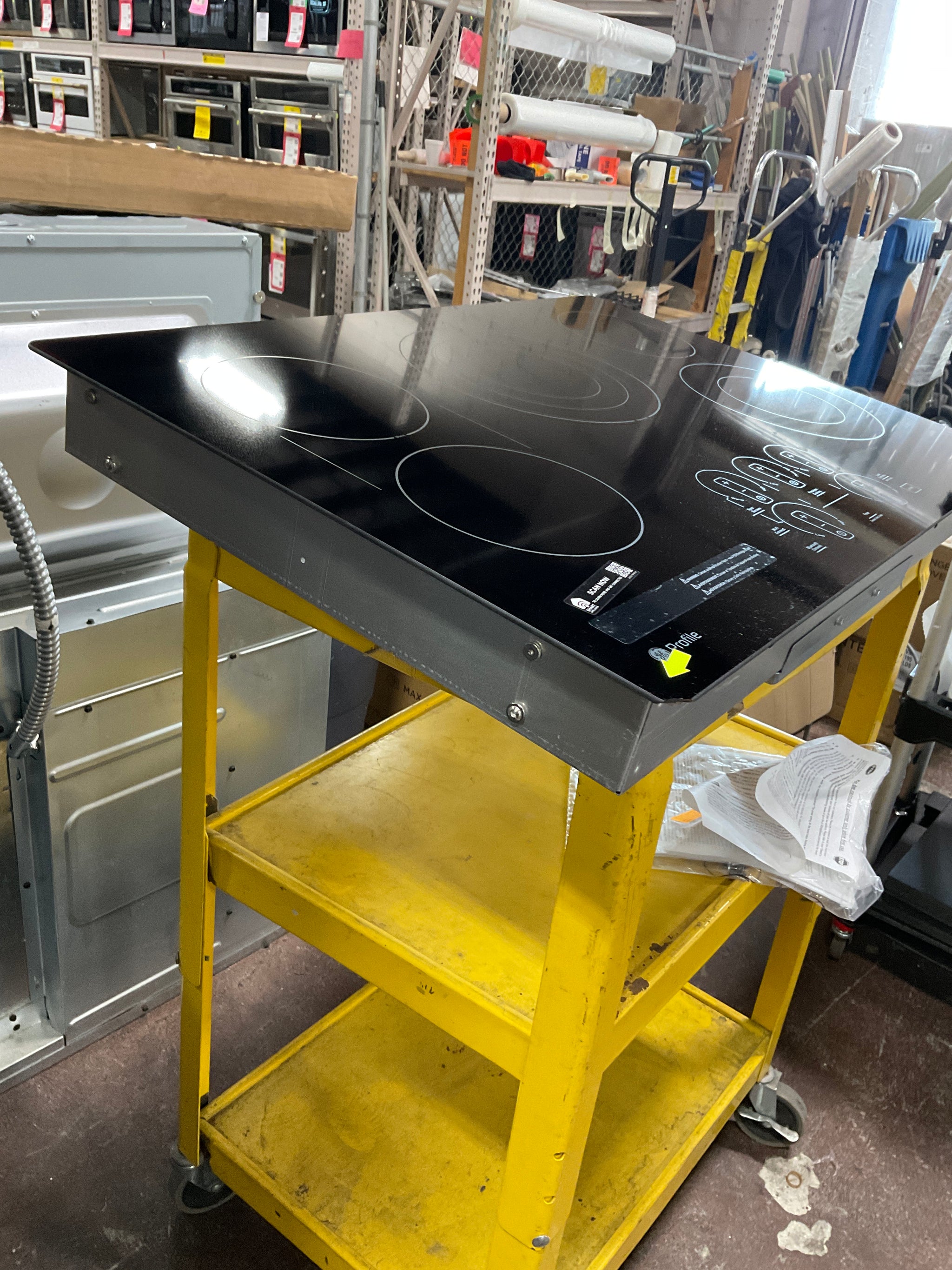

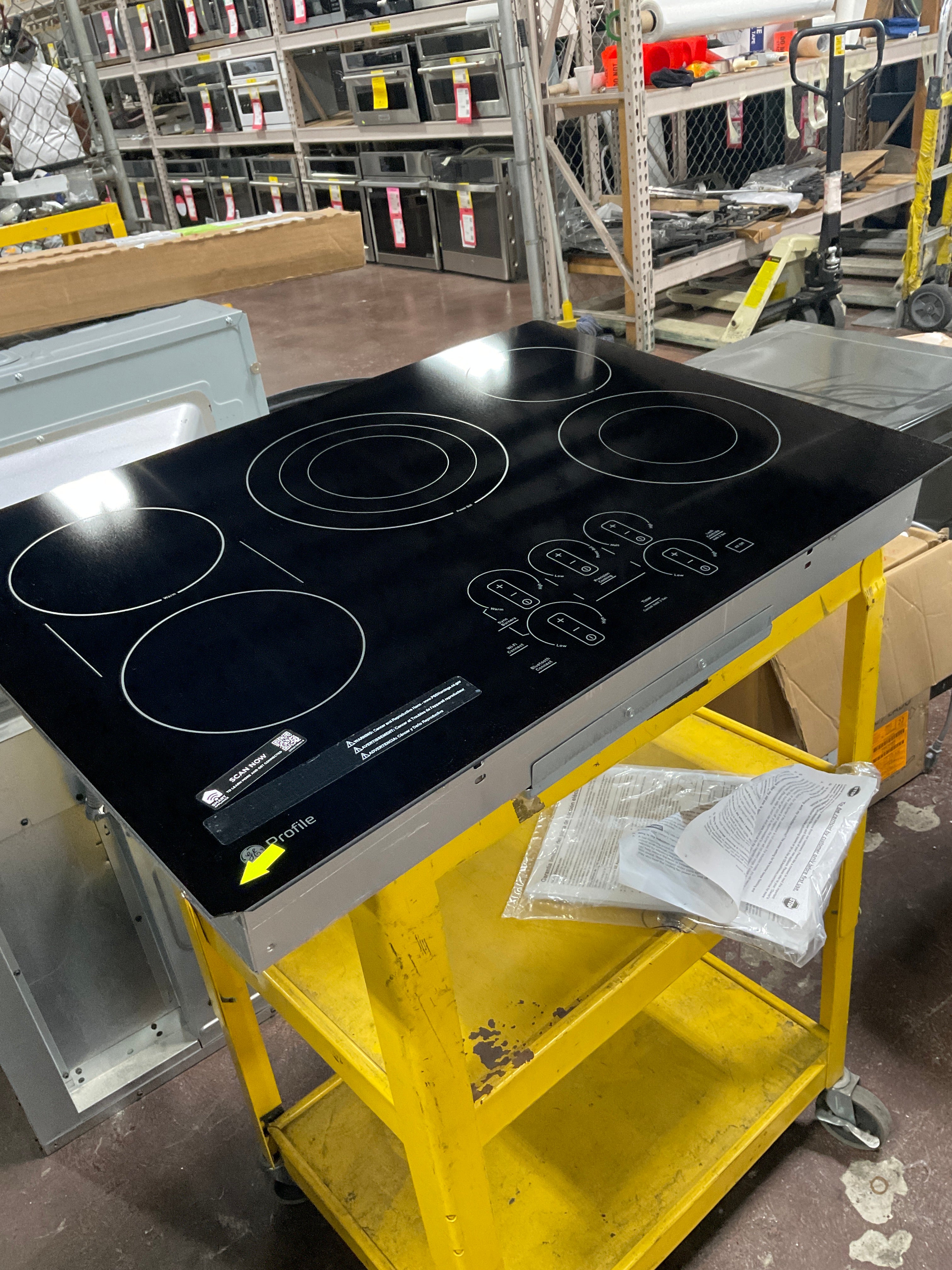

ITEM IS BEING TESTED

This unit is sold. Check for related models on the bottom of the page, or find another Cooktop appliance.

Model

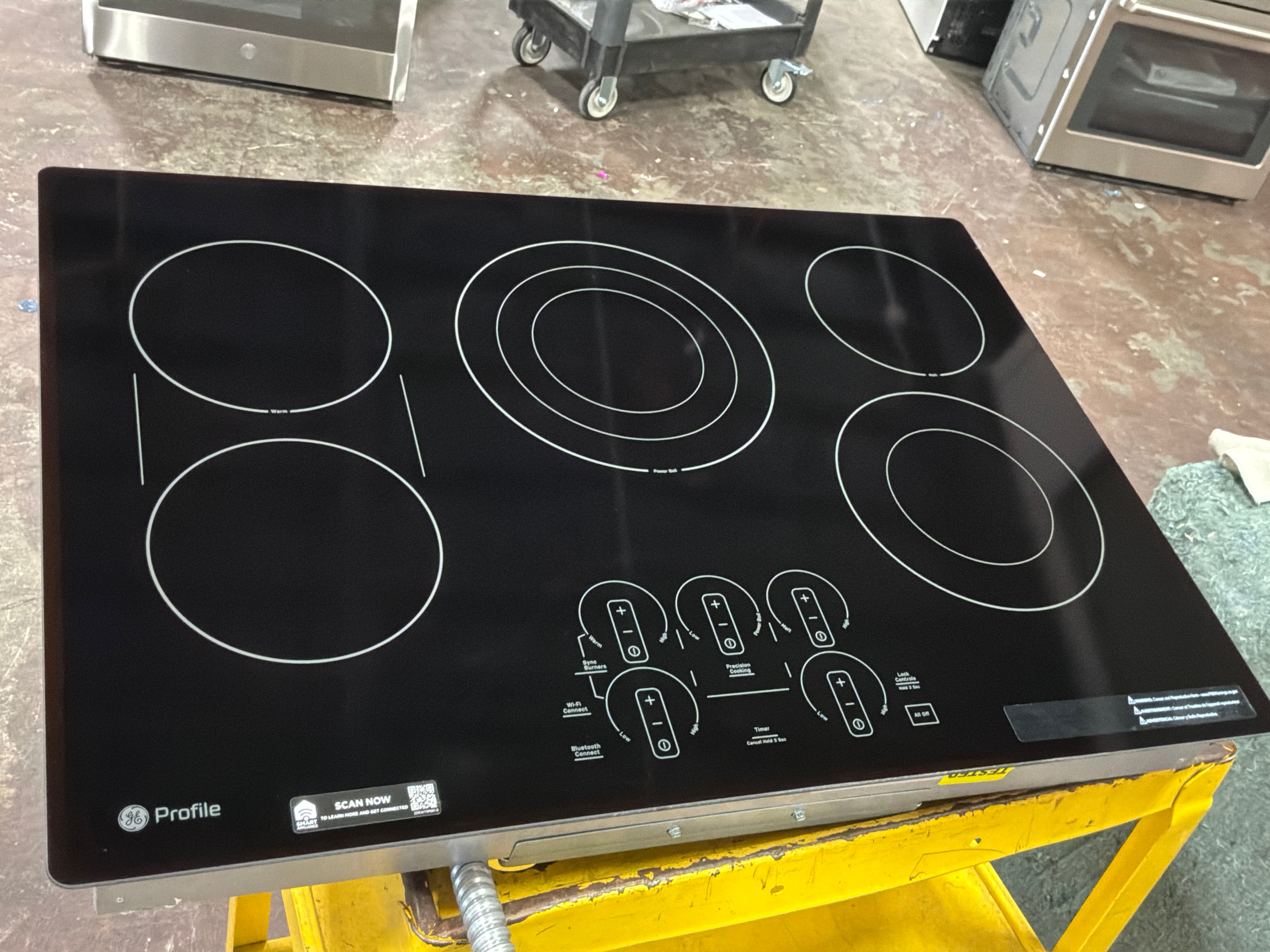

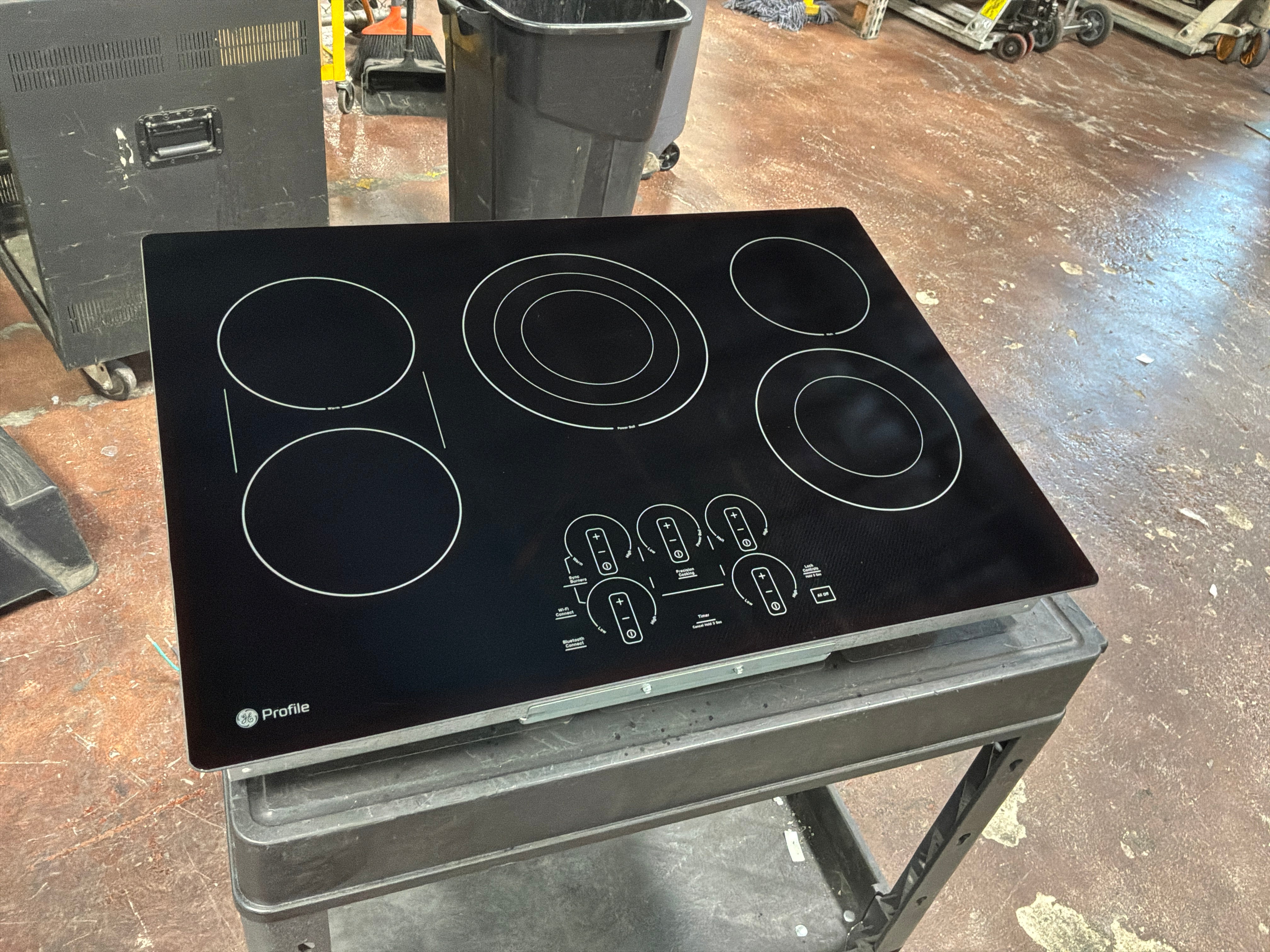

PEP9030DTBB
Brand
GE Profile
1YR MFG. Warranty
INCLUDED
SOLD

Shipping & Returns

Ask us a Question

Summary

  • Power Boil on Tri- and Dual-Ring Elements
  • Precision Temperature Control
  • Guided Cooking
  • Dimensions: 3 1/4 H x 29 3/4 W x 21 3/8 D
  • APPEARANCE
    • Color AppearanceBlack
    • FramelessYes
  • FEATURES
    • Connected CapabilitiesAmazon AlexaGoogle Home

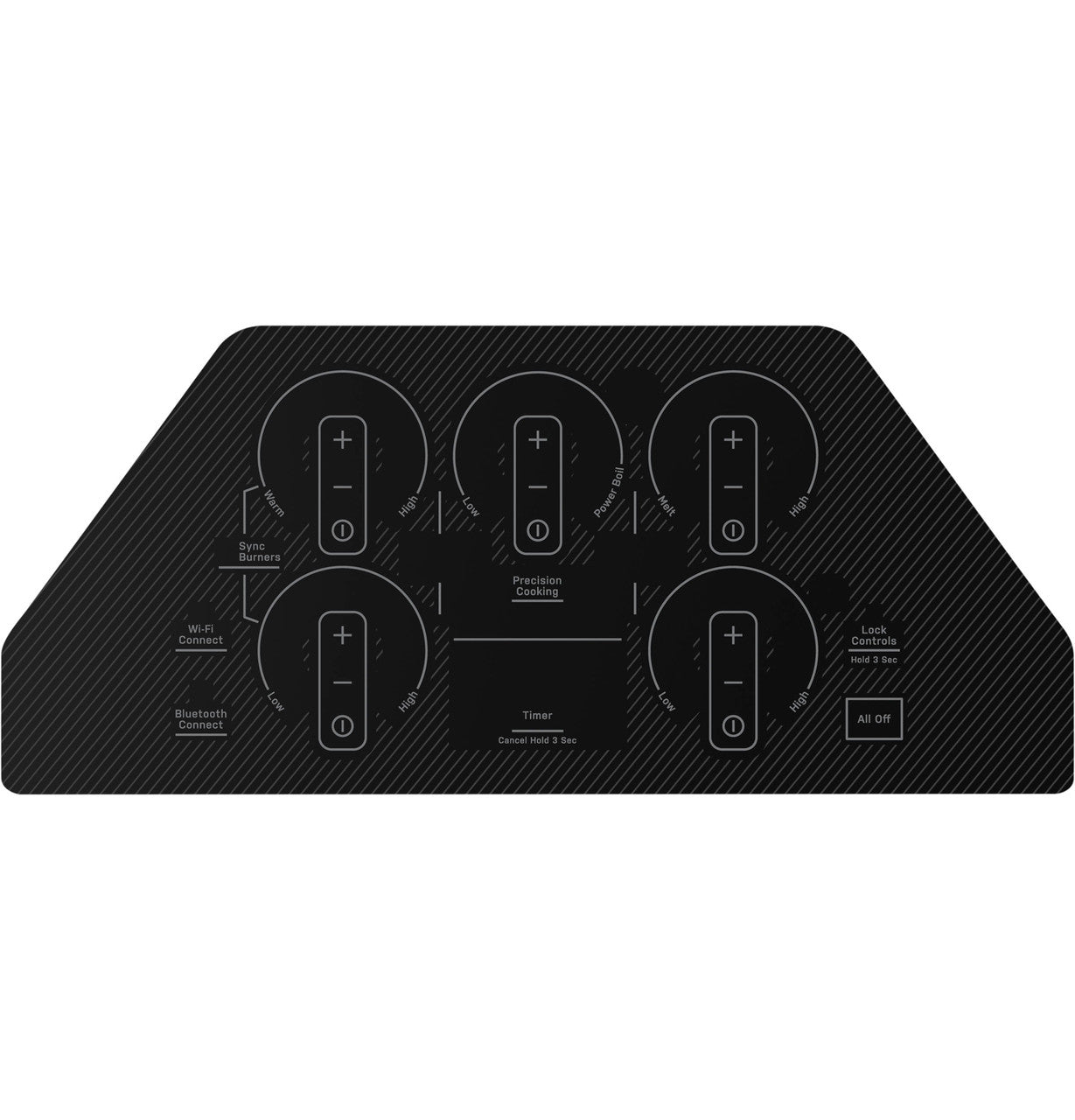

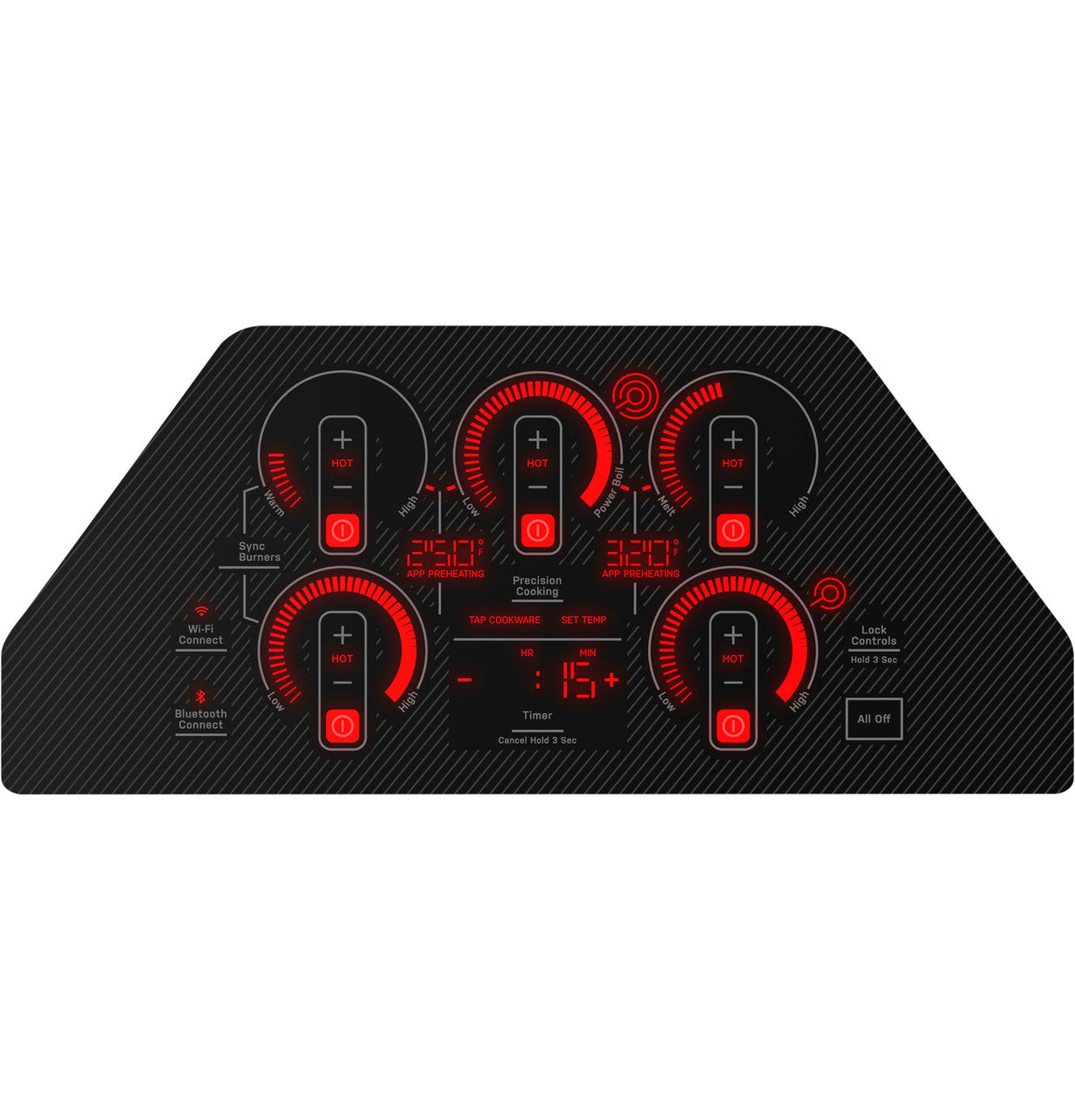

    • Control LocationFront Center
    • Control TypeElectronicGlide Touch

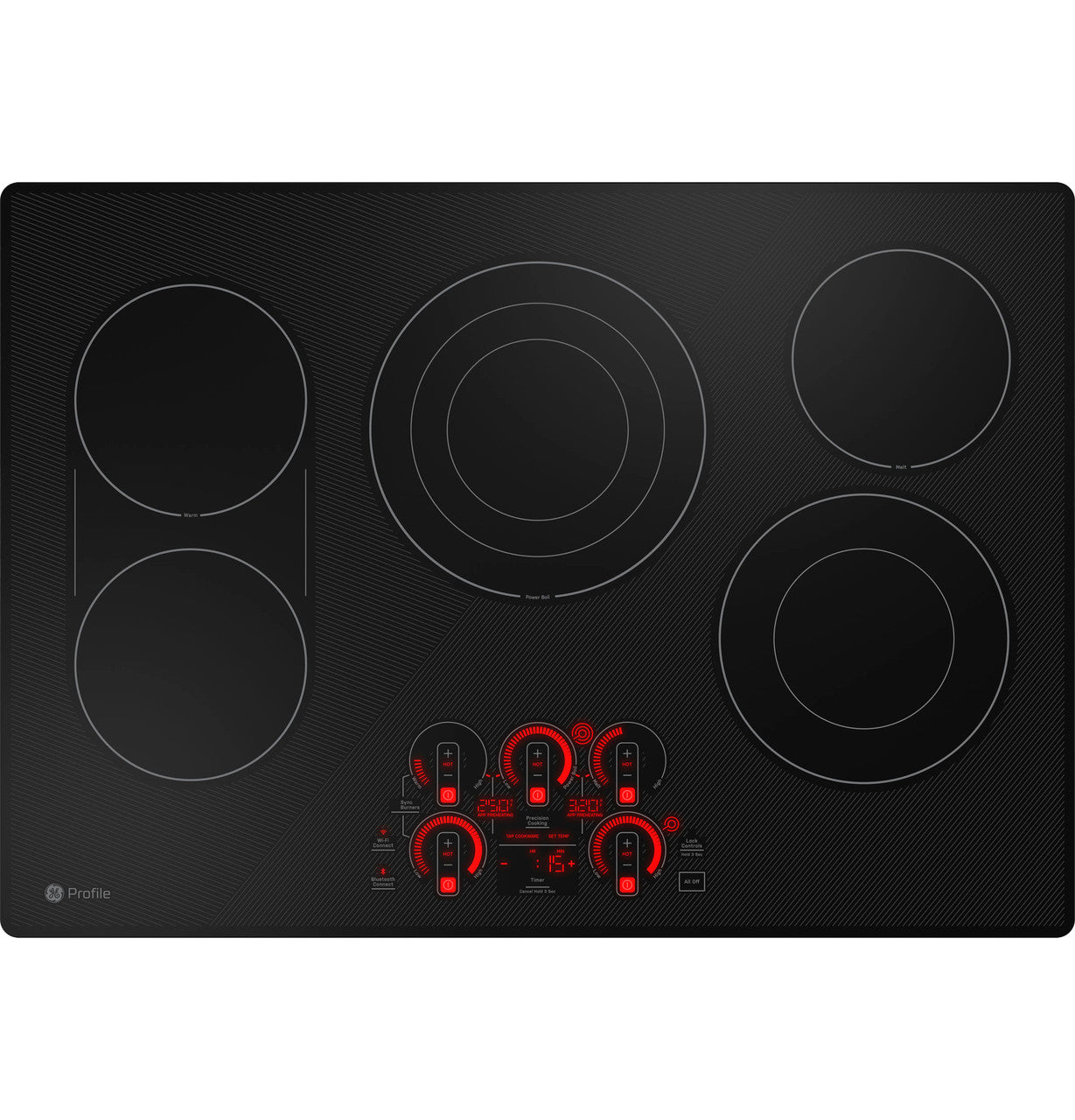

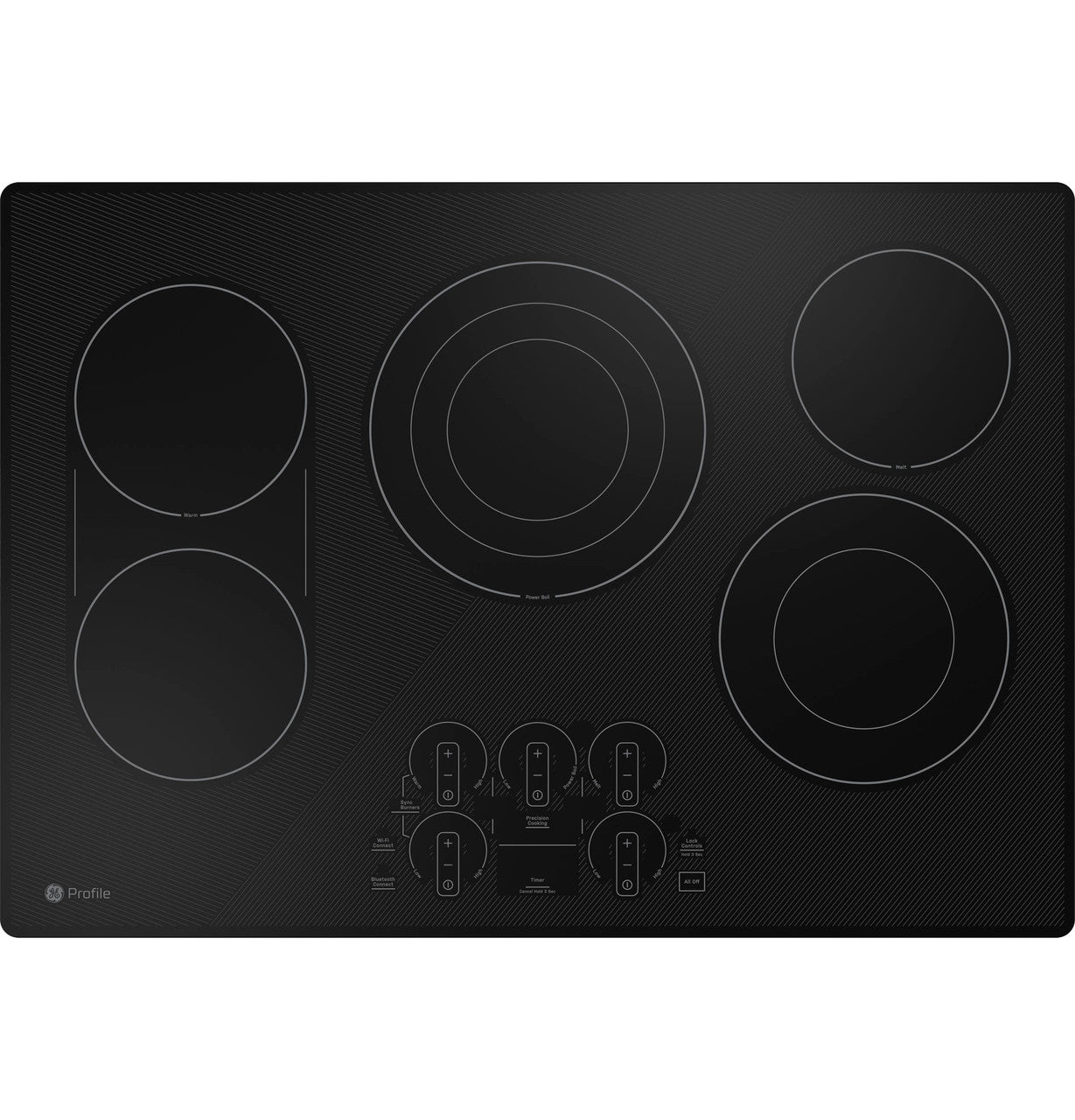

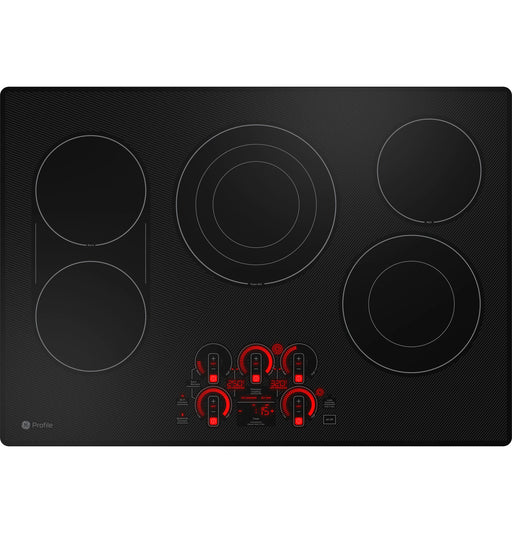

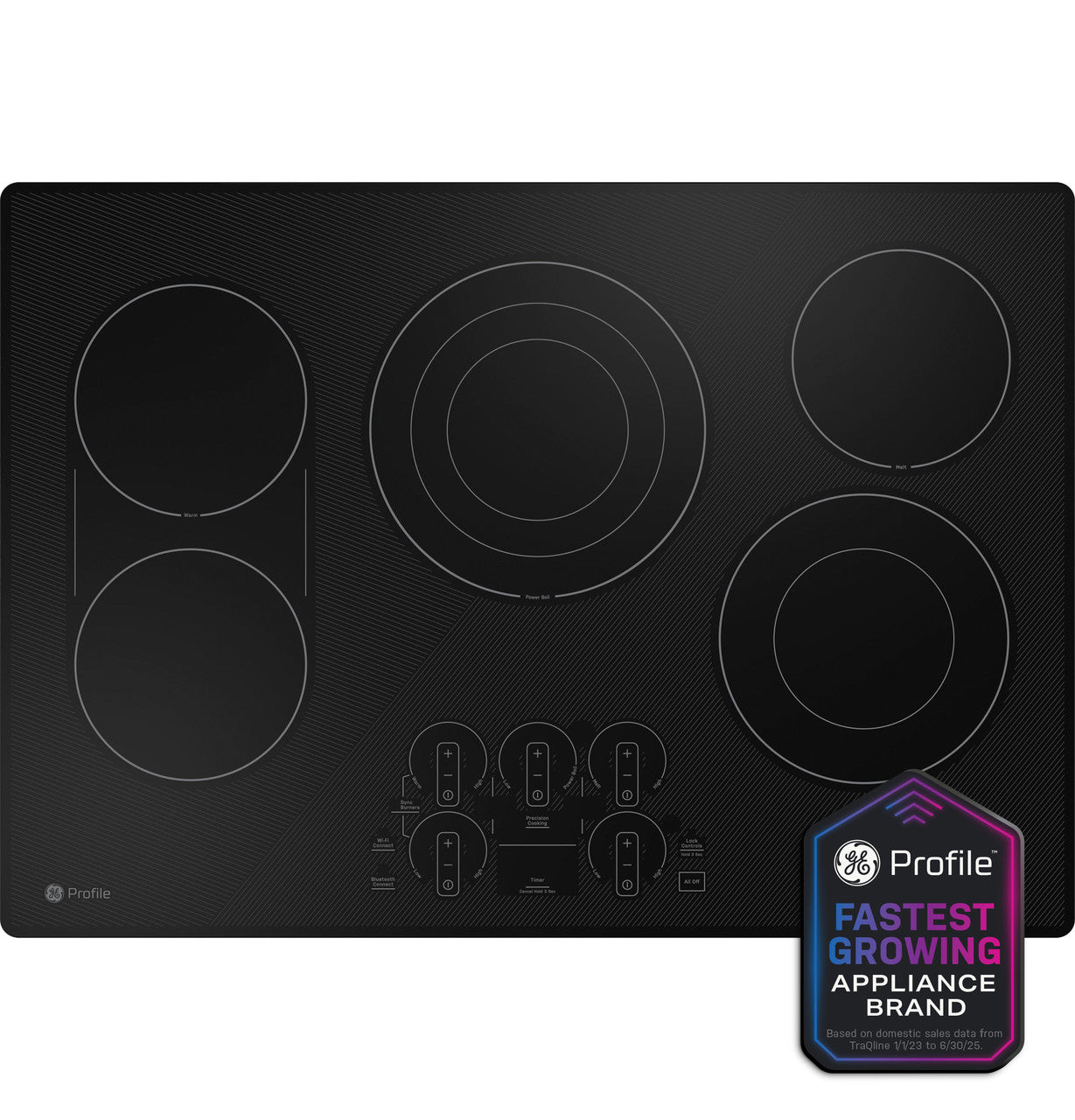

    • Cooktop Burner Type5 RibbonSmoothtop
    • Cooktop Control FeaturesControl Lock CapabilityCustom SettingsKeep-Warm SettingKitchen timerMelt SettingSync-Burners CapabilityAll-Off ControlLED Light level adjustmentSound adjustment
    • Cooktop SurfaceBlack Ceramic Glass
    • Cooktop TypeRadiant Smoothtop
    • Dual Ring BurnersYes
    • Element - Center9"/7"/5" 3000W Tri-ring Power Boil
    • Element - Left Front7" 1500W
    • Element - Left Rear7" 1500W (Keep Warm)
    • Element - Right Front8"/5" 2200W Dual
    • Element - Right Rear6" 1200W (Melt)
    • Filler trim kitJXTR32B (not included)
    • Fuel TypeElectric
    • Indicator Lights5 Hot SurfaceRedSurface Element "ON"
    • Melt SettingYes
    • Power Boil BurnerYes
    • Product TypeCooktop
    • TimerYes
    • WiFi ConnectBuilt-In
    • WiFi Enabled FeaturesInterfaces with SmartHQ AppBluetooth Pairing - Chef Connect with Hoods/OTRs and HestenCue Pans (HMI)Precision cooking with HestanCue Pans (HMI and App)Guided cooking with HestanCue Pans (App)
  • POWER / RATINGS
    • Electrical Requirements208/240V ; 60Hz ; 40A
    • Max. Connected Load (kW) at 208V7.1
    • Max. Connected Load (kW) at 240V9.5
    • Max. Current Draw (Amps) at 208V34.1
    • Max. Current Draw (Amps) at 240V39.6
    • Recommended Circuit Breaker (Amps) at 208V40
    • Recommended Circuit Breaker (Amps) at 240V40
  • WARRANTY
    • Labor WarrantyLimited 1-year entire appliance
    • Parts WarrantyLimited 1-year entire appliance
    • Warranty NotesSee written warranty for full details
  • WEIGHTS & DIMENSIONS
    • Approximate Shipping Weight40 lb
    • Cabinet Width30 in
    • Cooktop Size30 in
    • Cutout Depth (in)19 5/8 in
    • Cutout Width (in)28-1/2
    • Net Weight35 lb
    • Overall Depth21 3/8 in
    • Overall Height3 1/4 in
    • Overall Width29 3/4 in
