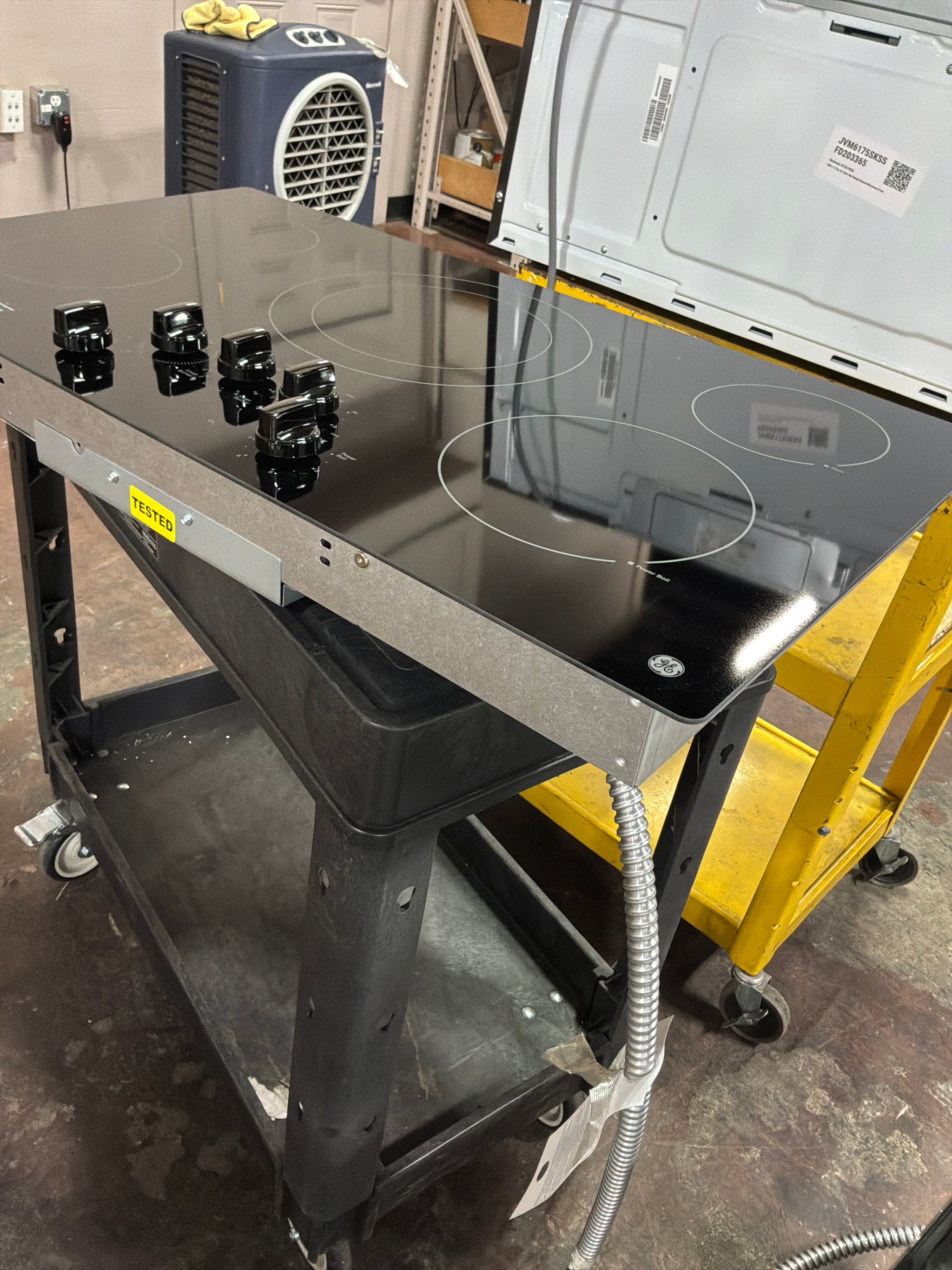

ITEM IS BEING TESTED

This unit is sold. Check for related models on the bottom of the page, or find another Cooktop appliance.

Model
JP3036DLBB
Brand
GE
1YR MFG. Warranty
INCLUDED
SOLD

Shipping & Returns

Ask us a Question

Summary

  • Five radiant cooking elements
  • Power Boil Dual-Ring Element
  • Keep Warm Setting
  • Dimensions: 3 3/8 H x 36 W x 20 3/8 D
  • APPEARANCE
    • Color AppearanceBlack
    • Control KnobsGloss Black
    • FramelessYes
  • FEATURES
    • Control LocationFront Center
    • Control TypeKnob (Infinite switch)

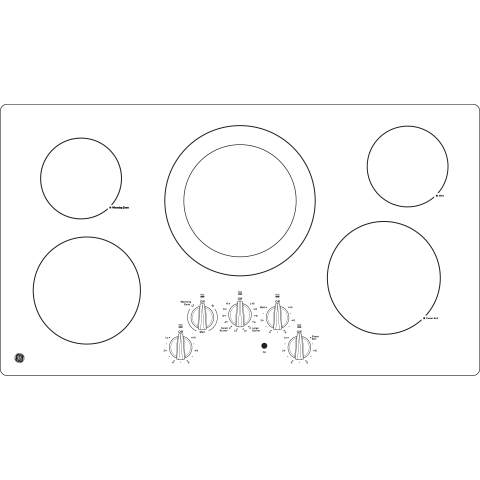

    • Cooktop Burner Type5 RibbonSmoothtop
    • Cooktop Control FeaturesFifth Element Warming Zone
    • Cooktop SurfaceBlack Ceramic Glass
    • Cooktop TypeRadiant Smoothtop
    • Dishwasher Safe KnobsYes
    • Dual Ring BurnersYes

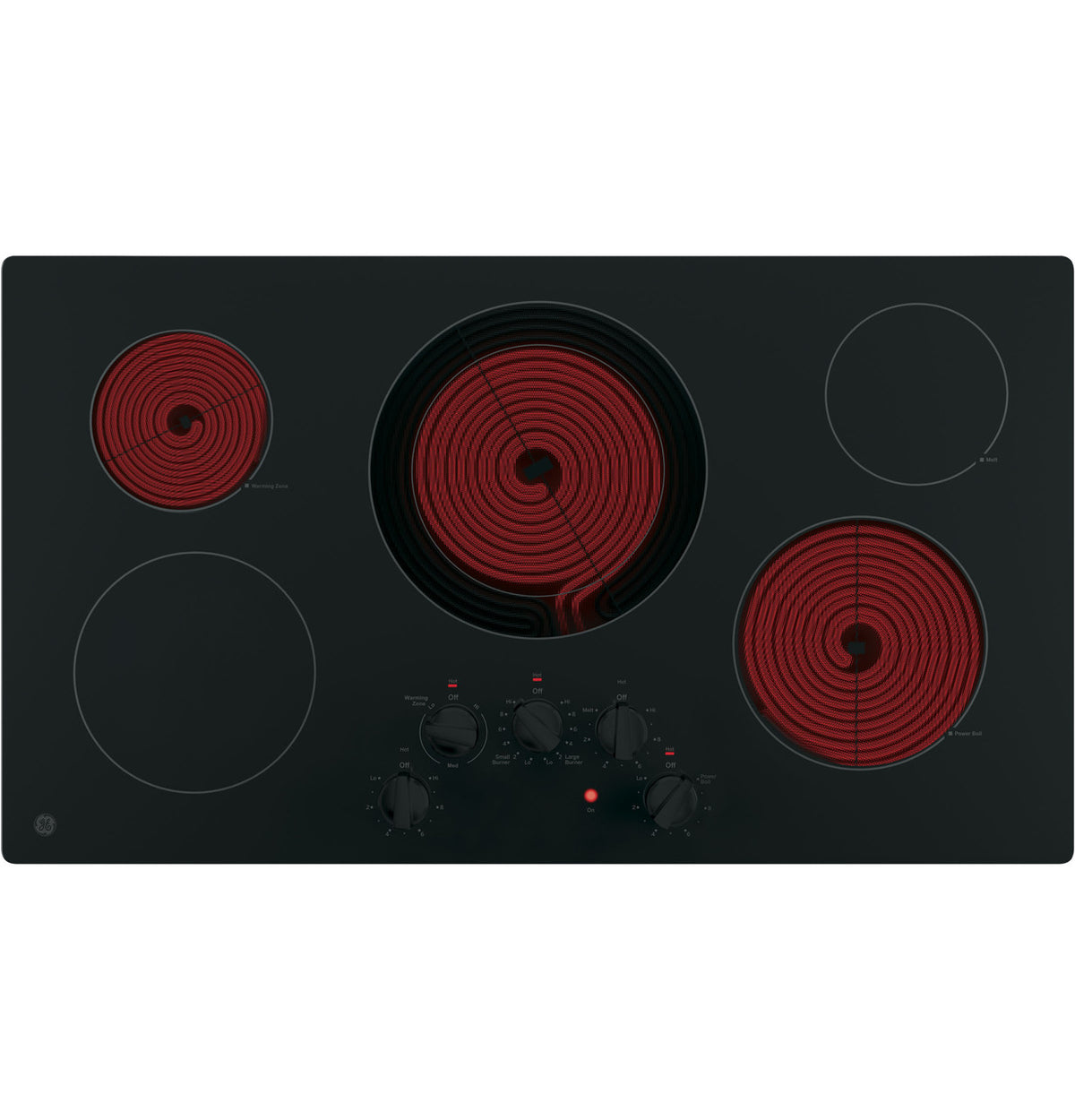

    • Element - Center12"/9" 2700W dual
    • Element - Left Front7" 1500W
    • Element - Left Rear6" 120W Warming Zone
    • Element - Right Front8" 2500W Power Boil
    • Element - Right Rear6" 1200W (Melt)
    • Fuel TypeElectric
    • Indicator Lights5 Hot SurfaceSurface Element "ON"Red
    • Melt SettingYes
    • Power Boil BurnerYes
    • Product TypeCooktop
  • POWER / RATINGS
    • Electrical Requirements208/240V ; 60Hz ; 40A
    • Hertz60
    • Max. Connected Load (kW) at 208V7.1
    • Max. Connected Load (kW) at 240V9.0
    • Max. Current Draw (Amps) at 208V34.3
    • Max. Current Draw (Amps) at 240V37.5
    • Recommended Circuit Breaker (Amps) at 208V40
    • Recommended Circuit Breaker (Amps) at 240V40
  • WARRANTY
    • Labor WarrantyLimited 1-year entire appliance
    • Parts WarrantyLimited 1-year entire appliance
    • Warranty NotesSee written warranty for full details
  • WEIGHTS & DIMENSIONS
    • Approximate Shipping Weight53 lb
    • Cabinet Width36 in
    • Cooktop Size36 in

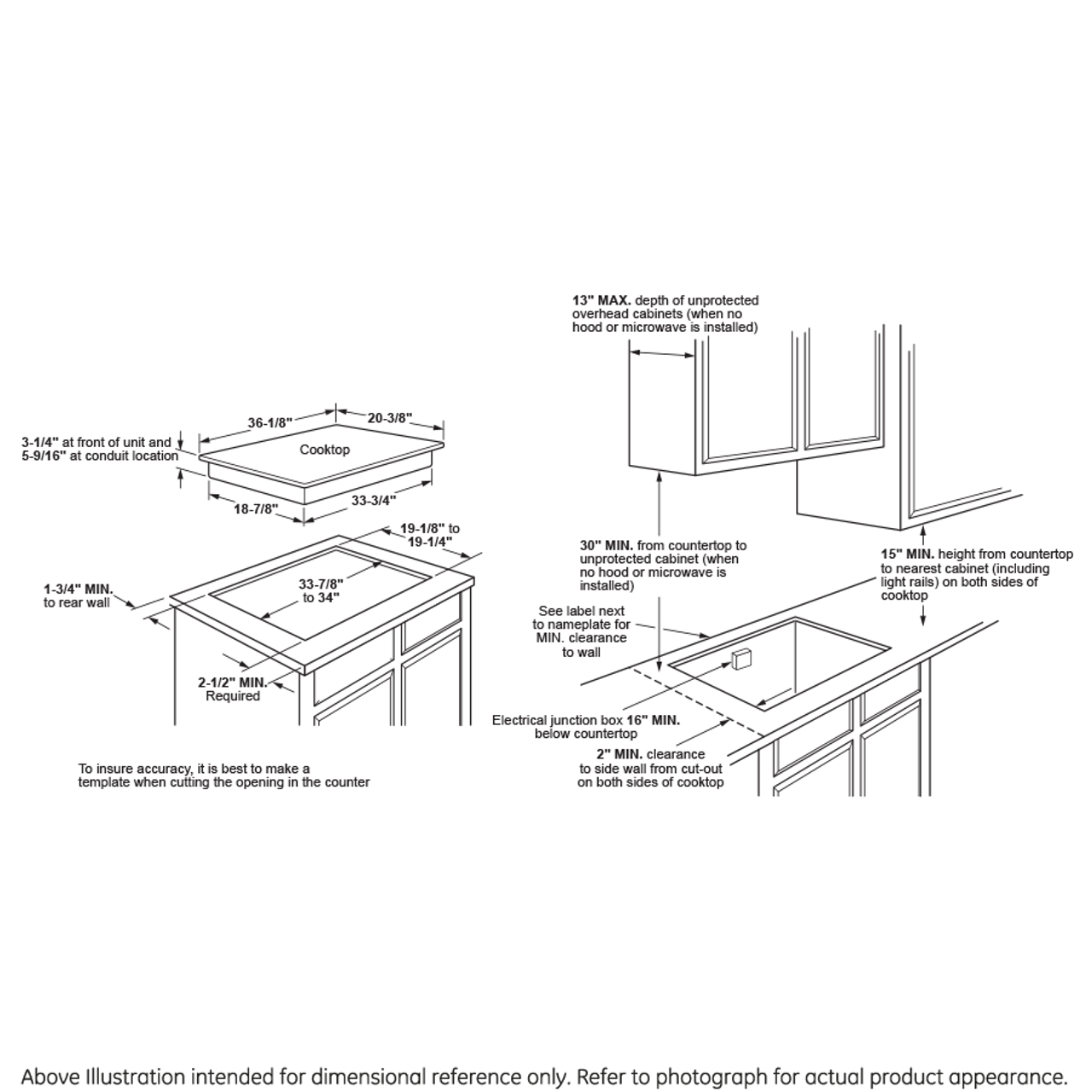

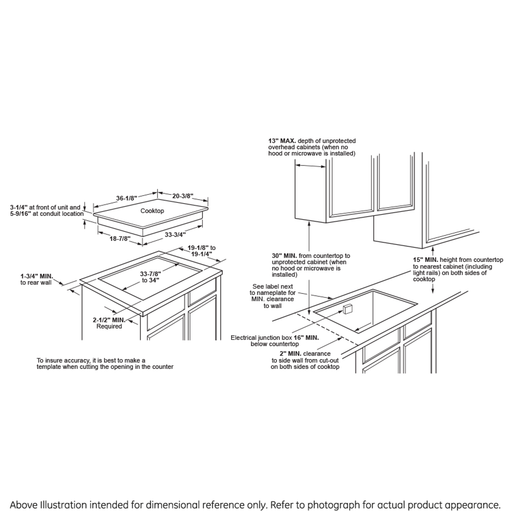

    • Cutout Depth (in)19 1/8 in
    • Cutout Height (in)5.5625
    • Cutout Width (in)33.875
    • Net Weight46 lb
    • Overall Depth20 3/8 in
    • Overall Height3 3/8 in
    • Overall Width36 in
