ITEM IS BEING TESTED

This unit is sold. Check for related models on the bottom of the page, or find another Cooktop appliance.

Model
JEP5030STSS
Brand
GE
1YR MFG. Warranty
INCLUDED
SOLD

Shipping & Returns

Ask us a Question

Summary

  • Easy Clean Surface
  • Power Boil on Dual-Ring Element (3,100W)
  • Additional Power Boil Dual-Ring Element (2,200W)
  • Dimensions: 3 1/4 H x 29 7/8 W x 21 1/2 D
  • APPEARANCE
    • Control KnobsStainless Steel Appearance
    • Frame Color / MaterialStainless Steel
  • FEATURES

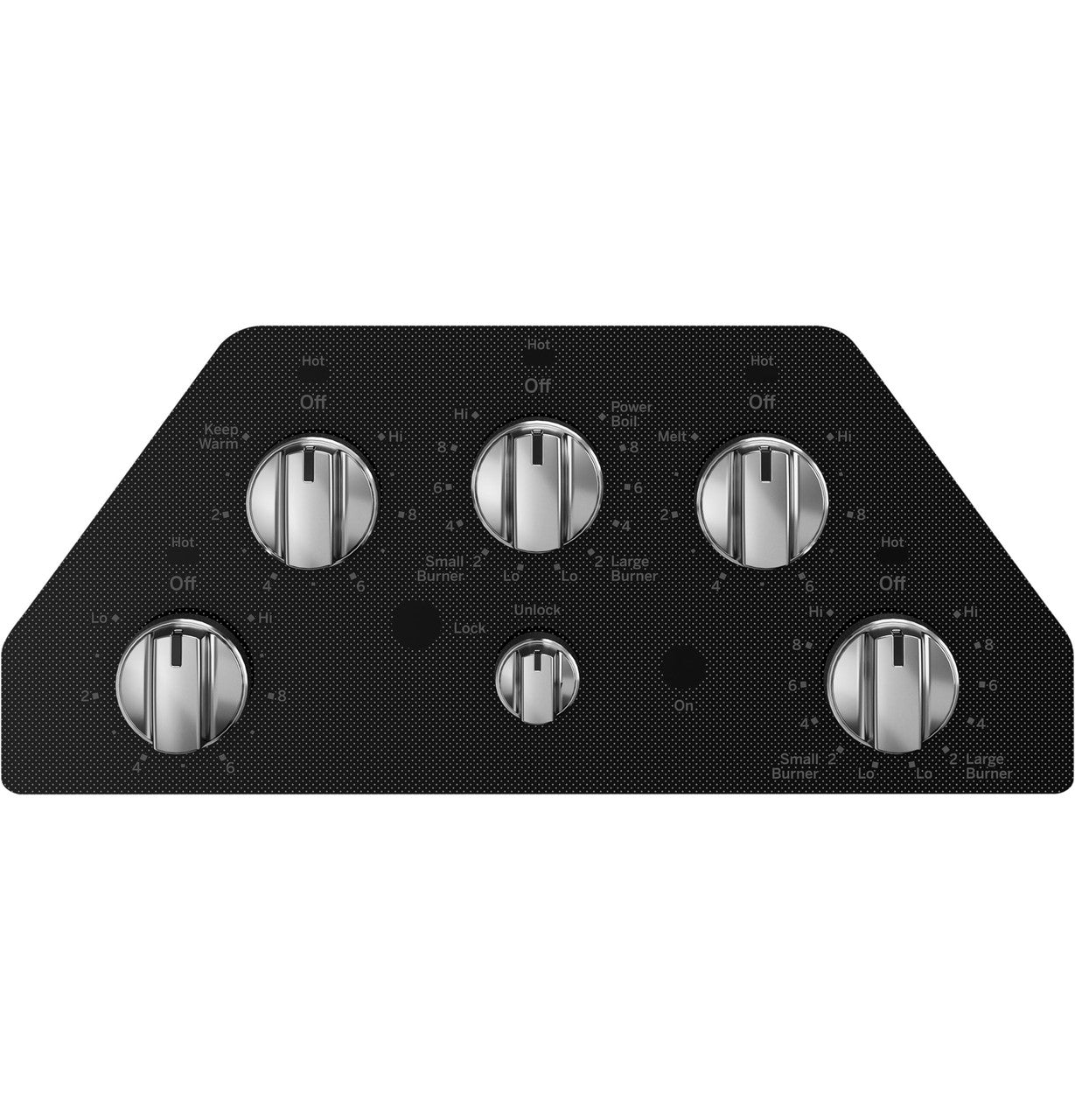

    • Control LocationFront Center
    • Control TypeKnob (Infinite switch)
    • Cooktop Burner Type5 RibbonSmoothtop
    • Cooktop Control FeaturesKeep-Warm SettingMelt Setting
    • Cooktop TypeRadiant Smoothtop
    • Dual Ring BurnersYes
    • Element - Center9"/6" 3100W Dual Ring Power Boil
    • Element - Left Front7" 1500W
    • Element - Left Rear7" 1500W (Keep Warm)
    • Element - Right Front8"/5" 2200W Dual-ring
    • Element - Right Rear6" 1200W (Melt)
    • Filler trim kitJXTR32B (not included)
    • Fuel TypeElectric

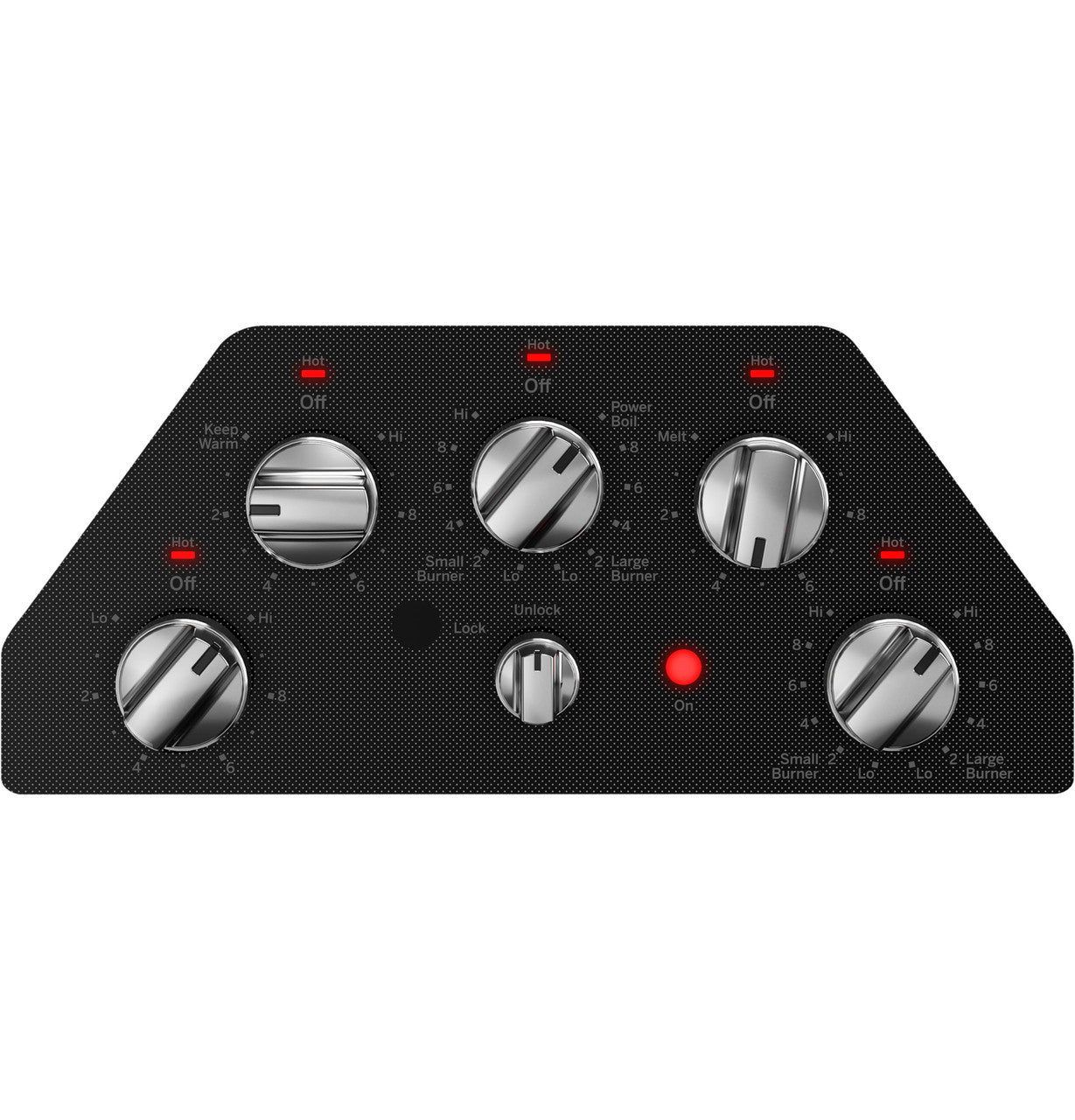

    • Indicator Lights5 Hot SurfaceRedSurface Element "ON"
    • Melt SettingYes
    • Power Boil BurnerYes
    • Product TypeCooktop
    • TimerYes
  • POWER / RATINGS
    • Max. Connected Load (kW) at 208V7.2
    • Max. Connected Load (kW) at 240V9.6
    • Max. Current Draw (Amps) at 208V34.6
    • Max. Current Draw (Amps) at 240V40.0
    • Recommended Circuit Breaker (Amps) at 208V40
    • Recommended Circuit Breaker (Amps) at 240V40
  • WARRANTY
    • Labor WarrantyLimited 1-year entire appliance
    • Parts WarrantyLimited 1-year entire appliance
    • Warranty NotesSee written warranty for full details
  • WEIGHTS & DIMENSIONS
    • Approximate Shipping Weight40 lb
    • Cabinet Width30 in
    • Cooktop Size30 in
    • Cutout Depth (in)19 5/8 in
    • Cutout Width (in)28-1/2
    • Net Weight35 lb
    • Overall Depth21 1/2 in
    • Overall Height3 1/4 in
    • Overall Width29 7/8 in
