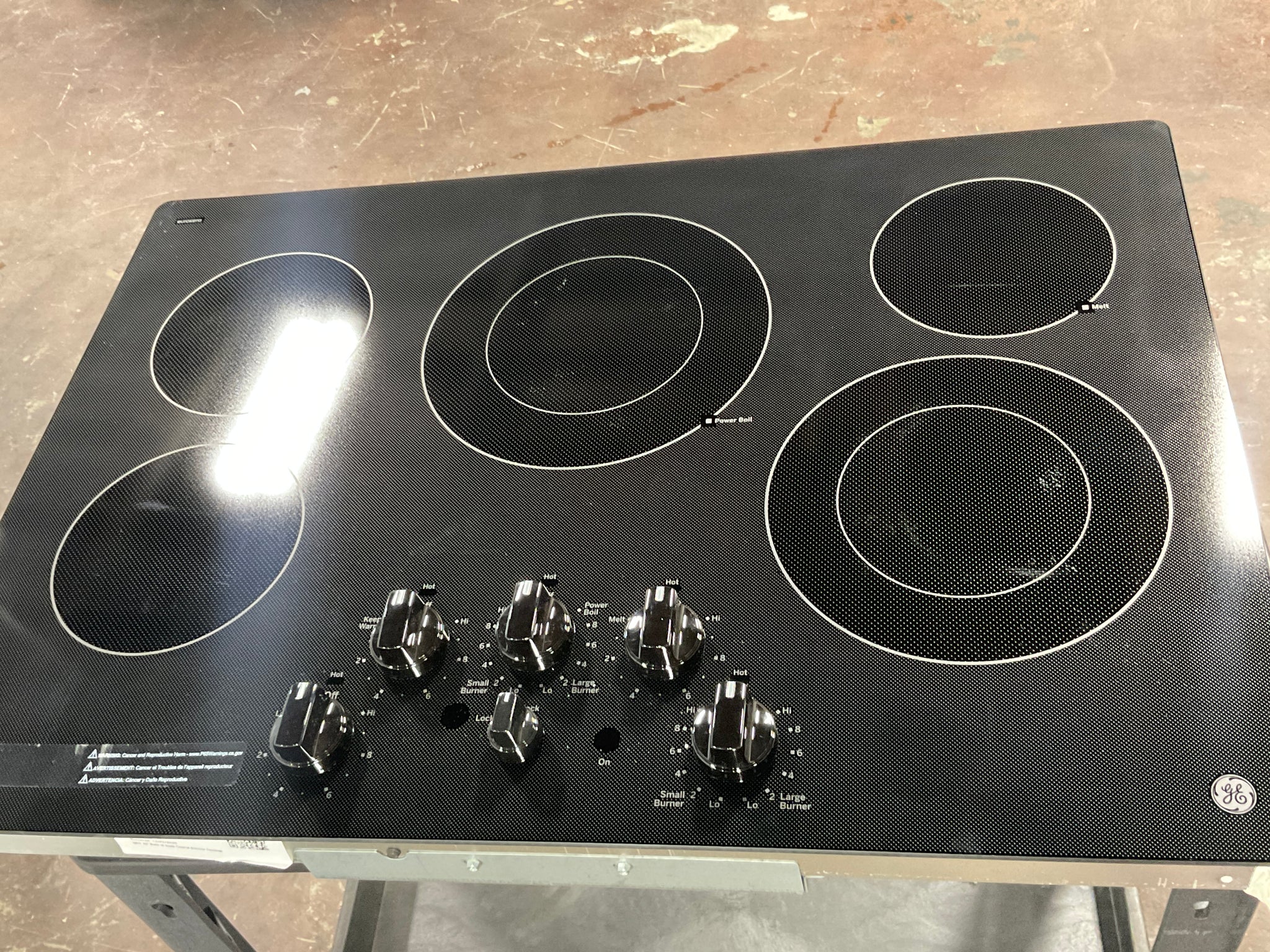

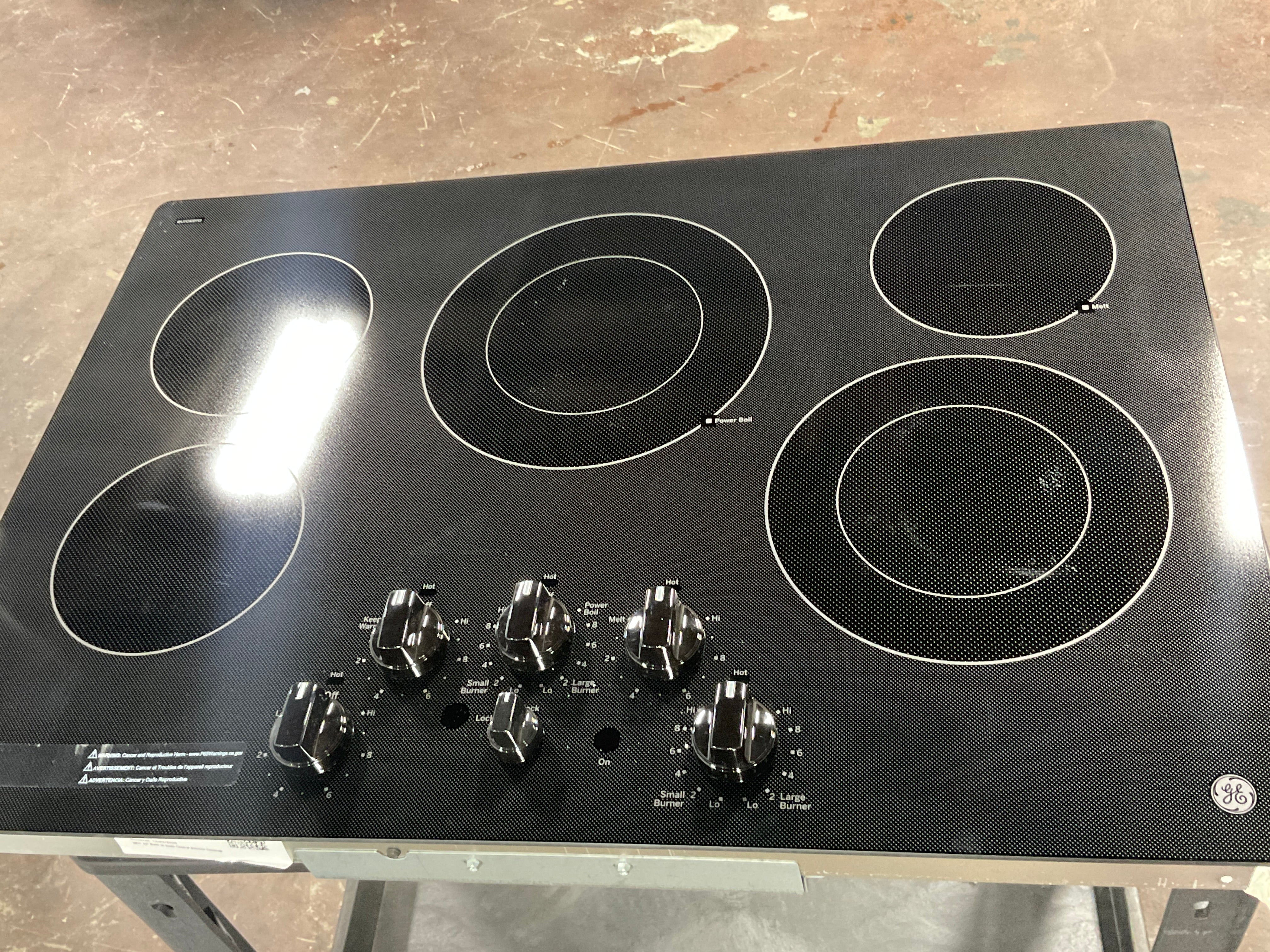

ITEM IS BEING TESTED

This unit is sold. Check for related models on the bottom of the page, or find another Cooktop appliance.

Model

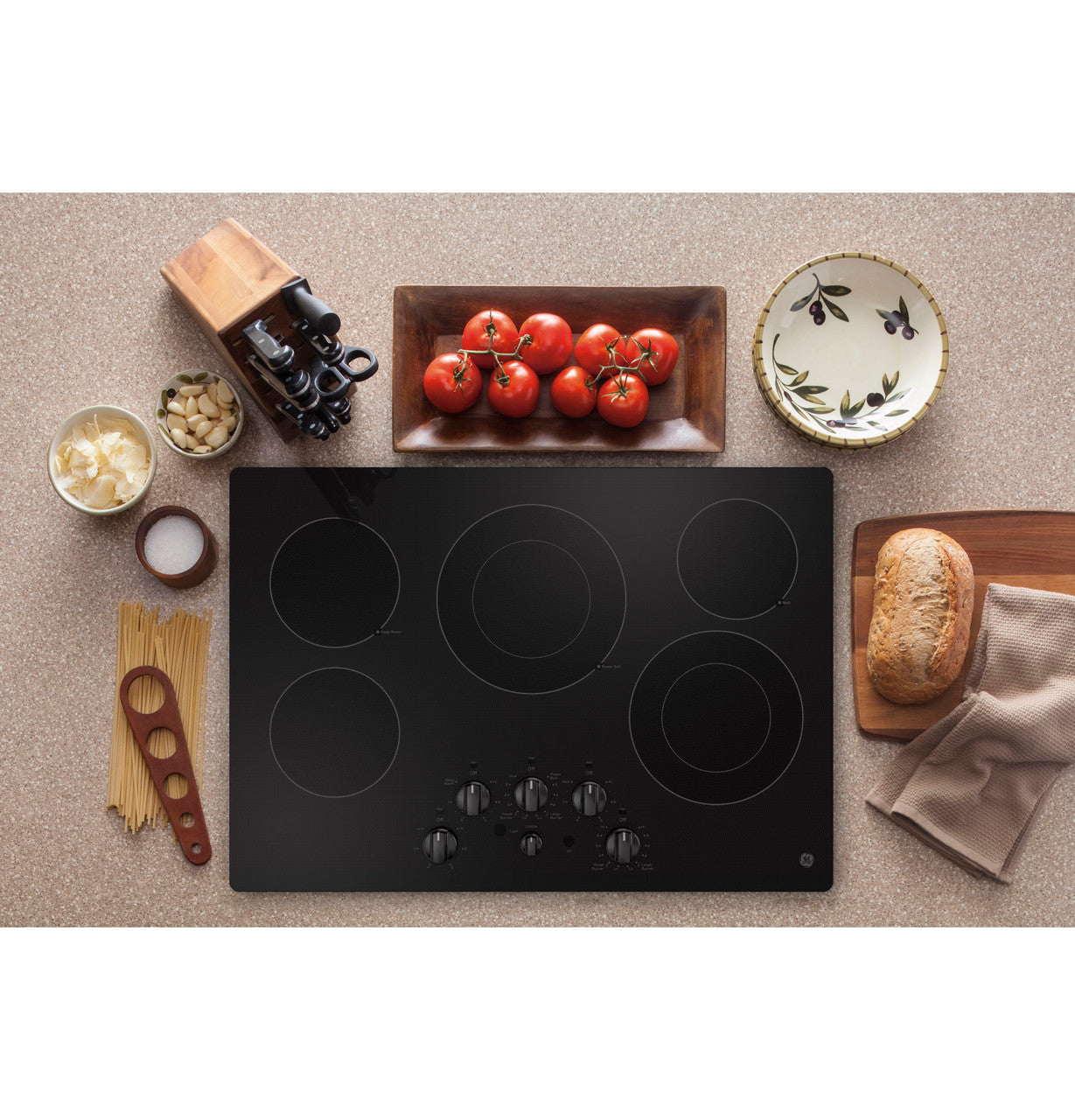

JEP5030DTBB
Brand
GE
1YR MFG. Warranty
INCLUDED
SOLD

Shipping & Returns

Ask us a Question

Summary

  • Easy Clean Surface
  • Power Boil on Dual-Ring Element (3,100W)
  • Additional Power Boil Dual-Ring Element (2,200W)
  • Dimensions: 3.25 H x 29.75 W x 21.375 D
  • APPEARANCE
    • Color AppearanceBlack
    • Control KnobsGloss Black
    • FramelessYes
  • FEATURES

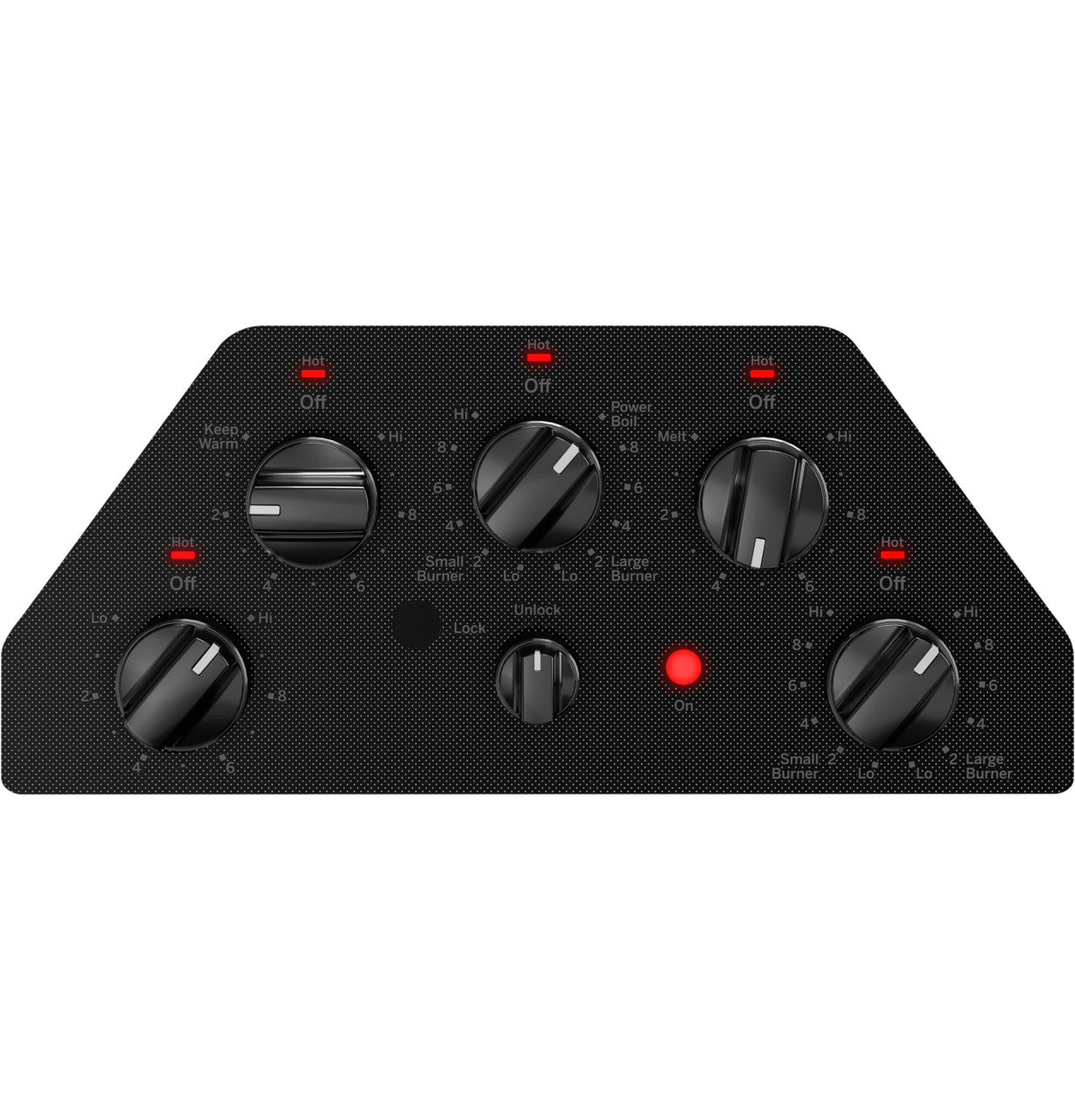

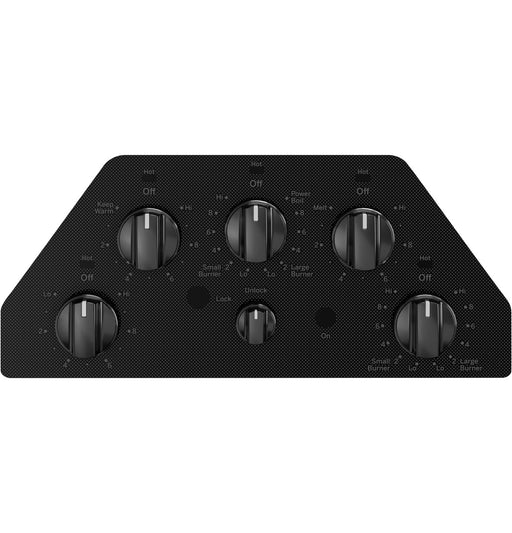

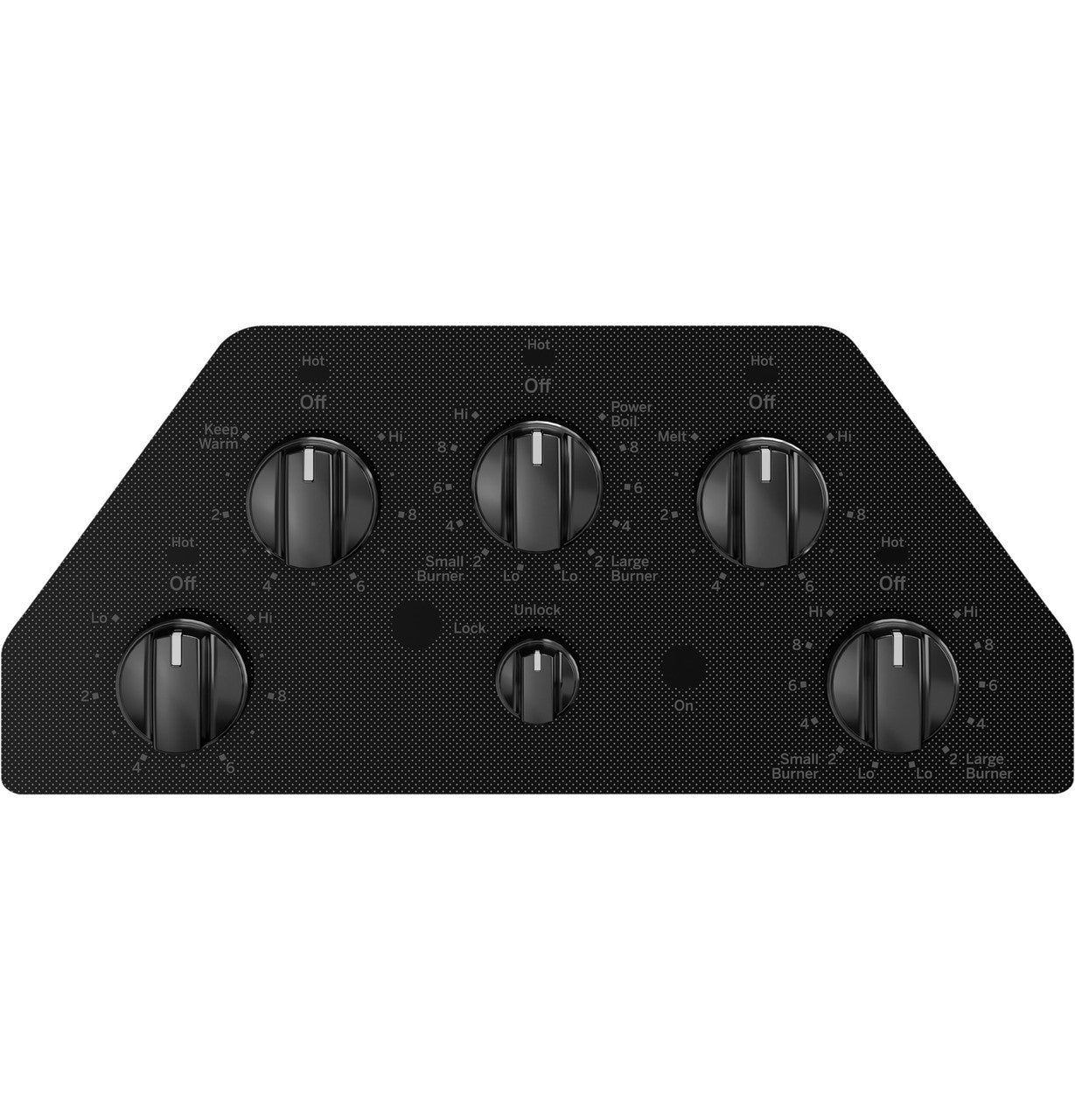

    • Control LocationFront Center
    • Control TypeKnob (Infinite switch)

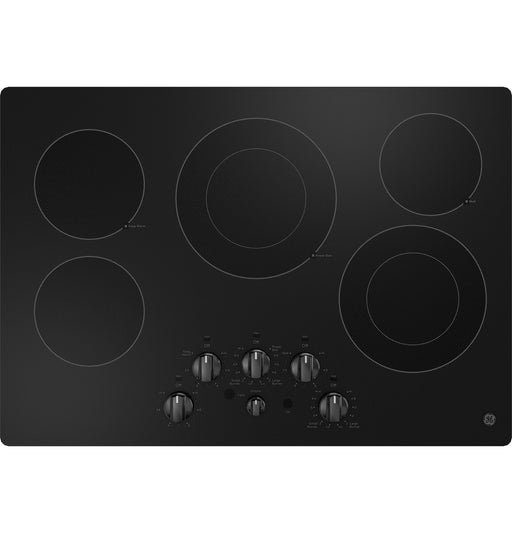

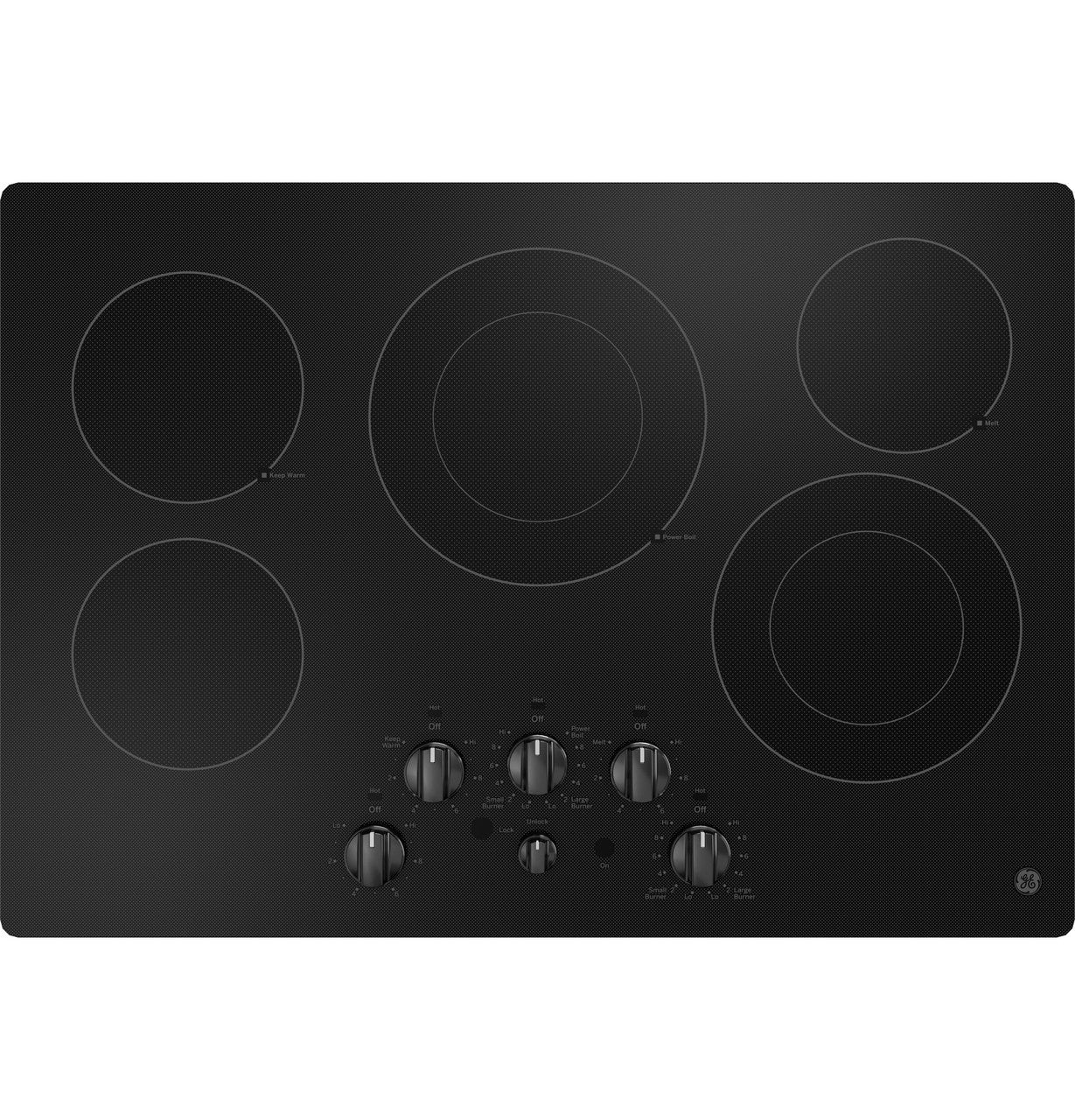

    • Cooktop Burner Type5 Ribbon
      Smoothtop
    • Cooktop Control FeaturesKeep-Warm Setting
      Melt Setting
    • Cooktop TypeRadiant Smoothtop
    • Dual Ring BurnersYes
    • Element - Center9"/6" 3100W Dual Ring Power Boil
    • Element - Left Front7" 1500W
    • Element - Left Rear7" 1500W (Keep Warm)
    • Element - Right Front8"/5" 2200W Dual-ring
    • Element - Right Rear6" 1200W (Melt)
    • Filler trim kitJXTR32B (not included)
    • Fuel TypeElectric

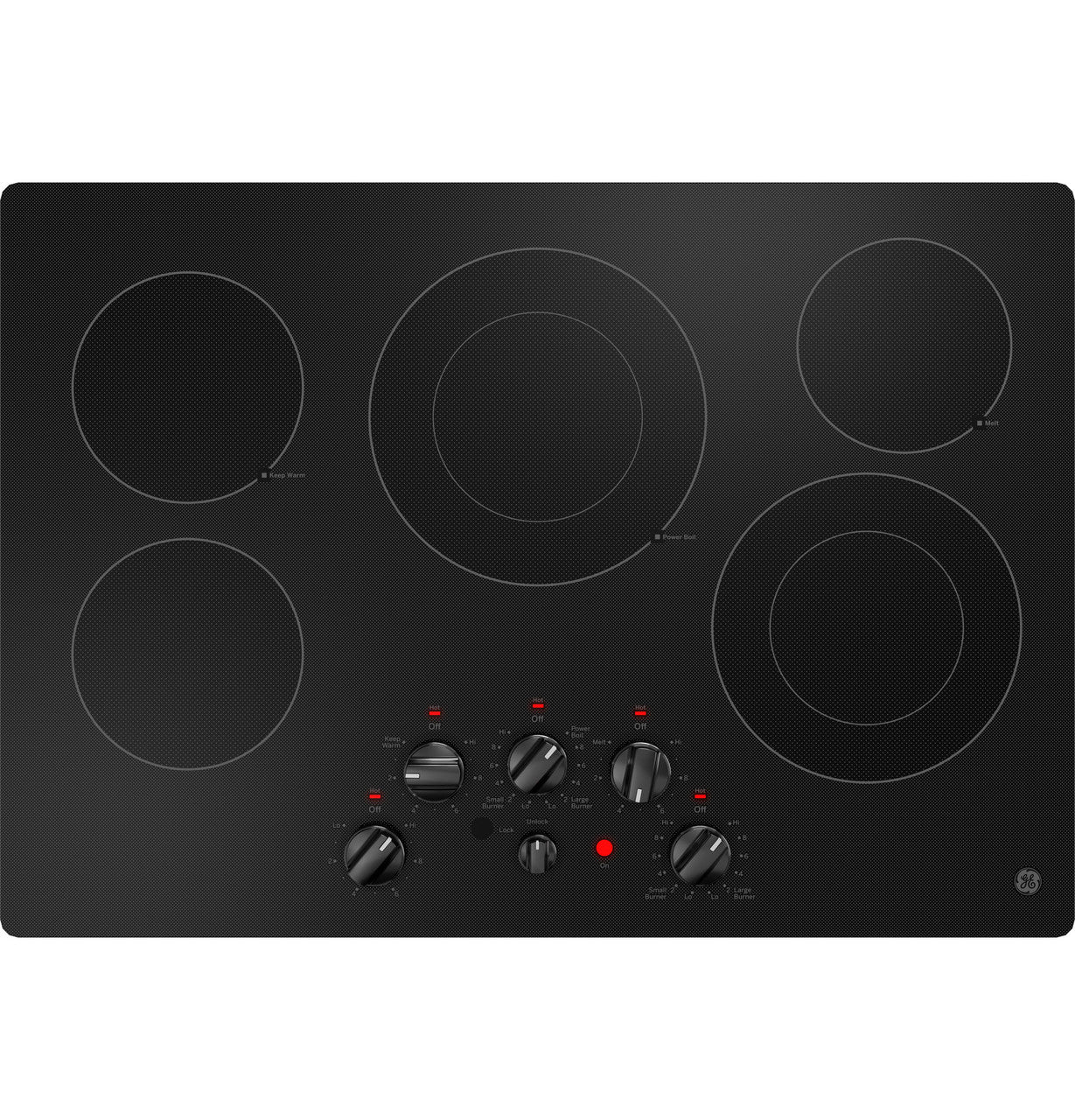

    • Indicator Lights5 Hot Surface
      Red
      Surface Element "ON"
    • Melt SettingYes
    • Power Boil BurnerYes
    • Product TypeCooktop
    • TimerYes
  • POWER / RATINGS
    • Electrical Requirements208/240V ; 60Hz ; 40A
    • Hertz60
    • Max. Connected Load (kW) at 208V7.2
    • Max. Connected Load (kW) at 240V9.6
    • Max. Current Draw (Amps) at 208V34.6
    • Max. Current Draw (Amps) at 240V40.0
    • Recommended Circuit Breaker (Amps) at 208V40
    • Recommended Circuit Breaker (Amps) at 240V40
  • WARRANTY
    • Labor WarrantyLimited 1-year entire appliance
    • Parts WarrantyLimited 1-year entire appliance
    • Warranty NotesSee written warranty for full details
  • WEIGHTS & DIMENSIONS
    • Approximate Shipping Weight40 lb
    • Cabinet Width30 in
    • Cooktop Size30 in
    • Cutout Depth (in)19.625
    • Cutout Height (in)4
    • Cutout Width (in)28.5
    • Net Weight35 lb
    • Overall Depth21.375 in
    • Overall Height3.25 in
    • Overall Width29.75 in

Manufacturer Documents

User Manual
Download Manual
