This unit is sold. Check for related models on the bottom of the page, or find another Dishwasher appliance.

1YR MFG. Warranty

Shipping & Returns

Ask us a Question


  • Dry Boost™ Technology
  • Third Rack with Removable Silverware Caddy
  • Deep Clean Silverware Jets
  • 4 Bottle Wash Jets
  • Smooth-Glide Upper Rack
  • Steam + Sani
  • High Wash Performance
  • Active Flood Protect
  • Reliable Performance
  • Piranha™ Hard Food Disposer
  • Extra Large Capacity
    • Optional 12' Drain HoseOptional hose kit (WD24X10065)
    • Color AppearanceBlack
    • Control Panel ColorStorm Gray
    • Door AppearanceFull-length door
    • Door StyleLong Door with Top Controls
    • HandlePocket Handle
    • Handle ColorBlack
    • InstallationSide or Top Mount Install Brackets IncludedBuilt-Up Floor CapableFlush Cabinet Installation
    • Door InsulationInsulationMastic
    • Motor TypeVariable Speed
    • Outer WrapFull-wrap BlanketBitumen
    • Quiet FeaturesQuiet Water ValveSealed Toe KickTub Collar Trim
    • Quiet Package45 dBA
    • Additional ProtectionActive Flood Protect

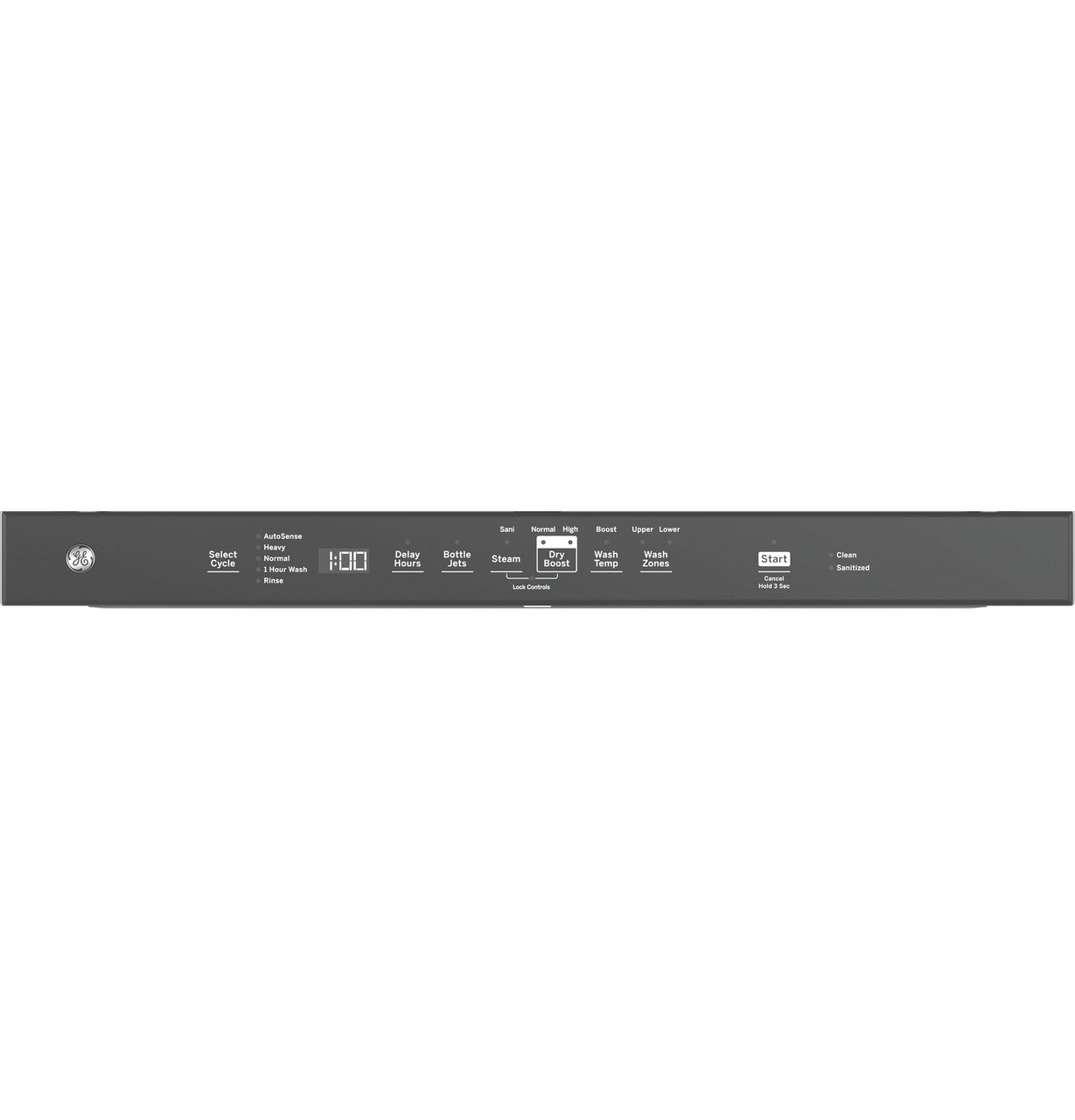

    • Control TypeTop Controls8 TouchpadsCap Touch Controls
    • Dishwasher Control Features3 Digit Display Cycle Countdown with Bi-Color LED Status Light on door1 "Clean" Light, 1 "Sanitized" Light Cycle Progress IndicatorsLast Cycle MemoryAudible End-of-Cycle SignalControl Lock with 1 Light
    • Dishwasher CyclesAutoSenseHeavy WashNormal Wash1 Hour WashRinse
    • Dishwasher Drying FeaturesNormal, High, OffDry Boost™
    • Dishwasher OptionsDelay Start 1-12 Hr.Child LockStart/CancelBottle JetsSteam + Sani (Certified to NSF Standard 184)Dry Boost™ (High)Dry Boost™ (Normal)Wash TempBoostWash Zone Upper OnlyWash Zone Lower OnlySabbath Mode
    • DispenserRinse Aid with Indicator and Adjustment
    • Exterior StyleTraditional
    • LatchPull with Handle
    • Leveling System4 Leveling Legs
    • Lower RackBall-Tip Tines
    • Number of Cycles5
    • Number of Options11
    • Number of Place Settings16
    • OU CertifiedNo
    • Rack ColorSilver
    • Rack FeaturesBall-Tipped TinesAdjustable Upper Rack1 Piece Silverware Basket with 3 Cell Covers
    • Racking MaterialNylon
    • Racking SystemFull 3rd rack + caddy
    • Sabbath ModeYes
    • SensorClean Sensor
    • Showroom Power ModeYes
    • StyleBuilt-In Top Control
    • Top Rack/3rd Rack3rd Rack + Caddy
    • Tub and Door LinerStainless Steel
    • Tub TypeTall Tub
    • Upper RackPremium Height AdjustableBall-Tip TinesSmooth Glide Upper Rack
    • Wash Arms3 Wash LevelsLowerMiddleUpperBottle JetsBottle Wash JetsDeep Clean Silverware Jets
    • Wash System FeaturesVariable Speed Dual Pumps and MotorsAutomatic Temperature ControlDrain PumpPiranha™ Hard Food Disposer with removable filterAutomatic HotStartBottle Jets (4)
    • Wash System600 Series3-Level
    • Water Filtration System100% Filtration with Piranha Hard Food Disposer and Removable Filter
    • WiFi ConnectOptional (Requires part no. PBX23W00Y0)
    • Calrod Heater Watts800/500
    • Power ConnectionOptional cord kit (GPFCORD - WX09X70910, WX09X70911)
    • Volts/Hertz/Amps120V; 60Hz; 6.6A
    • Labor WarrantyLimited 1-year entire appliance
    • Parts WarrantyLimited 1-year entire appliance
    • Warranty NotesSee written warranty for full details
    • Approximate Shipping Weight112 lb
    • Cabinet Width24 in
    • Height w/ Legs Retracted - Minimum Height33.375 in
    • Height w/Legs Extended - Maximum Height34.625 in
    • Net Weight99 lb
    • Overall Depth24 in
    • Overall Height34 in
    • Overall Width23 3/4 in
