ITEM IS BEING TESTED

This unit is sold. Check for related models on the bottom of the page, or find another Ventilation appliance.

Model
F403623
Brand
Broan
1YR MFG. Warranty
INCLUDED
YR Additional Warranty
Model Inventory Breakdown

Summary

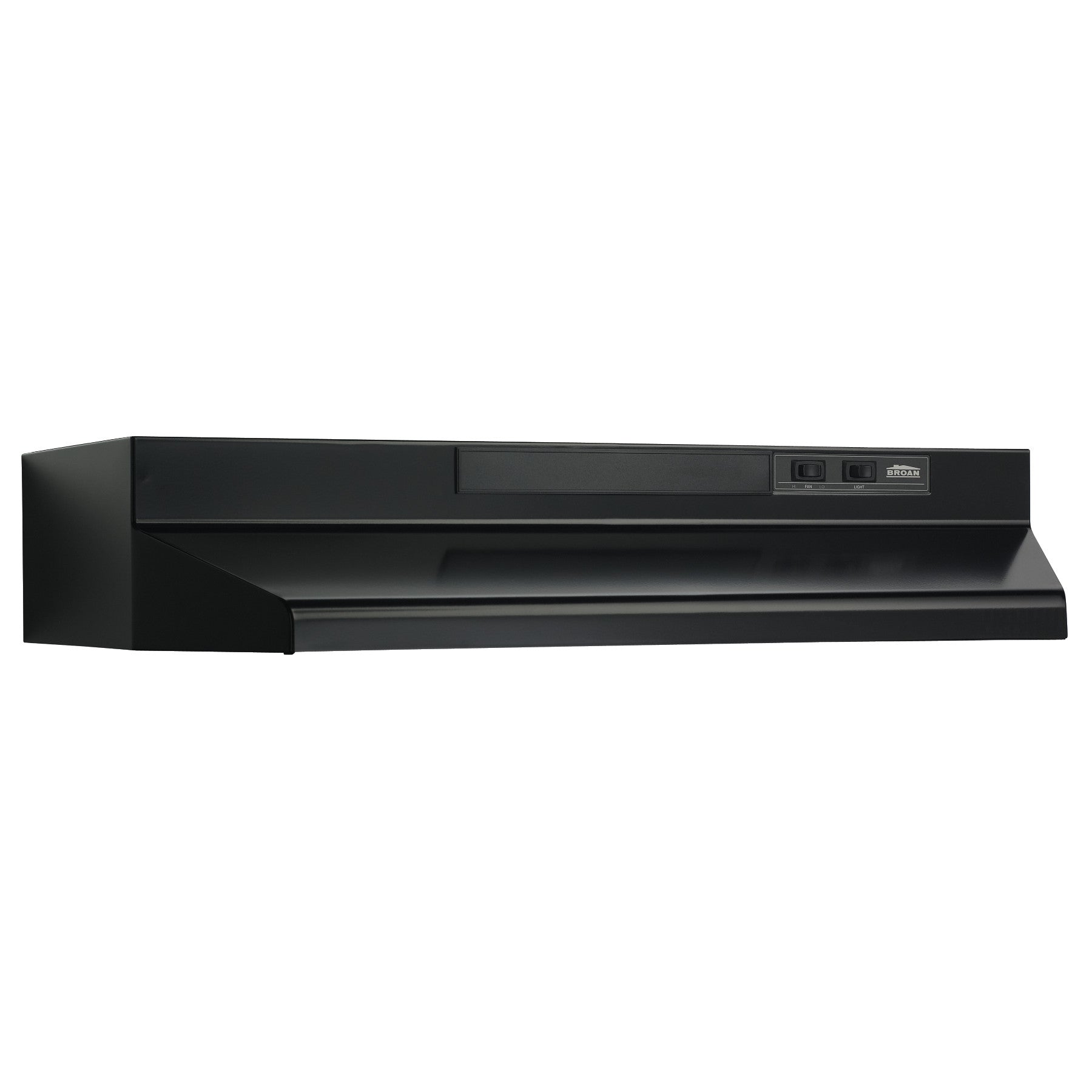

  • Four-way convertible; installs ducted 3-1/4" x 10" (vertical and horizontal), 7" round (vertical) and non-ducted. Non-Ducted Filter sold separately.
  • 160 CFM, 6.5 Sone (3-1/4" x 10" discharge) or 190 CFM (7" round discharge) performance – HVI 2100 Certified

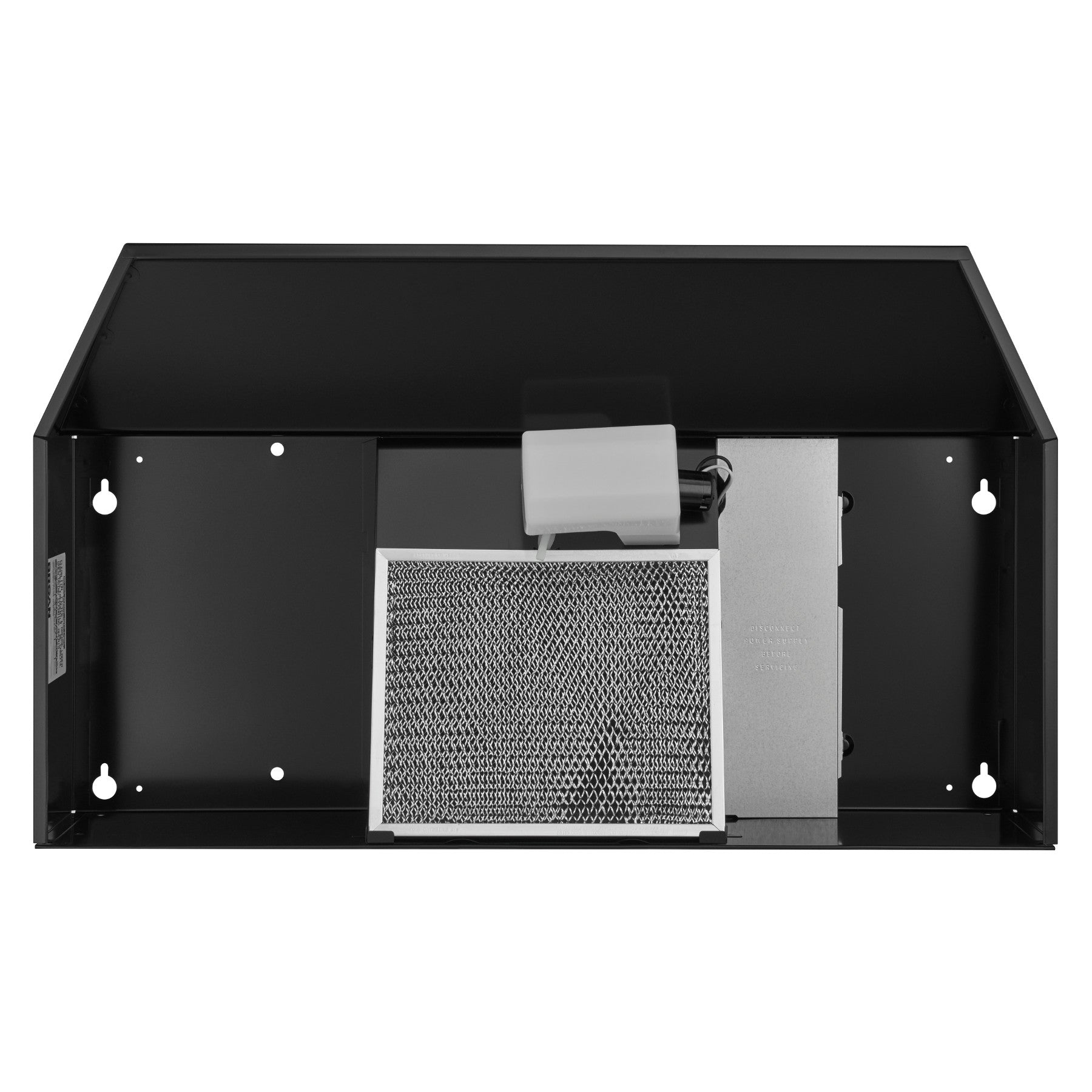

  • Dishwasher-safe aluminum grease filter (model BP29)
  • A protective lamp lens distributes light evenly over the cook-top and accepts up to 75W bulb (bulb not included)
  • Includes 3-1/4" x 10" damper/adapter and 7" round adapter
  • BP87 dampers sold separately
  • This range hood can work in an ADA-compliant application
  • SPECS
    • Color FinishBlack
    • CFM160
    • Sones6.5
    • Product Depth17-1/2"
    • Product Height6"
    • Product Width36"
    • Light Number Of Levels1
    • Light TypeIncandescent
    • Nightlight Or Nightlight SettingNo
    • Light Bulb Wattage75W
    • Light Bulb Recommended TypeA19
    • Light Bulbs IncludedNo
    • Light Bulb Quantity1
    • Filter Quantity1
    • Boost ModeNo
    • Heat Sentry® – Temperature SensorNo
    • Filter TypeAluminum
    • Motor Number Of Speeds2
    • Built In TimerNo
    • Remote Operation CapableNo
    • ADA ComplianceYes
    • Damper IncludedYes
    • Non-ducted Filter IncludedNo
    • Amperage2.5
    • Rated Voltage120
    • Wattage300
    • Switch Control TypeRocker
    • Non-Ducted Recirculation Capable Convertible built-in
    • Warranty1 Year
    • UL ListedYes
    • Duct Connector Size3-1/4" x 10" or 7" Round
    • Duct DirectionHorizontal/Vertical
    • Duct ShapeRectangular or Round
    • Duct Diameter7"
    • Duct Height Rectangular3-1/4"
    • Duct Width Rectangular10"
    • HVI CertifiedYes
    • ENERGY STAR® certified productNo
