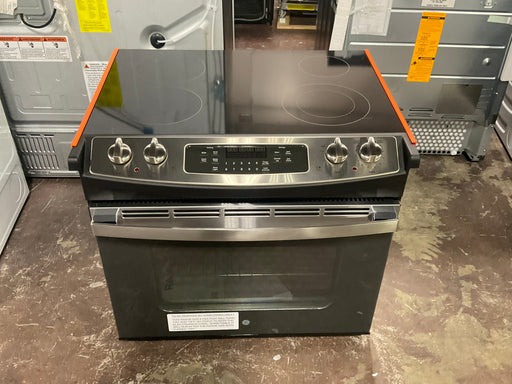

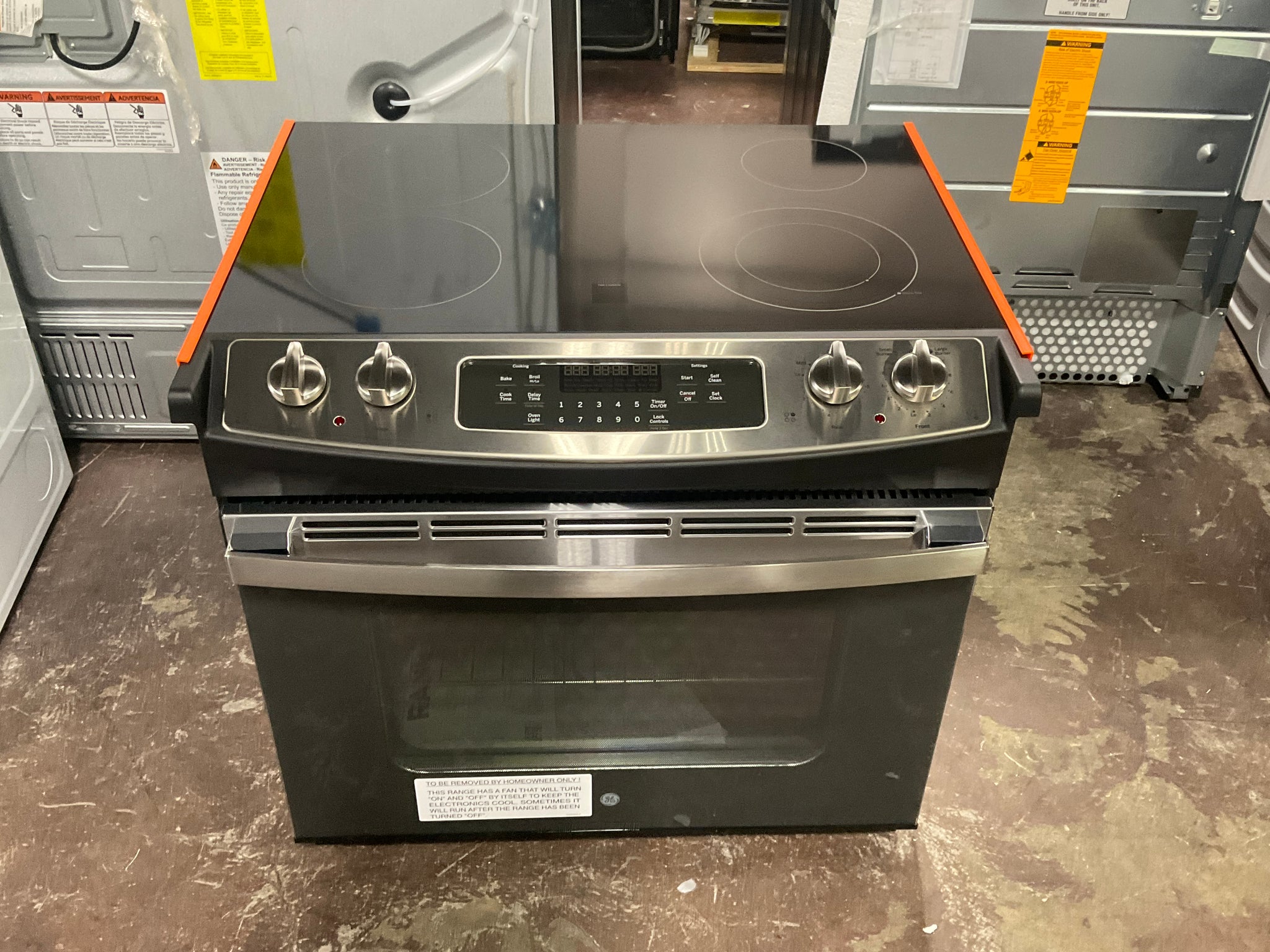

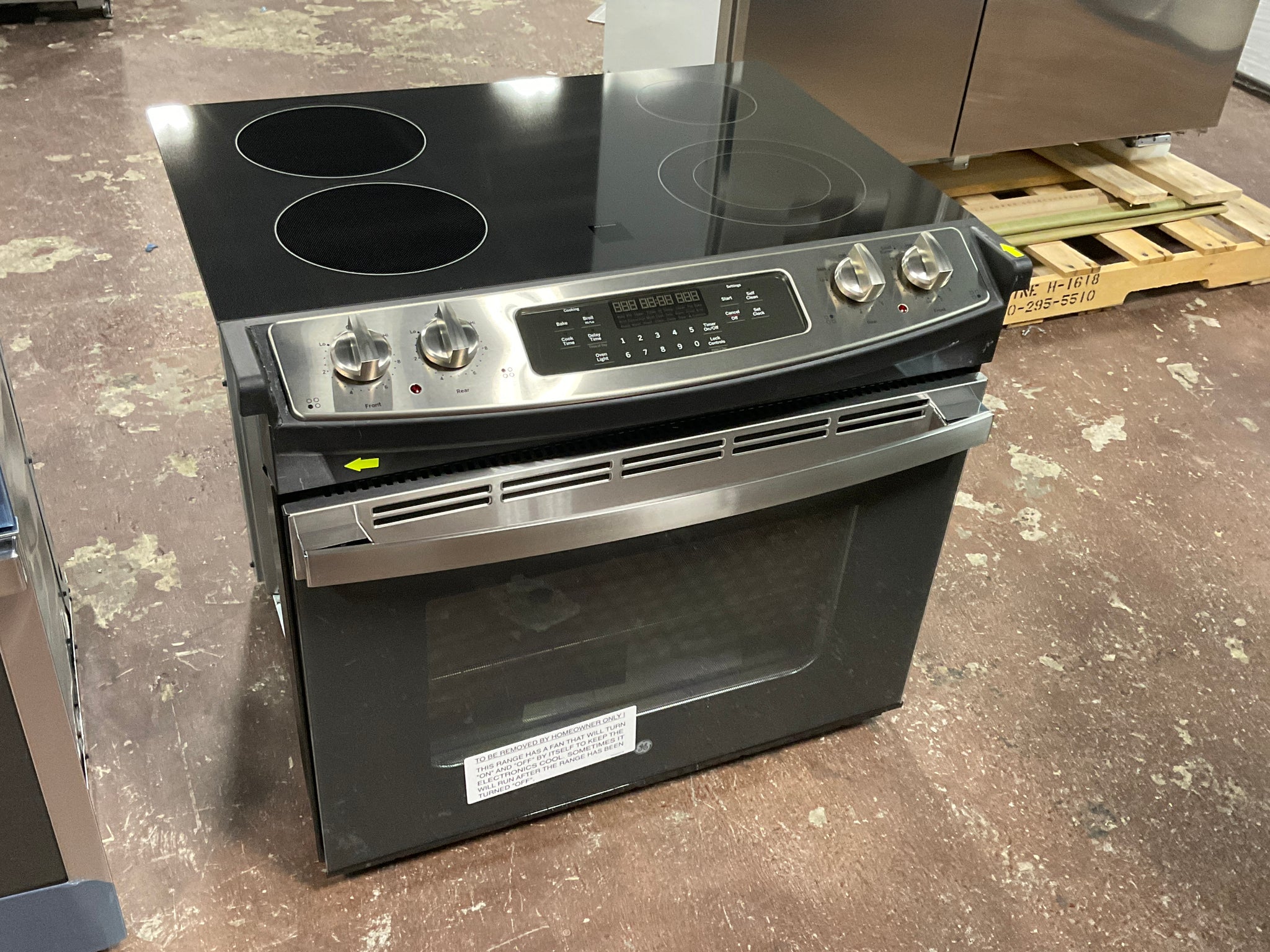

ITEM IS BEING TESTED

This unit is sold. Check for related models on the bottom of the page, or find another Range appliance.

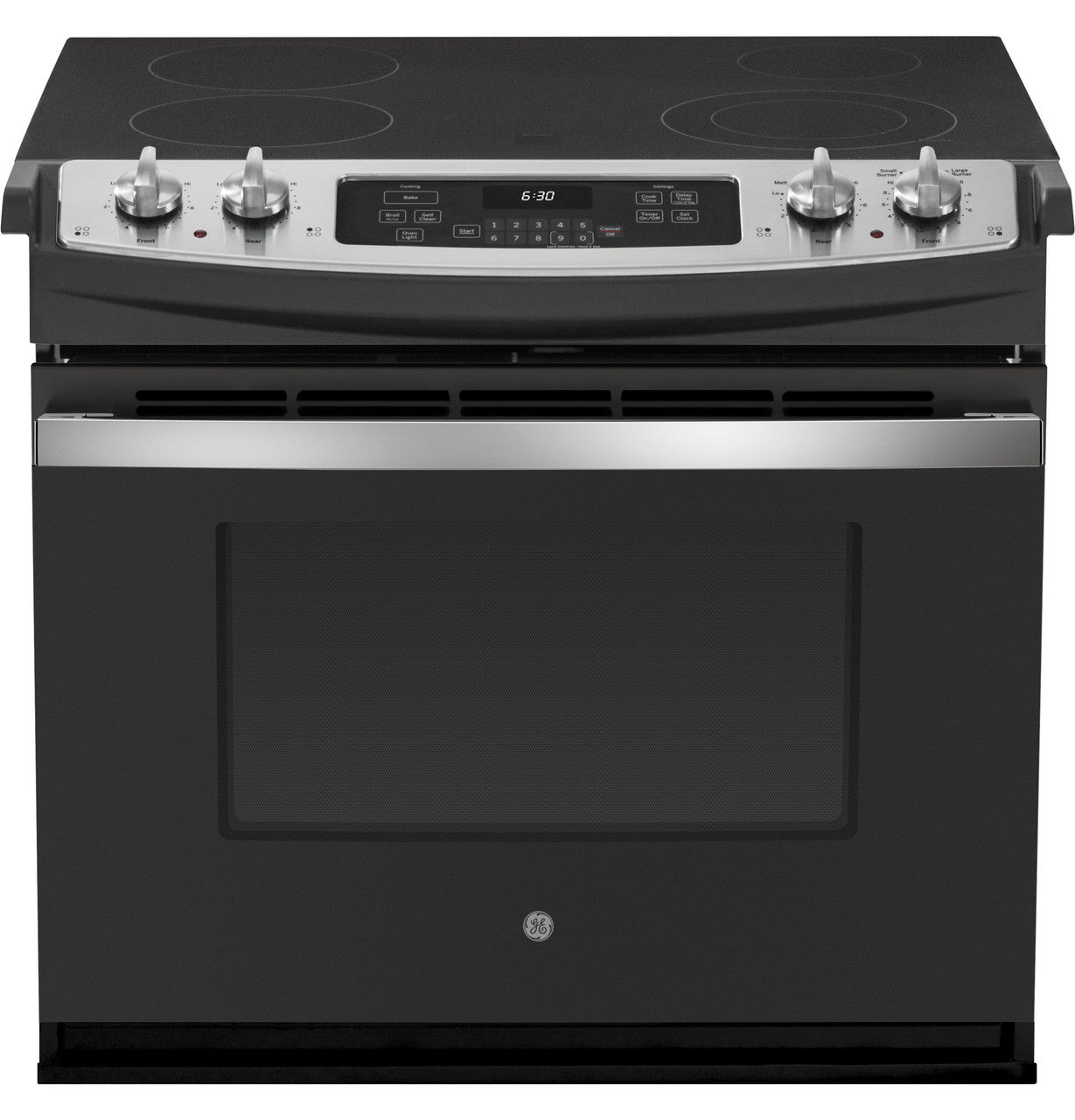

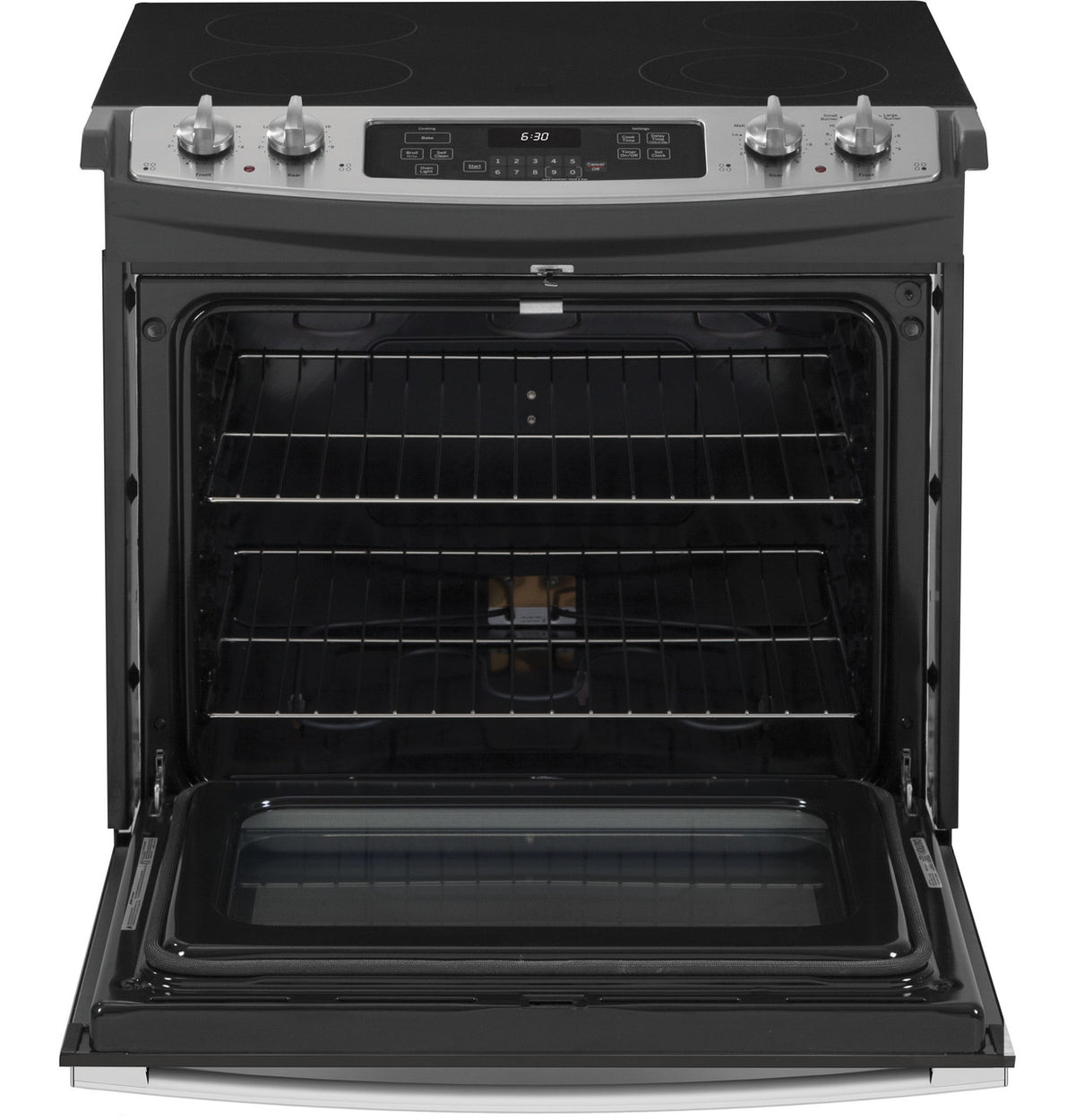

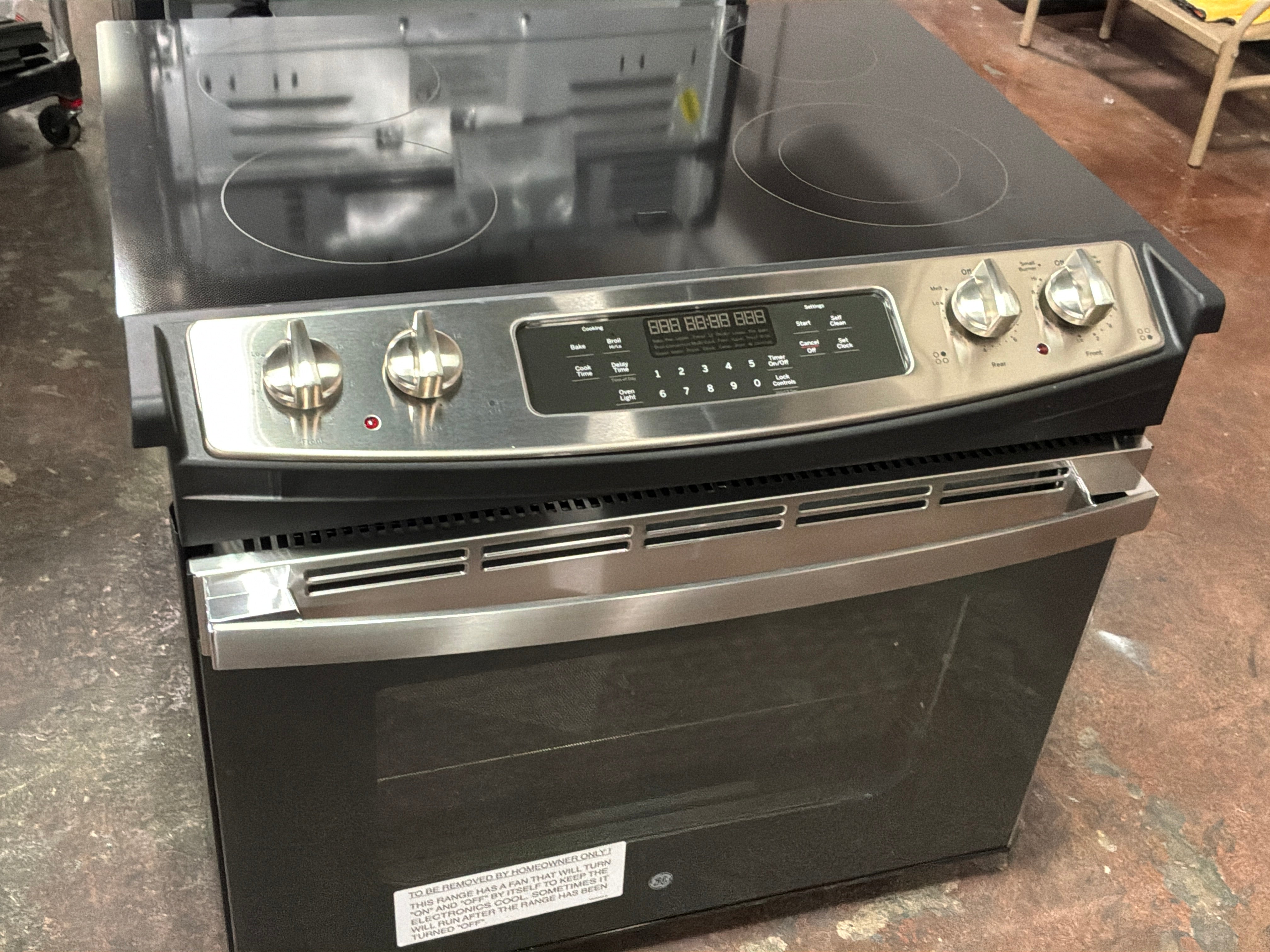

Model
JD630STSS
Brand
GE
1YR MFG. Warranty
INCLUDED
SOLD

Shipping & Returns

Ask us a Question

Summary

  • 9"/6" Power Boil element
  • Self-clean oven

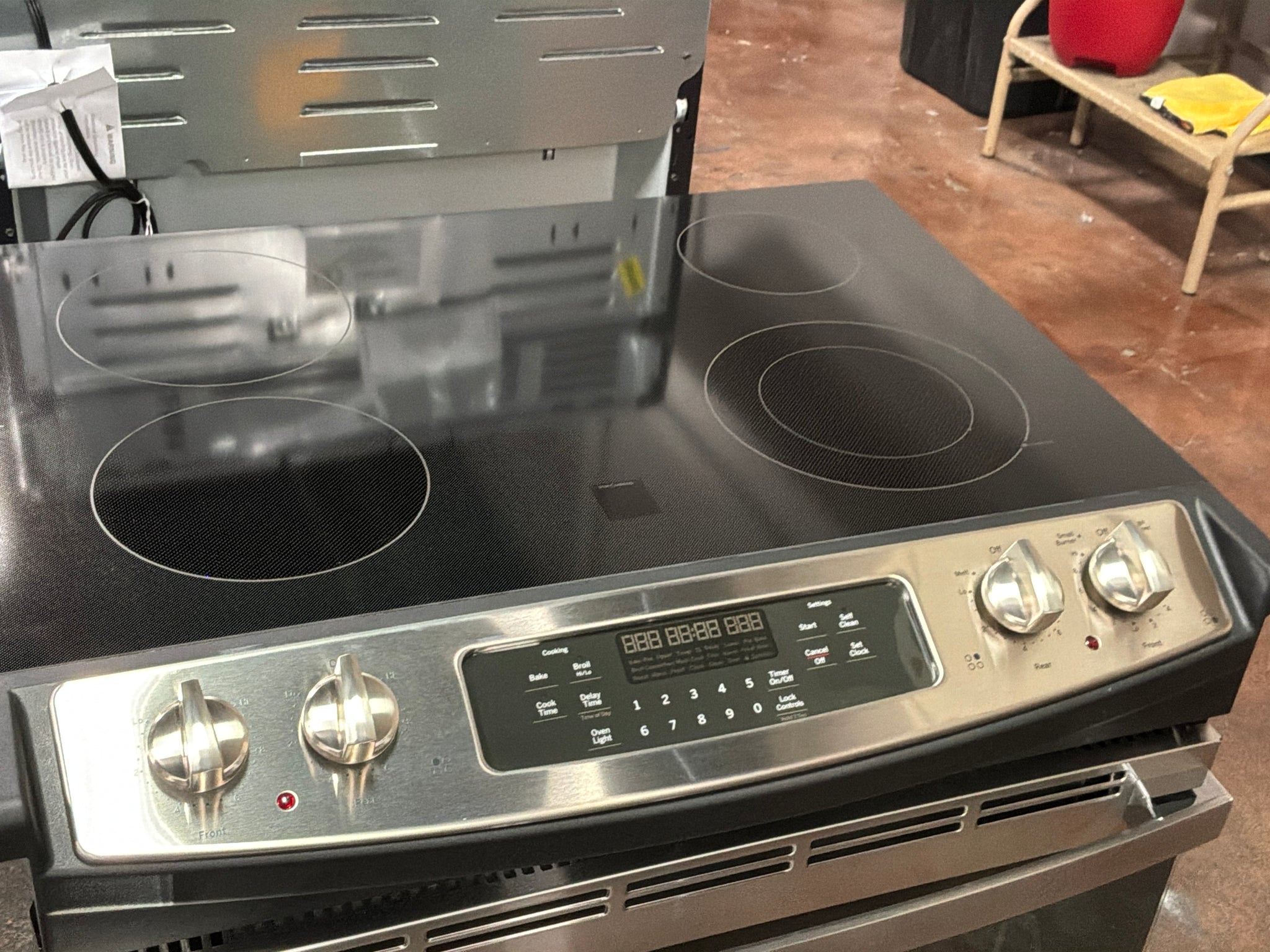

  • Ceramic glass cooktop
  • Dimensions: 27 H x 31.25 W x 28.5 D
  • APPEARANCE
    • Color AppearanceStainless Steel/Gray
    • Control KnobsStainless Steel Appearance
    • HandleDesigner Style
    • Handle ColorStainless Steel
    • InstallationFlush Appearance
    • Oven Door FeaturesBig View Oven Window
      Glass Door
  • CAPACITY
    • Total Capacity (cubic feet)4.40 cu ft
  • FEATURES
    • Control LocationFront
    • Control TypeDigital Temperature Display
      Electronic
      Touchpads
    • Cooking TechnologyTraditional
    • Cooktop Burner TypeRadiant
      Smoothtop
    • Cooktop SurfaceOverhanging Cooktop
      Gray Patterned Ceramic Glass

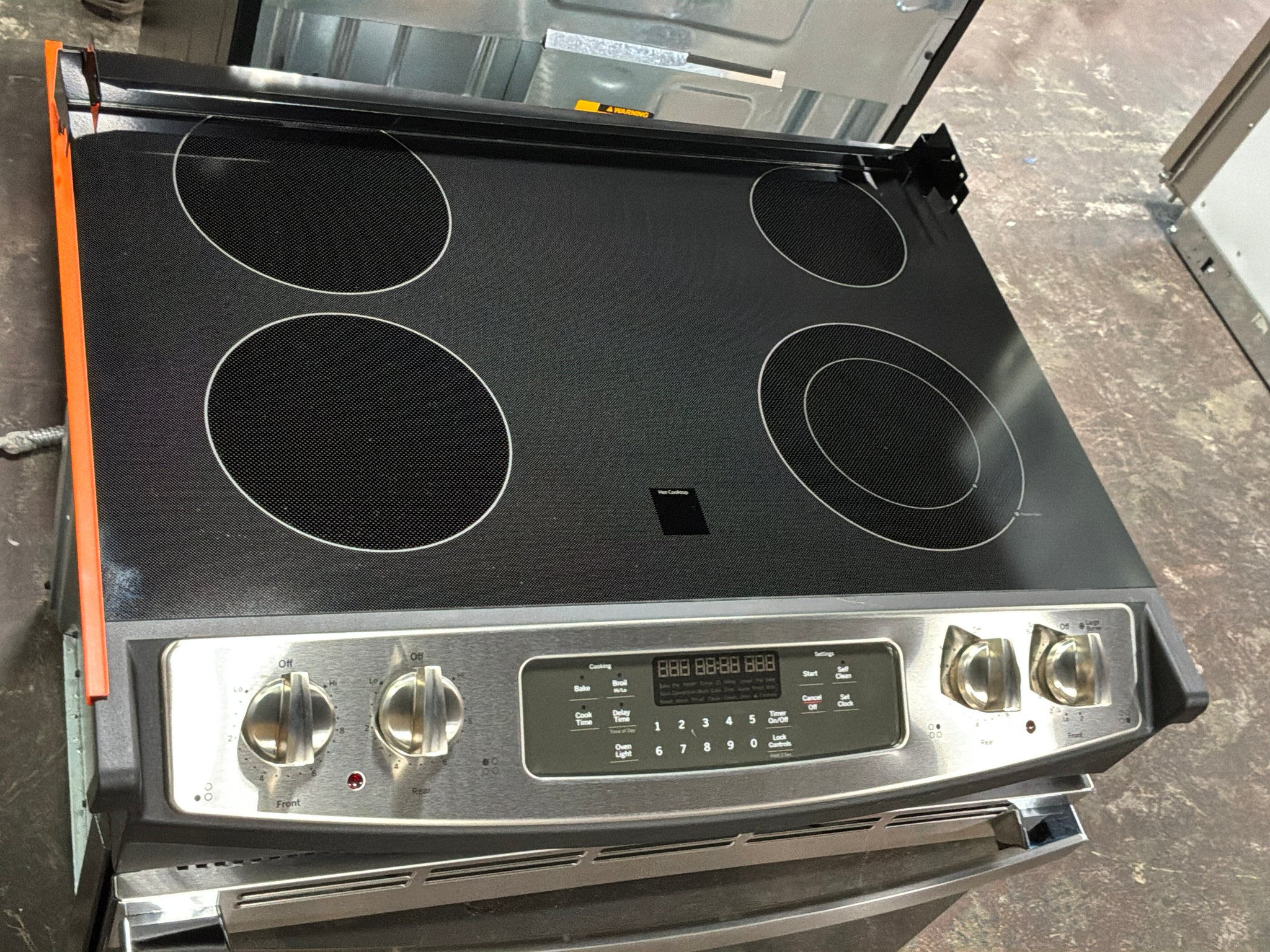

    • Cooktop TypeRadiant Smoothtop
    • Element - Left Front8" 2000W
    • Element - Left Rear8" 2000W
    • Element - Right Front9"/6" 3000W Power Boil
    • Element - Right Rear6" 1200W
    • Fuel TypeElectric
    • Heating Element "ON" Indicator Light2
    • Hot Surface Indicator Lights4
    • Interior Oven Light1 Incandescent
    • Melt SettingYes
    • OU CertifiedNo
    • Oven Cleaning TypeSelf-Clean
    • Oven Control FeaturesAudible Preheat Signal
      Auto Oven Shut-Off with Override
      C° or F° Programmable
      Sabbath Mode
      Control Lock Capability
      Delay Bake Option With Cook & Hold
      Electronic Clock & Kitchen Timer
    • Oven Features6-Pass Bake Element
      6-Pass Broil Element

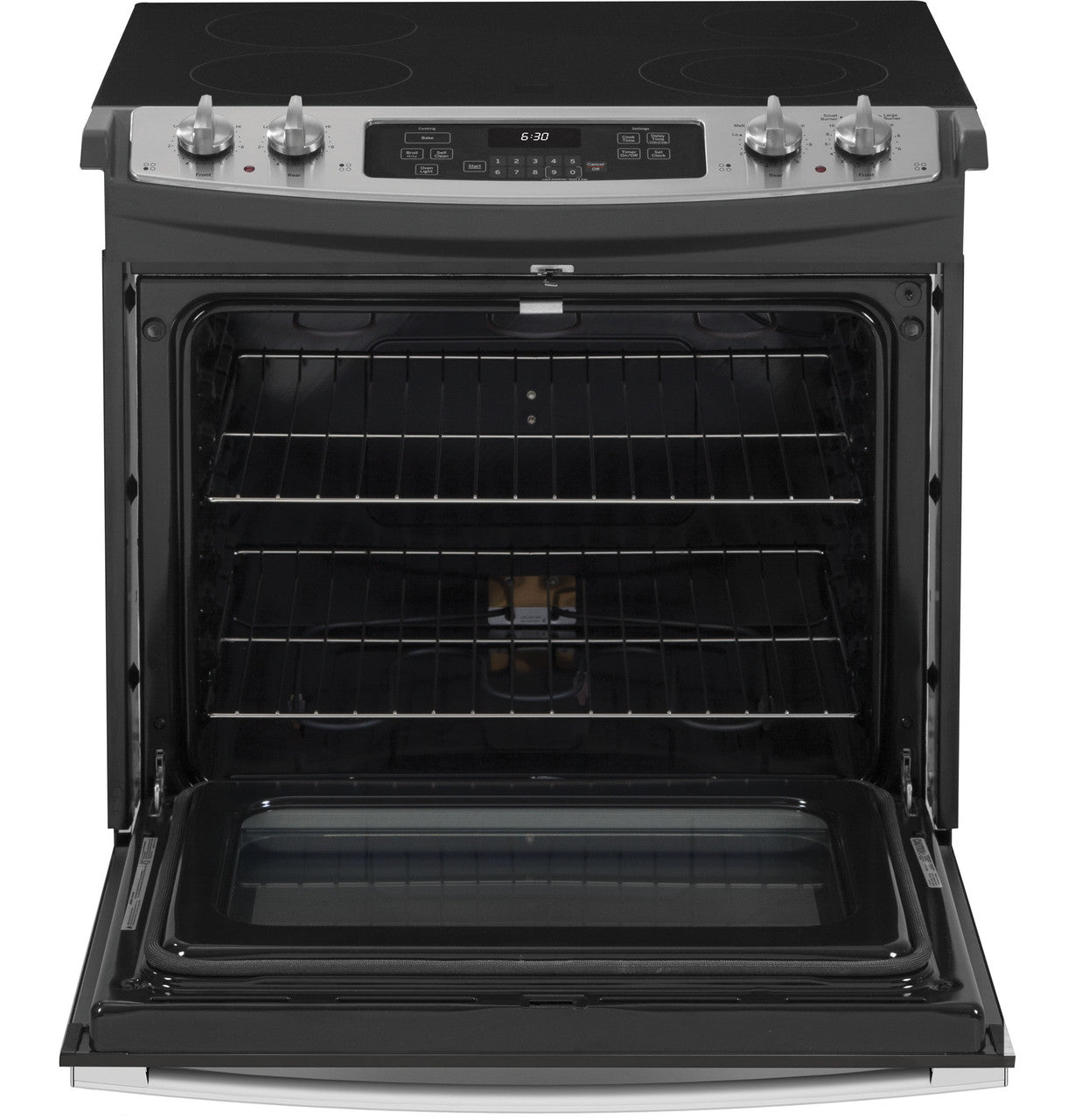

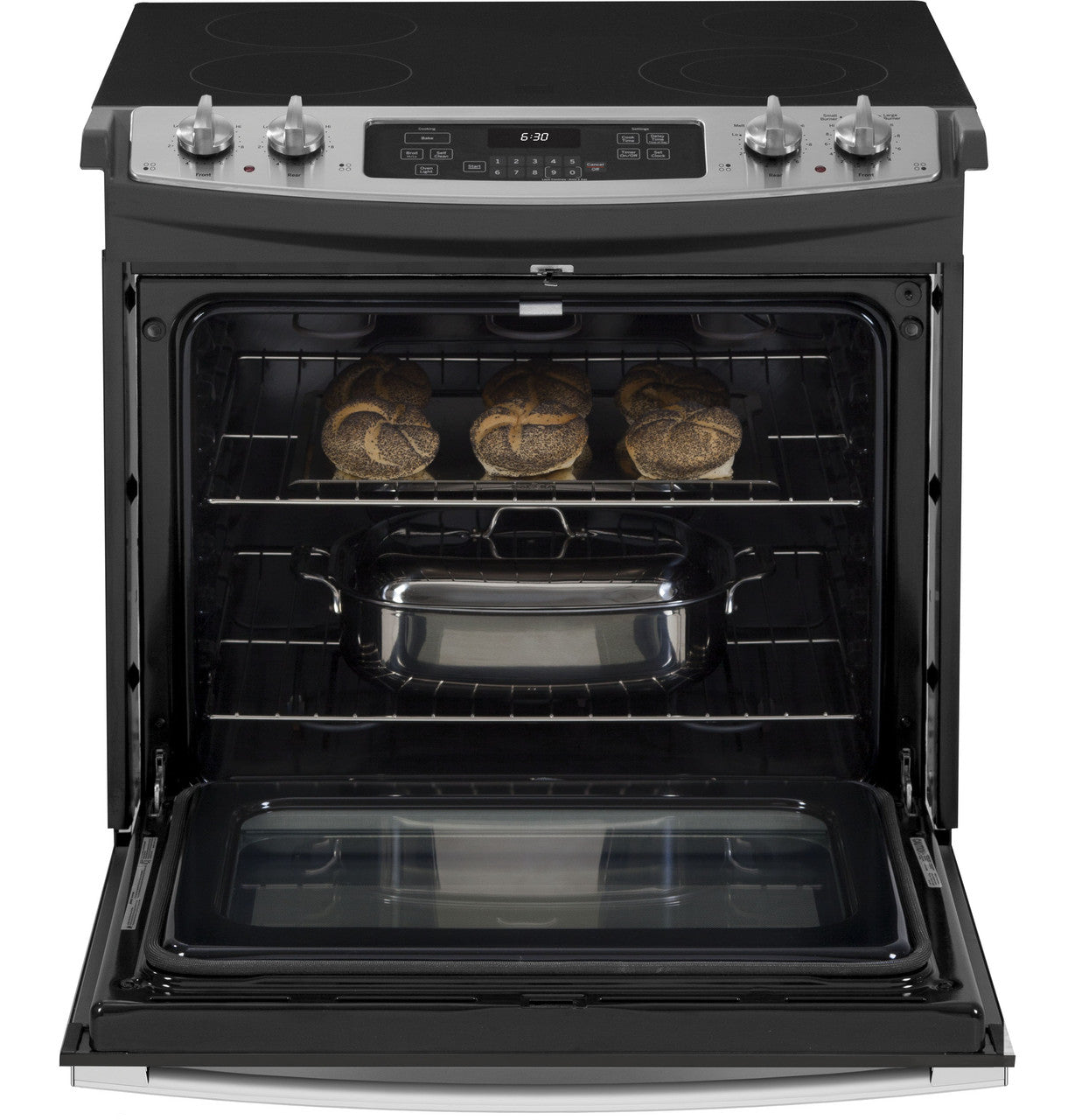

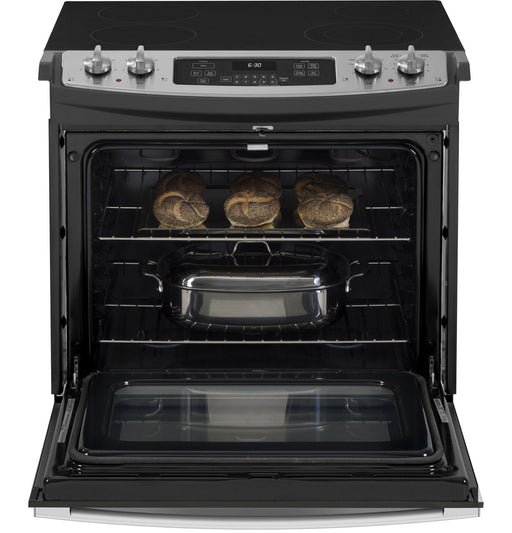

    • Oven Rack Features2 Oven Racks
    • Oven Rack Positions (Single or Upper/Lower)7
    • Power Boil BurnerYes

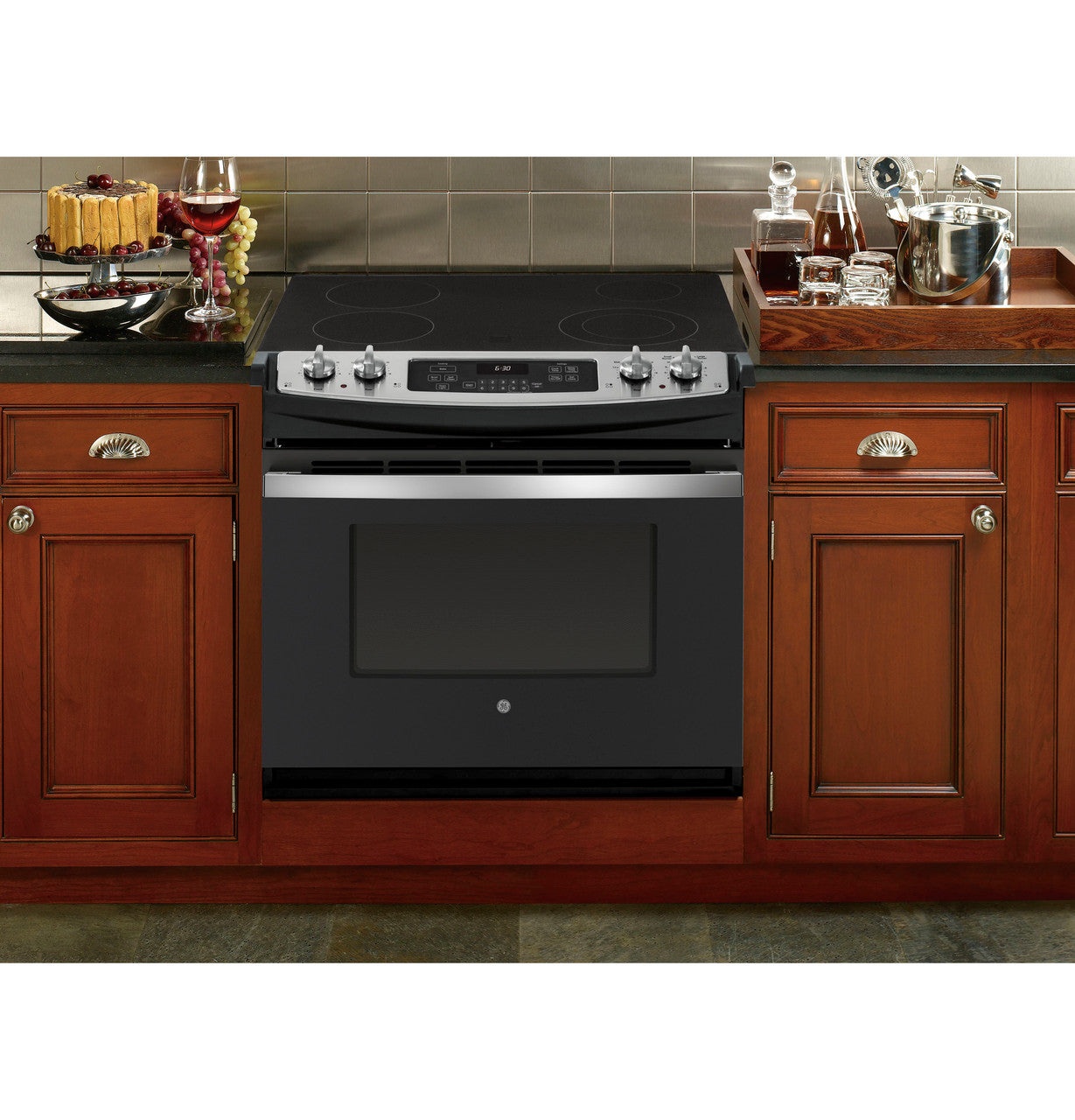

    • Product TypeDrop-In
    • Sabbath ModeYes
    • Self-Clean Oven Door LockAutomatic
  • POWER / RATINGS
    • Amp Rating at 208V40
    • Amp Rating at 240V40
    • Bake Wattage3410W
    • Broiler Wattage3420W
    • Electrical Requirements208/240V ; 60Hz ; 40A
    • Hertz60
    • KW Rating at 208V8.9
    • KW Rating at 240V11.9
  • WARRANTY
    • Labor WarrantyLimited 1-year entire appliance
    • Parts WarrantyLimited 1-year entire appliance
    • Warranty NotesSee written warranty for full details
  • WEIGHTS & DIMENSIONS
    • Approximate Shipping Weight184 lb
    • Cabinet Opening30 in
    • Cabinet Width30 in
    • Cooktop Width31.25 in
    • Depth with Door Open44.625 in
    • Depth Without Handle25.75 in
    • Net Weight163 lb
    • Oven Interior Dimensions (W x H x D) (in.)24 x 17-1/2 x 18-1/4
    • Overall Depth28.5 in
    • Overall Height27 in
    • Overall Width31.25 in
